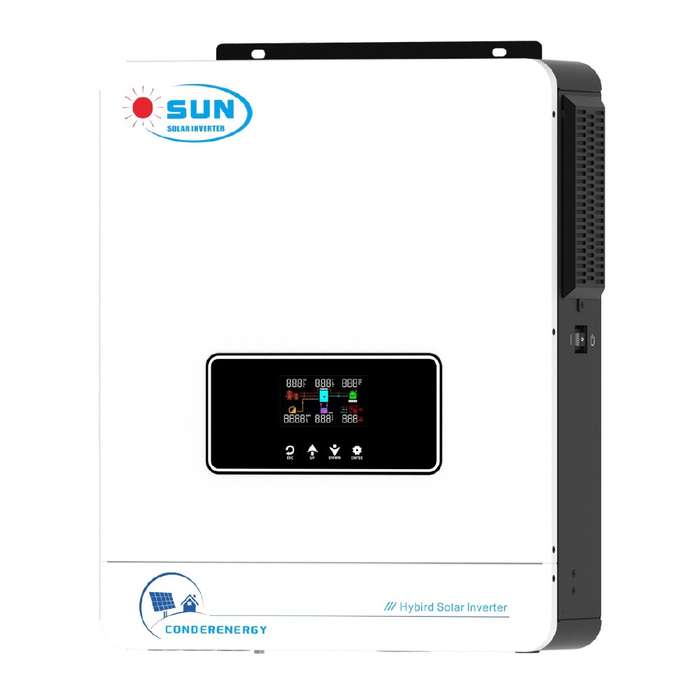

Conderenergy S-2562 Pure Sine Wave Hybrid Inverter - 6.2Kw / 48V / 6200W / MPPT

Please Note: Parallel connections are not supportedFeaturesSingle Phase Operation: 1-phase operation for PV input.High Efficiency: Up to 98% DC to AC conversion efficiency.Pure Sine Wave Output: Ensures clean power output.Wide MPPT Voltage Range: 60VDC to 450VDC.Multiple Communication Ports: RS232, RS485, WIFI, GPRS, Lithium battery interface.Supports Dual Load Output: Can handle two separate load outputs.Auto Restart and Start-up Voltage: Automatically restarts and supports specified start-up voltages.SpecificationsPV Input (DC)Maximum PV Input Power: 6500WNominal DC Voltage/Maximum DC Voltage: 360VDC/500VDCStart-up Voltage / Initial Feeding Voltage: 60VDC/90VDCMPPT Voltage Range: 60VDC to 450VDCMaximum Input Current: 1/22AGrid Output (AC)Rated Output Power: 6200W/6200VANominal Output Voltage: 220/230/240VACOutput Voltage Range: 195.5V to 253VACNominal Output Current: 27.0APower Factor: >0.99Maximum Conversion Efficiency (DC/AC): 98%Battery Mode Output (AC)Nominal Output Voltage: 220/230/240VACOutput Waveform: Pure sine waveEfficiency (DC to AC): 94%AC InputAC Start-up Voltage / Auto Restart Voltage: 120-140VAC/180VACAcceptable Input Voltage Range: 90-280VAC or 170-280VACMaximum AC Input Current: 40AMaximum AC Charging Current: 40APhysical Dimensions420mm x 350mm x 110mm500mm x 415mm x 180mmNet Weight: 8.0kg / 8.9kgGross Weight: 9.0kg / 10.0kgEnvironmentOperating Temperature: -10°C to 50°CHumidity: 5% to 95% Relative Humidity (Non-condensing)Battery & ChargerNominal DC Voltage: 48VDCMaximum Solar Charging Current: 120AMaximum AC Charging Current: 100AMaximum Solar+AC Charging Current: 120ACommunication PortAvailable Ports: RS232/RS485/WIFI/GPRS/LITHIUM BATTERYTwo-Load Output PowerFull Load: 2067WMaximum Main Load: 6200WMaximum Second Load (battery mode): 2067WMaximum Load Cut Off Voltage: 52VDCMaximum Load Return Voltage: 54VDCCompliance and StandardsSafety: CE Standard Compliance
