Cudy 24-port GbE PoE Unmanaged Switch with 2x GbE and 2x SFP Uplink Ports GS1026PS2

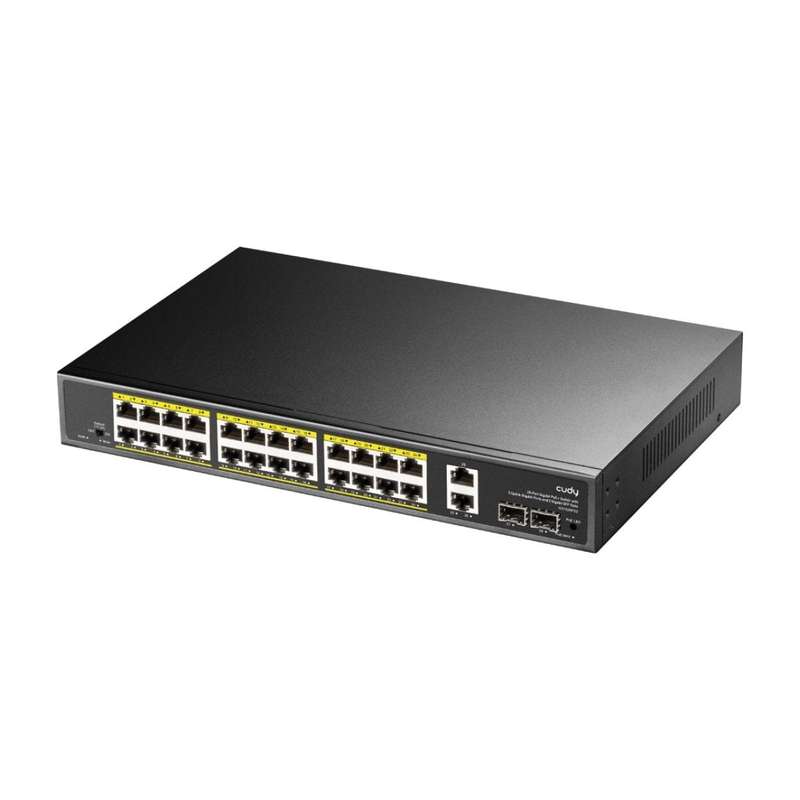

A rack-mounted 26-GbE, 2-SFP PoE switch with a 300W power supply and a silent cooling system.

Features

• Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab Standard
• Ethernet Ports support 10/100/1000M self- adaptive
• Extend transmission to 250 m for ports 17~24 in Extend mode
• POE priority from ports 1~24 enabled by default
• Watchdog automatically reboots unresponsive clients connected to ports 1~24 to improve system stability under Extend mode
• Flow control full-duplex adopts IEEE 802.3x standard, half-duplex adopts back pressure standard
• Panel indicator monitors status and helps failure analysis
• Display PoE budget usage with PoE status light
• Display PoE powering status at each port
• Surge Protection: Max 4KV common / 2KV differential protection
• ESD Preotcion: Max 8KV air / 6KV contact protection

Technical Specification

Gigabit RJ45 PoE Ports: 24

Gigabit SFP Slots: 2

Gigabit RJ45 Ports: 2

Max Power on a Single PoE Port: 30W

PoE Port Notes: PoE ports support 802.3at/af standards.

Extend Mode Ports: #17 ~ #24

Power Input: AC Inlet

Physical Buttons

• Default/Extend DIP switch
• PoE LED Toggle

Physical Buttons Note: The PoE Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client.

MAC Address Table: 8192

Max Switching Capacity: 56 Gbps

Max Forwarding Rate: 41.664 Mpps

Packet Buffer: 3 Mbit

Power Supply: 300W

Max Power Consumption: 300W

Max Power Excluding PoE: 20W

Installation

• Desktop
• Rackmount via Brackets

Package Content

• GS1026PS2
• Power Cord

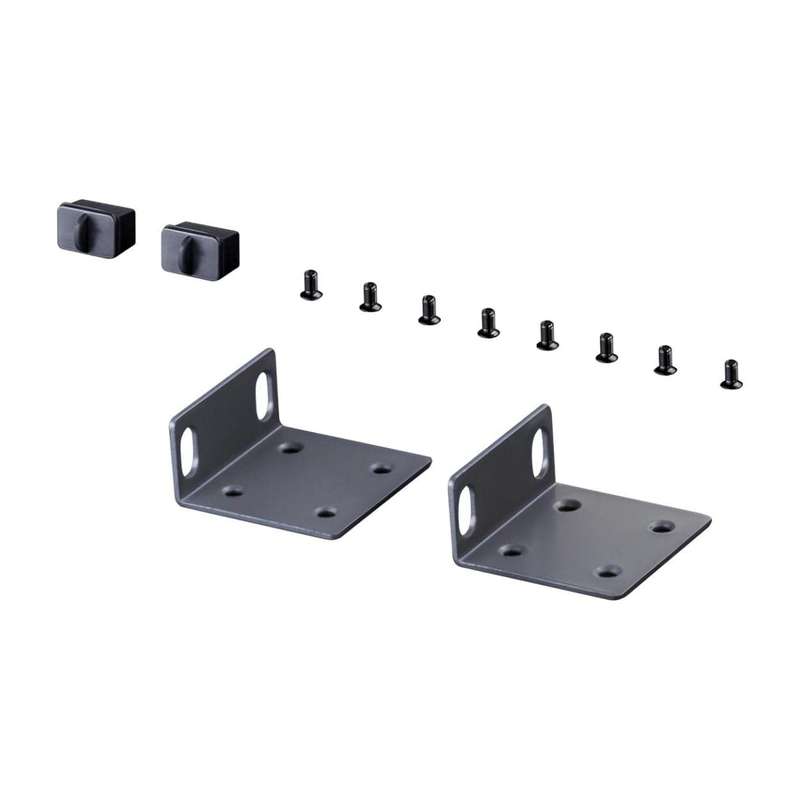

• Mounting Kit
• Installation Guide
