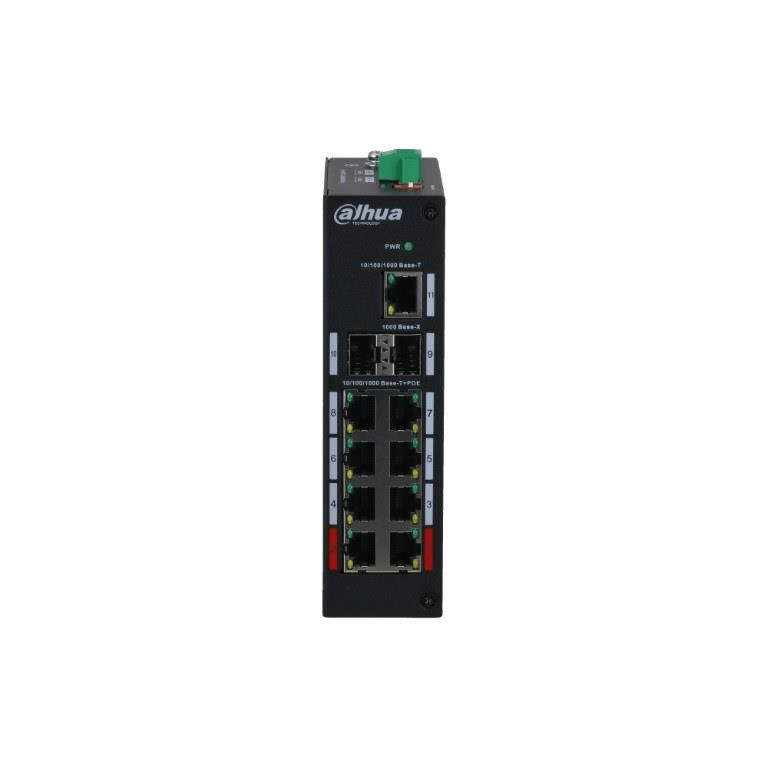

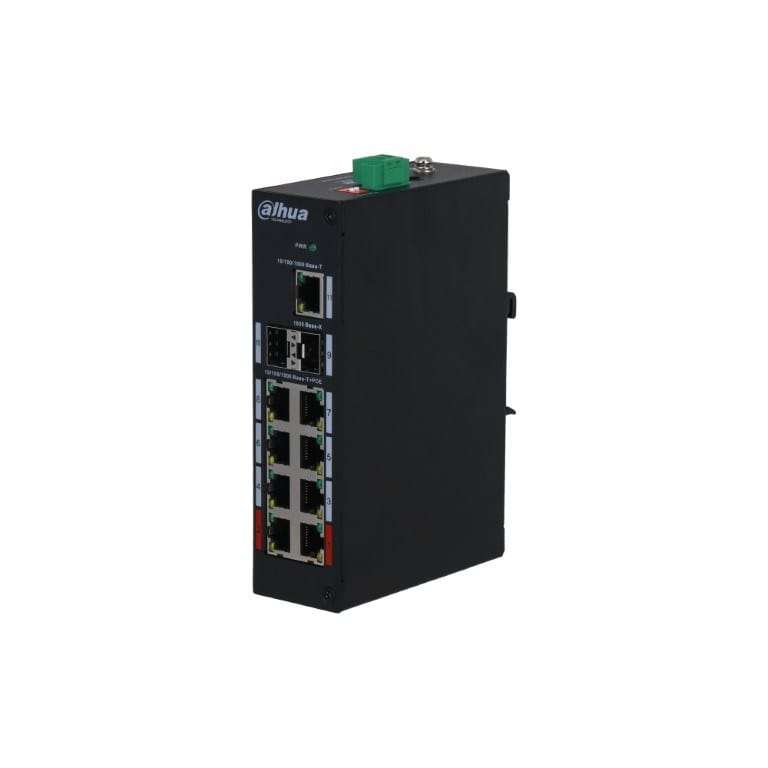

Dahua PFS3211-8GT-120 8-port PoE GbE Unmanaged Desktop Switch with 1x GbE Uplink and 2x SFP Ports
DH-PFS3211-8GT-120 is an unmanaged Hardened PoE Switch with 8 × 10/100/1000 Mbps PoE Ports. It provides 8 × 10/100/1000 Mbps Ethernet ports , 2 × 1000 Mbps uplink SFPs and 1 ×10/100/1000 Mbps Ethernet uplink ports . The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 120W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Features
- Intelligent PoE
- 8-pin assignment PoE power supply
- Long distance PoE
- PoE watchdog
- BT 90W
- All-giga ports
- Wide working temperature
Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
BT 90W
The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port. Suitable for powering high-power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).
8-pin Assignment PoE Power Supply
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
Technical Specification
Product: DH-PFS3211-8GT-120
Data Transmission Port
-
Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
-
Port 9-10: 2 × SFP 1000 Mbps (uplink)
-
Port 11: 1 × RJ-45 10/100/1000 Mbps (uplink)
PoE Power Consumption:
-
Port 1-2 90W
-
Port 3-8 30W
-
Total 120W
Standard: IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3az/IEEE 802.3ab
Power Consumption
-
Idling: 5 W
-
Full load: 120 W
PoE Protocol: IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt
Power Supply Pin: 1,2,4,5 (V+),3,6,7,8 (V-)
Long Distance: 250 m long distance PoE transmission
PoE Power Management: Yes
PoE Watchdog: Yes
Switching Capacity: 33 Gbps
Packet Forwarding Rate: 16.37 Mpps
Packet Buffer Memory: 1.75 Mbit
Lighting Protection
-
Common mode: 4 kV
-
Differential mode: 2 kV
ESD Protection
-
Air discharge: 8 kV
-
Contact discharge: 6 kV

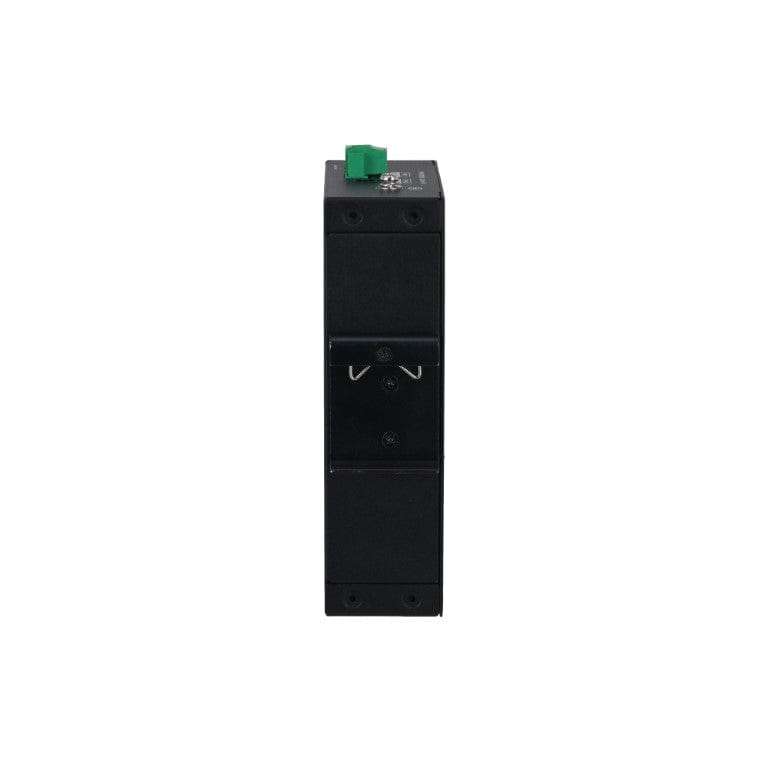

Wall-mount Installation: Yes
Anti-theft Lock Hole: Yes
Power Input: 48 V - 57 V DC
