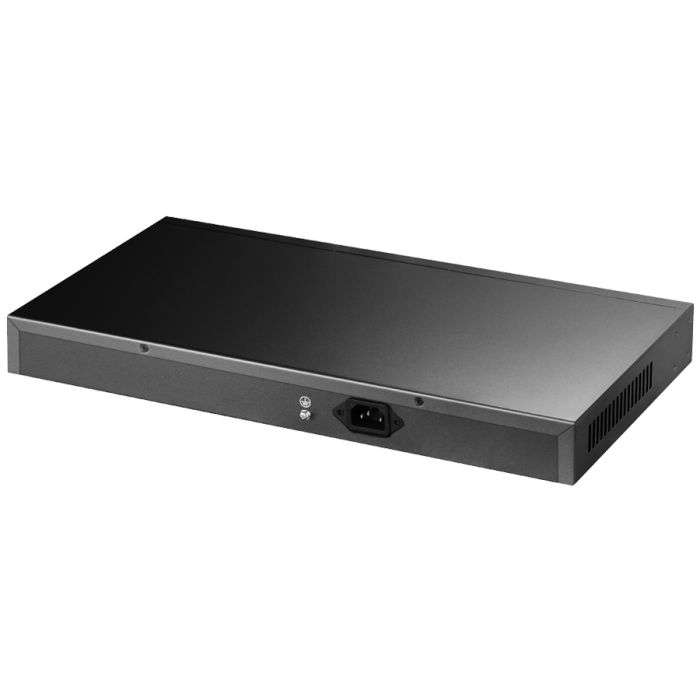

Cudy's CD-GS1028PS is a 24 Port Gigabit switch with 24x 802.3af/at PoE ports and 2x SFP Uplink ports. The switch offers a 290W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-24 while Extender mode increases the transmission distance on ports 1-24 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port.
Specifications
Ethernet Ports: 24x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 10W
Mounting: Rack-Mount
Operating System: None
Operating Temperature: 0C to 40C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 410 x 190 x 50mm
Weight: 2.1kg
