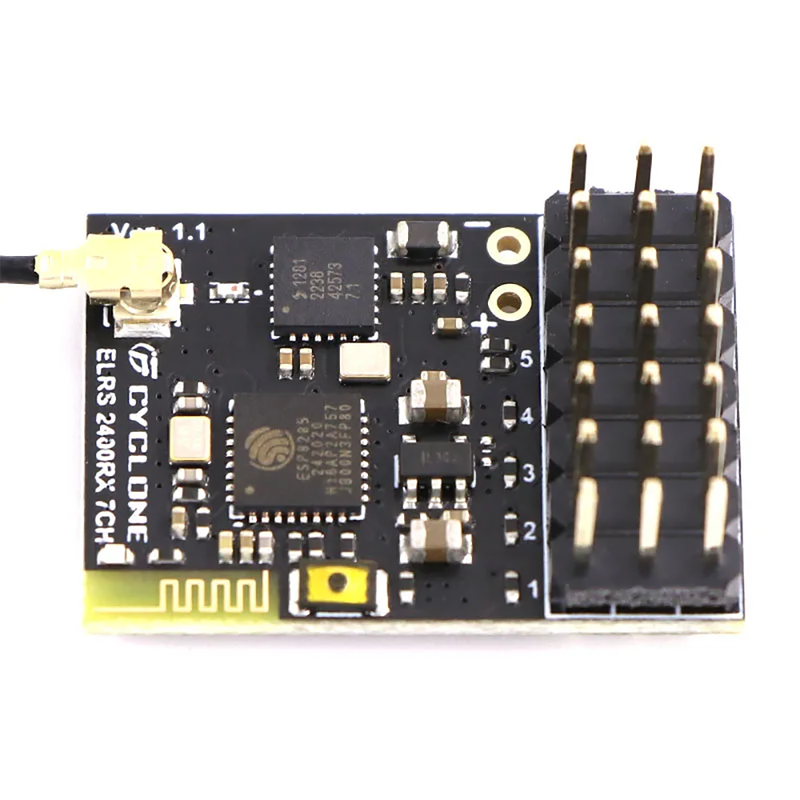

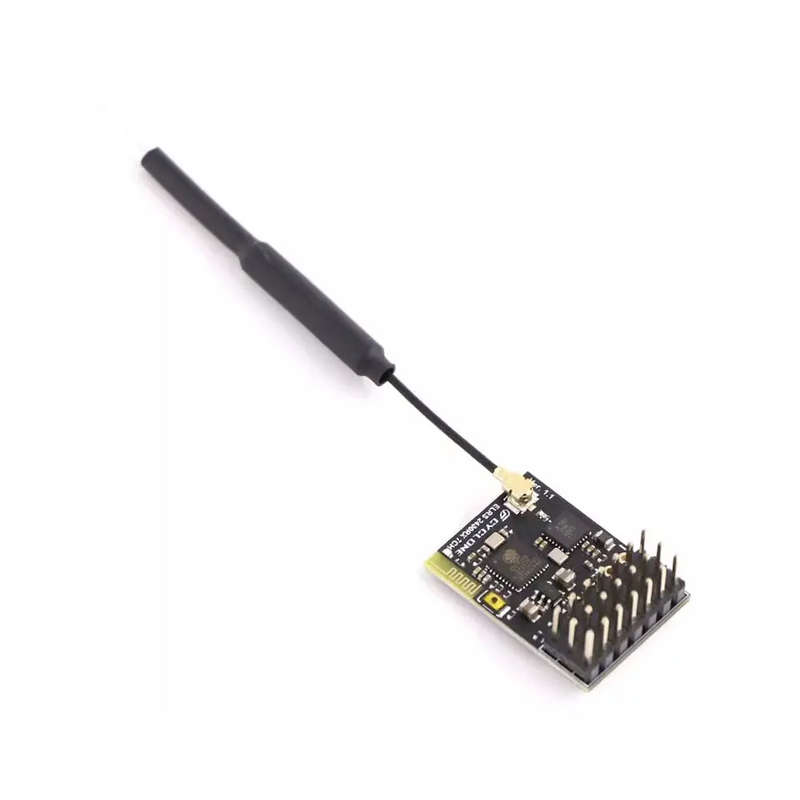

CYCLONE ELRS 2.4GHz 7CH PWM RX Receiver CRSF Protocol for RC FPV Racing Drone
Description:
Item: ELRS 2.4G PWM7 RX
Firmware Name: DIY_2400_RX_PWMPEXAntenna: IPEX MHF+T antenna/copper tube antennaMicrocontroller chip: ESP8285RF chip: SX1280/SX1281Return power: 12.5dbm/17mWFirmware version: ExpressLRS V3.2Circuit board size: 18.5mm * 26mmWeight: 3.5gNumber of channels: 7CHWorking voltage: 4~6 VProtocol: PWM/CRSF switchable
7-channel full scale ELRS 2.4G receiverSwitchable CRSF bus mode without firmware reset
Note: Factory firmware 3.2.0. If your tuner firmware is lower than version 3.0, it is recommended to update to 3.2.0. You can use 7 PWM full scale channels, while 2. x only has 4 full scale channels
PWM 6CH/7CH CRSF switching does not require firmware reset, and can be easily switched as follows
