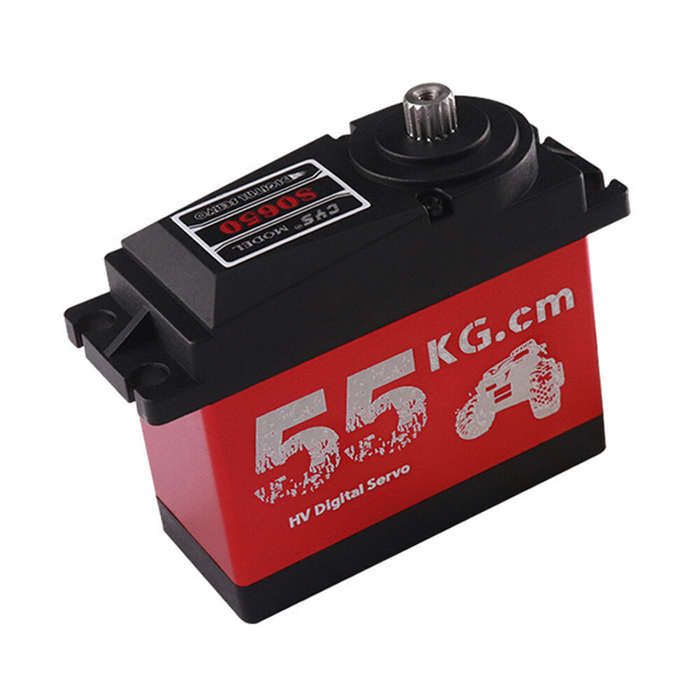

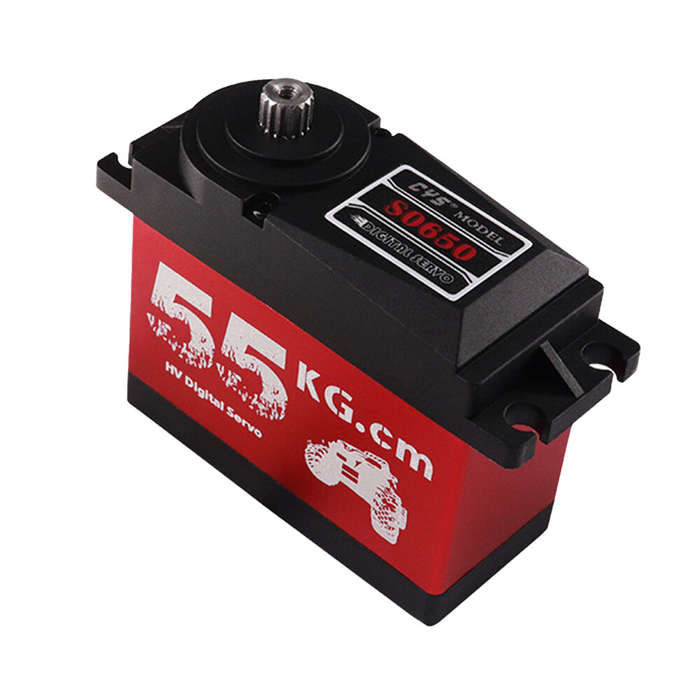

Specification:
Type: Digital
Weight: 202± 1 g
Size: 66*30*56mm
Control System: (+)Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0~7.4Volts
Operating Temperature Range: (-)10 to +50 degree C
Operating Speed (6.0V): 0.13sec/60° at no load
Operating Speed (7.4V): 0.11sec/60° at no load
Stall Torque (6.0V): 52kg.cm
Stall Torque (7.4V): 55kg.cm
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 120mA no load operating
Current Drain (7.4V): 20mA/idle and 150mA no load operating
Stall Current: 10A/13.4A
Dead Band Width: 4usec
Motor Type: NdFeB motor
Bearing Type: Dual Ball Bearing
Horn gear spline: 15T
Gear Type: Steel
Connector Wire Length: 300mm
Wire info:
Brown/Black = Negative
Red = Positive
Orange/White = Signal
