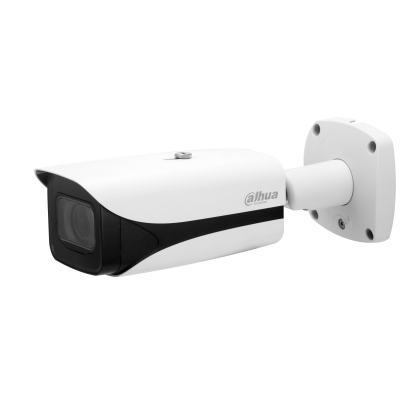

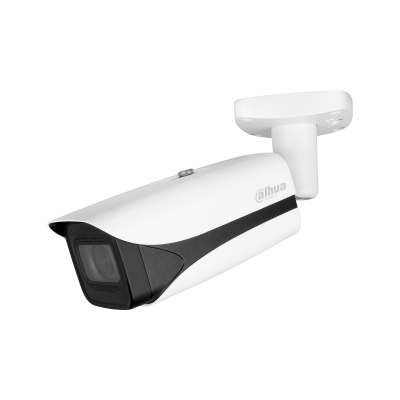

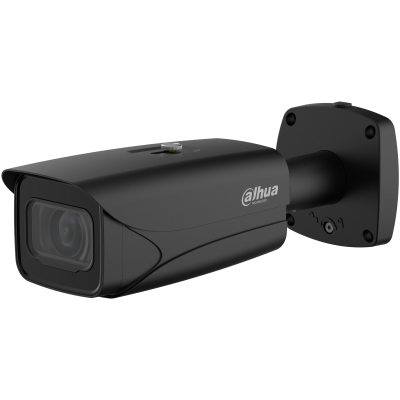

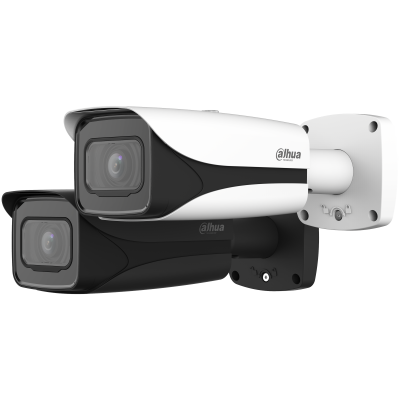

Dahua 2MP Bullet 60m IR 2.7-13mm
> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920×1080) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
Camera |
Image Sensor | 1/2.8" CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
ROM | 4 GB |
RAM | 1 GB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.0007 lux@F1.5 (Color, 30 IRE)
0.0004 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on) |
S/N Ratio | >56dB |
Illumination Distance | Up to 60 m (196.85 ft) (IR) |
Illuminator On/Off Control | Auto; Zoomprio; Manual |
Illuminator Number | 4 (IR LED) |
Angle Adjustment | Pan: 0°360°
Tilt: 0°90°
Rotation: 0°360° |
Lens |
Lens Type | Motorized vari-focal |
Lens Mount | 14 |
Focal Length | 2.7 mm13.5 mm |
Max. Aperture | F1.5 |
Field of View | H: 109°30°; V: 56°17°; D: 131°35° |
Iris Control | Auto |
Close Focus Distance | 0.8 m (2.62 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 44.1 m (144.69 ft) | 17.7 m (58.07 ft) | 8.8 m (28.87 ft) | 4.4 m (14.44 ft) |
T | 144.8 m (475.07 ft) | 57.9 m (189.96 ft) | 29.0 m (95.14 ft) | 14.5 m (47.57 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence |
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. |
Smart Object Detection | Smart abandoned object; smart missing object |
SMD | SMD 3.0 |
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets. |
AI SSA | Yes |
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
Heat Map | Yes |
Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and ... |
