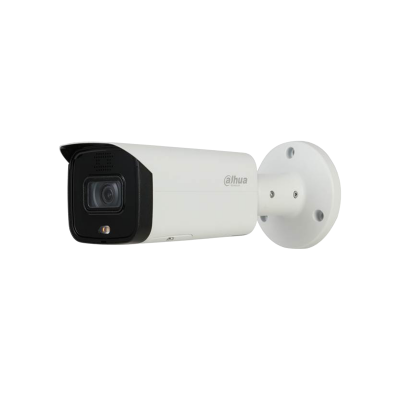

Dahua 5MP Bullet 60m IR 2.8mm - SMD
> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2592 × 1944)@20 fps , and supports 4MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection and heat map.
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in speaker.
> 12 VDC/PoE power supply, easy for installation.
> IP67 and IK10 protection.
> SMD 3.0.
Camera |
Image Sensor | 1/2.7" CMOS |
Max. Resolution | 2592 (H) × 1944 (V) |
ROM | 128 MB |
RAM | 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | 60 m (196.85 ft) (IR) |
Illuminator On/Off Control | Auto; Manual |
Illuminator Number | 2 (IR LED)
1 (Warm light) |
Pan/Tilt/Rotation Range | Pan: 0°360°
Tilt: 0°90°
Rotation: 0°360° |
Lens |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 2.8 mm; 3.6 mm; 6 mm; 8 mm |
Max. Aperture | F1.6 |
Field of View | 2.8 mm: Horizontal: 102°; Vertical: 71°; Diagonal: 131°
3.6 mm: Horizontal: 84°; Vertical: 58°; Diagonal: 110°
6 mm: Horizontal: 51°; Vertical: 37°; Diagonal: 63°
8 mm: Horizontal: 38°; Vertical: 28°; Diagonal: 48° |
Iris Control | Fixed |
Close Focus Distance | 2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)
6 mm: 3.1 m (10.17 ft)
8 mm: 4.5 m (14.76 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 56 m (183.73 ft) | 22.4 m (73.49 ft) | 11.2 m (36.75 ft) | 5.6 m (18.37 ft) |
3.6 mm | 80 m (262.47 ft) | 32 m (104.99 ft) | 16 m (52.49 ft) | 8 m (26.25 ft) |
6 mm | 120 m (393.70 ft) | 48 m (157.48 ft) | 24 m (78.74 ft) | 12 m (39.37 ft) |
8 mm | 160 m (524.93 ft) | 64 m (209.97 ft) | 32 m (104.99 ft) | 16 m (52.49 ft) |
Smart Event |
IVS | Abandoned object; missing object |
Heat Map | Yes |
Professional, intelligent |
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
SMD 3.0 | Less false alarm, longer detection distance |
People Counting | Tripwire people counting, generating and exporting report (day/month); people counting in area; queue management; 4 rules can be set for tripwire, people counting in area and queue management. |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
|
