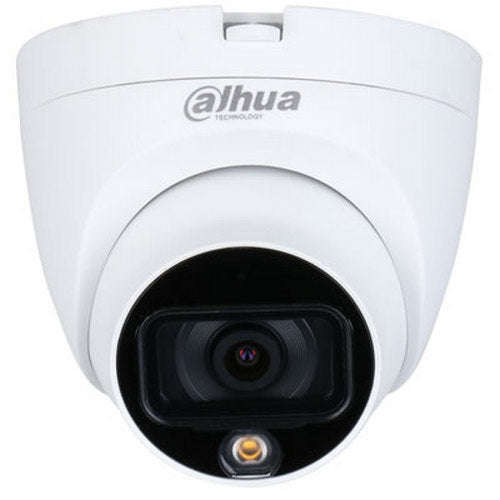

Dahua 2MP Eyeball 20m IR 2.8mm

Dahua 2MP Eyeball 20m IR 2.8mm

• Full-color starlight
• 20 m illumination distance
• Max. 30fps@1080P
• CVI/CVBS/AHD/TVI switchable
• Fixed lens 2.8 mm
• IP67, 12V±30% DC

• Camera

  Image Sensor

  1/2.8" CMOS

  Effective Pixels

  1920(H)×1080(V), 2MP

  Scanning System

  Progressive

  Electronic Shutter Speed

  PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

  Minimum Illumination

  0.01Lux/F1.6, 0Lux white light on

  S/N Ratio

  More than 65dB

  IR Distance

  20 m (65.61 ft)

  IR On/Off Control

  Auto / Manual

  IR LEDs

  1

  Lens

  Lens Type

  Fixed lens / Fixed iris

  Mount Type

  Board-in

  Focal Length

  2.8mm

  Max Aperture

  F1.6

  Angle of View

  2.8 mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical);

  Close Focus Distance

  2.8 mm: 0.6 m (1.97 ft);

  DORI Distance

  Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

  DORI Definition

  Distance

  Detect

  25px/m (8px/ft)

  2.8mm: 38.6 m (126.6 ft)

  Observe

  63px/m (19px/ft)

  2.8mm: 15.4 m (50.5 ft)

  Recognize

  125px/m (38px/ft)

  2.8mm: 7.7 m (26.3 ft)

  Identify

  250ppm (76px/ft)

  2.8mm: 3.9 m (12.8 ft)

  Pan / Tilt / Rotation

  Pan/Tilt/Rotation

  Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

  Video

  Resolution

  1080P (1920 × 1080); 720P (1280 × 720); 960H (960 × 576/960 × 480

  Frame Rate

  CVI: PAL: 1080P@25fps; 720P@25fps; NTSC: 1080P@30fps; 720P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps CVBS: PAL: 960H; NTSC: 960H

  Video Output

  1-channel BNC high definition video output / CVBS video output (Can switch)

  Day/Night

  Auto (ICR) / Manual

  OSD Menu

  Multi-language

  BLC Mode

  BLC / HLC / DWDR

  WDR

  DWDR

  Gain Control

  AGC

  Noise Reduction

  2D

  White Balance

  Auto / Manual

  Smart IR

  Auto / Manual

  Certifications

  Certifications

  CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

  Interface

  Audio Interface

  N/A

  Eelectrical

  Power Supply

  12V DC ±30%

  Power Consumption

  Max 3.0W (12V DC, IR on)

  Environmental

  Operating Conditions

  -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)

  Storage Conditions

  -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

  Ingress Protection & Vandal Resistance

  IP67

  Construction

  Casing

  Inner core: metal + plastic Cover: plastic Pedestal: plastic

  Dimensions

  97.1 mm × 91.4 mm (3.82" × 3.6")

  Net Weight

  0.21 Kg (0.46 lb)

  Gross Weight

  0.28 Kg (0.62 lb)
