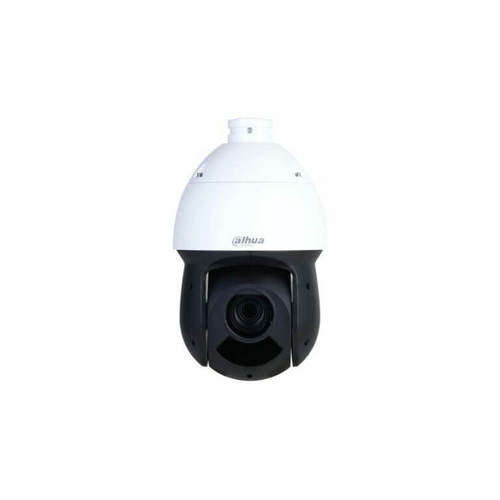

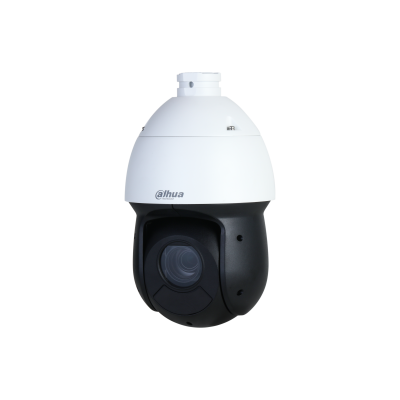

Dahua 2MP PTZ 100m IR 25 x Optical Zoom

Camera

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

256 MB

Electronic Shutter Speed

1/1 s1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

100 m (328.08 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR

Illuminator Number

3 (IR)

Lens

Focal Length

4.8 mm120 mm

Max. Aperture

F1.6F3.5

Field of View

H: 58.5°2.8°; V: 33.2°1.5°; D: 67.5°3.2

Optical Zoom

25x

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m1.5 m (0.33 ft4.92 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

1,613 m (5,291.99 ft)

646 m (2,119.42 ft)

323 m (1,059.71 ft)

161 m (528.22 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: 15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s80°/s
Tilt: 0.1°/s80°/s

Preset Speed

Pan: 80°/s; Tilt: 80°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset;Pattern;Tour;Scan

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, capturing pictures, and face enhancement

SMD

SMD 3.0

Auto Patrol

It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream)

Streaming Capability

3 streams

Resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/960p/720p@(125/30 fps)
Sub stream 1: D1/VGA/CIF@(125/30 fps)
Sub stream 2: 1080p/960p/720p@(125/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate
