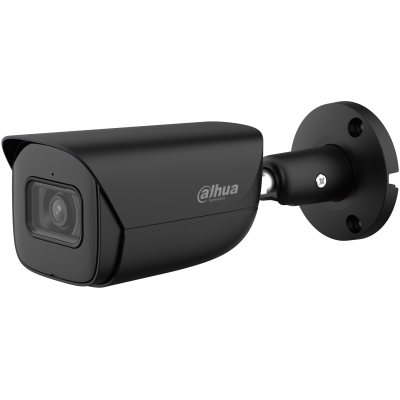

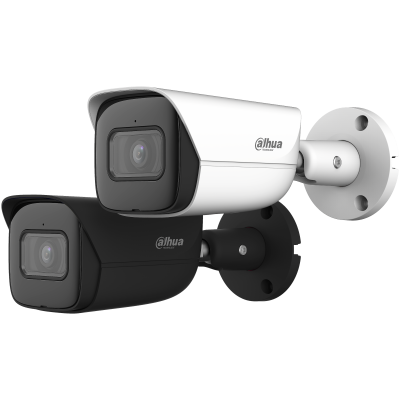

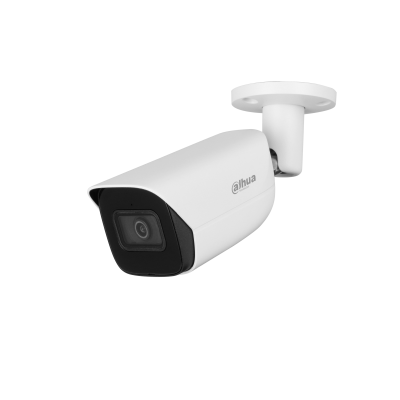

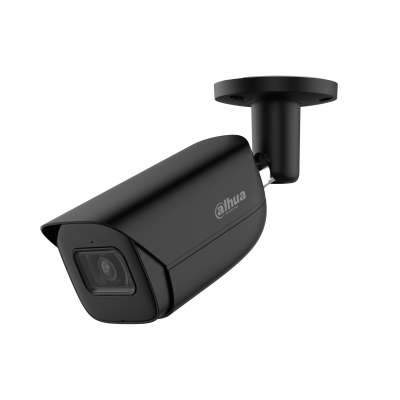

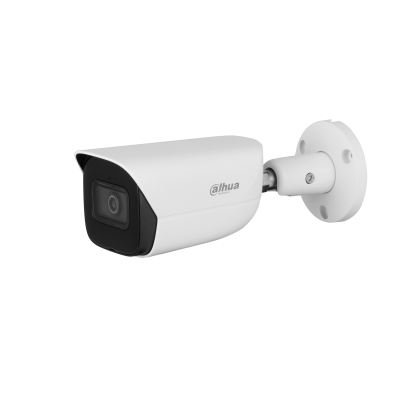

Dahua 4MP Bullet 50m IR 3.6mm

Camera

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128MB

FRAME

512MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3s1/100,000s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

50 m (164.04 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°360°; Tilt: 0°90°; Rotation: 0°360°

Lens

Lens Type

Fixed focal

Lens Mount

M12

Focal Length

2.8mm; 3.6mm; 6mm

Max. Aperture

F1.4

Field of View

2.8 mm: Horizontal: 107°; vertical: 56°; diagonal: 127°
3.6 mm: Horizontal: 88°; vertical: 44°; diagonal: 105°
6 mm: Horizontal: 54°; vertical: 29°; diagonal: 63°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)
6 mm: 2.6 m (8.53 ft)

DORI Distance

Lens

Detect

Watch

Recognition

Identify

2.8 mm

63.6 m
(208.66 ft)

25.4 m
(83.33 ft)

12.7 m
(41.67 ft)

6.4 m
(21.00 ft)

3.6 mm

85.4 m
(280.18 ft)

34.2 m
(112.20 ft)

17.1 m
(56.10 ft)

8.5 m
(27.89 ft)

6 mm

124 m
(406.82 ft)

49.6m
(162.73 ft)

24.8 m
(81.36 ft)

12.4 m
(40.68 ft)

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

AI SSA

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

AI Coding

AI H.265
AI H.264

Video Frame Rate

Main stream: 2688 × 1520 @ (125/30) fps
Sub stream 1: 704 × 576 @ (125 fps)/704 × 480 @ (130 fps)
Sub stream 2: 1920 × 1080 @ (125/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR
