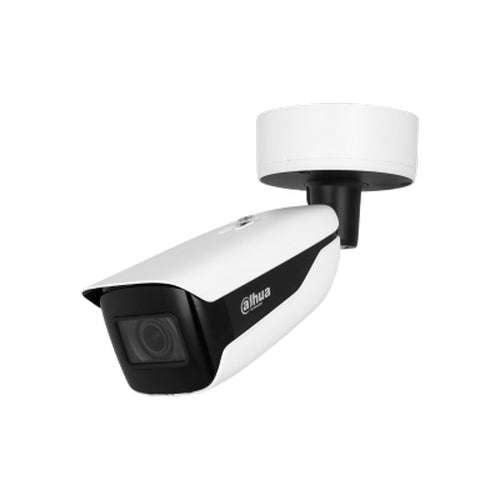

Dahua 4MP Bullet 60m IR 2.7-12mm
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built-in IR LED, and the max. illumination distance is 60 m.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection, etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS485, BNC, supports max. 256 G Micro SD card.
> 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
> IP67, IK10 protection grade.
> 12 VDC power output, max. current 165 mA , easy for installation
> Anti-corrosion coating(optional).
Camera |
Image Sensor | 1/1.8" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 4 GB |
RAM | 2 GB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.001 Lux@F1.2 (Color, 30 IRE) 0.0002 Lux@F1.2 (B/W, 30 IRE) 0 Lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | 60 m (196.85 ft) |
Illuminator On/Off Control | Auto; Manual; Zoomprio |
Illuminator Number | 4 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°360° Tilt: 0°90° Rotation: 0°360° |
Lens |
Lens Type | Motorized vari-focal |
Lens Mount | Module interface |
Focal Length | 2.7-12 mm |
Max. Aperture | F1.2 |
Field of View | Horizontal: 114° (W)48° (T) Vertical: 59° (W)27° (T) Diagonal: 141° (W)55° (T) |
Iris Control | Auto; P-iris |
Close Focus Distance | 1 m (3.28 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 60.1 m (197.18 ft) | 24 m (78.74 ft) | 12 m (39.37 ft) | 6 m (19.69 ft) |
T | 128.7 m (422.24 ft) | 51.5 m (168.96 ft) | 25.7 m (84.32 ft) | 12.9 m (42.32 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Smart Event |
IVS | Abandoned object; missing object |
Professional, intelligent |
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
Face Recognition | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting. Support 5 face databases; register one by one or in batches; support face recognition similarity settings and face comparison on the basis of 100,000 face databases. |
Face and Body Detection | There are two modes: General mode and PPE Detection. General mode: Su... |
