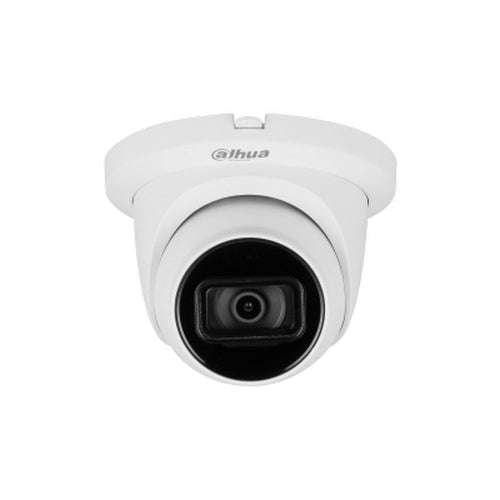

> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitorin.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card, built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> ePoE; IP67 protection.
> SMD 3.0
Camera |
Image Sensor | 1/1.8" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | 50 m (164.04 ft) (IR) |
Illuminator On/Off Control | Auto; manual |
Illuminator Number | 2 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°360°
Tilt: 0°78°
Rotation: 0°360° |
Lens |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 2.8 mm; 3.6 mm; 6 mm |
Max. Aperture | F1.6 |
Field of View | 2.8 mm: Horizontal: 113°; Vertical: 60°; Diagonal: 134°
3.6 mm: Horizontal: 89°; Vertical: 48°; Diagonal: 104°
6 mm: Horizontal: 56°; Vertical: 31°; Diagonal: 65° |
Iris Control | Fixed |
Close Focus Distance | 2.8 mm: 1.3 m (4.27 ft)
3.6 mm: 1.9 m (6.23 ft)
6 mm: 3.8 m (12.47 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8mm | 57.9 m (189.96 ft) | 23.2 m (76.12 ft) | 11.6 m (38.06 ft) | 5.8 m (19.03 ft) |
3.6mm | 71.7 m (235.34 ft) | 28.7 m (94.16 ft) | 14.3 m (46.92 ft) | 7.2 m (23.62 ft) |
6mm | 113.1 m (371.06 ft) | 45.2 m (148.29 ft) | 22.6 m (74.15 ft) | 11.3 m (37.07 ft) |
Smart Event |
IVS | Abandoned object; missing object |
Heat Map | Yes |
Professional, intelligent |
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
SMD 3.0 | Less false alarm, longer detection distance |
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time setting |
People Counting | Tripwire people counting, generating and exporting report (day/month); people counting in area; queue management; 4 rules can be set for tripwire, people counting in area and queue management. |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | ... |
