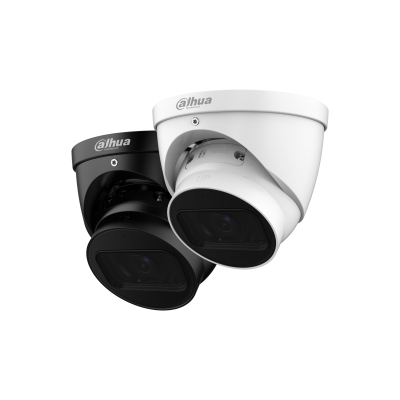

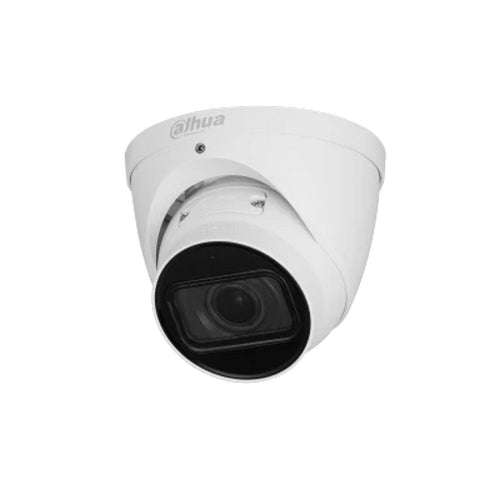

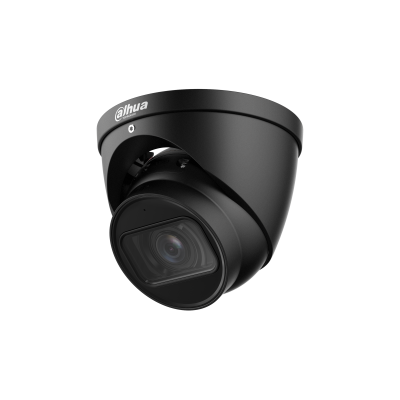

Dahua 4MP IR Vari-focal Eyeball WizSense Network Camera
> 4-MP 1/2.9" CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion , tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Camera |
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.005 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | Up to 40 m (131.23 ft) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (IR LED) |
Angle Adjustment | Pan: 0°360°; Tilt: 0°78°; Rotation: 0°360° |
Lens |
Lens Type | Motorized vari-focal |
Lens Mount | 14 |
Focal Length | 2.7 mm13.5 mm |
Max. Aperture | F1.5 |
Field of View | H: 104°29° V: 54° 16° D: 125° 33° |
Iris Control | Fixed |
Close Focus Distance | 0.8 m (2.62 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 64.0 m
(209.97 ft) | 25.6 m
(83.99 ft) | 12.8 m
(41.99 ft) | 6.4 m
(21.00 ft) |
T | 210.0 m
(688.98 ft) | 84.0 m
(275.59 ft) | 42.0 m
(137.80 ft) | 21.0 m
(68.90 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence |
IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
AI SSA | Yes |
Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+
Smart H.264+ |
AI Coding | AI H.265
AI H.264 |
Video Frame Rate | Main stream: 2688 × 1520 @ (125/30) fps
Sub stream 1: 704 × 576 @ (125 fps)/704 × 480 @ (130 fps)
Sub stream 2: 1920 × 1080 @ (125/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Stream Capability | 3 streams |
Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 3 kbps8192 kbps
H.265: 3 kbps8192 kbps |
...
