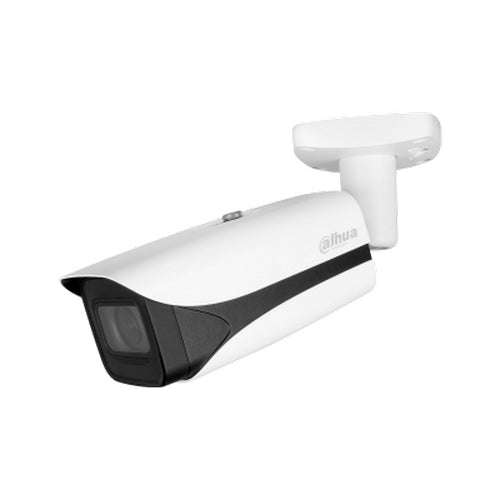

Dahua 5MP Bullet 120m IR 7-35mm
5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.v
Room |
Image Sensor | 1/2.7 CMOS |
Max. Resolution | 2960 (H) × 1668 (V) |
ROM | 4 GB |
RAM | 1 GB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.0009 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on) |
Y/N Ratio | >56dB |
Illumination Distance | Up to 120 m (393.70 ft) (IR) |
Illuminator On/Off Control | Auto; Zoomprio; Manual |
Illuminator Number | 4 (IR LEDs) |
Angle Adjustment | Pan: 0°360°
Tilt: 0°90°
Rotation: 0°360° |
Lens |
Lens Type | Motorized vari-focal |
Lens Mount | Module |
Focal Length | 7mm35mm |
Max. Openings | F1.6 |
Field of View | H: 31°11°; V: 17°6°; D: 36°13° |
Iris Control | Car |
Close Focus Distance | 1.5 m (4.92 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 213.6 m (700.79 ft) | 85.4 m (280.18 ft) | 42.7 m (140.09 ft) | 21.4 m (70.21 ft) |
T | 572.8 m (1879.27 ft) | 229.1 m (751.64 ft) | 114.6 m (375.66 ft) | 57.3 m (187.99 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence |
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detector, people gathering, parking detector. Supports long-distance mode. Supports self-learning, it filters out false alarms. |
Smart Object Detection | Smart abandoned object; smart missing object |
SMD | SMD 3.0 |
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals, and motor vehicles, and search through live and recorded videos to quickly locate targets. |
TO THE SSA | Yes |
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management; generating and exporting reports (day/week/month); 4 rul... |
