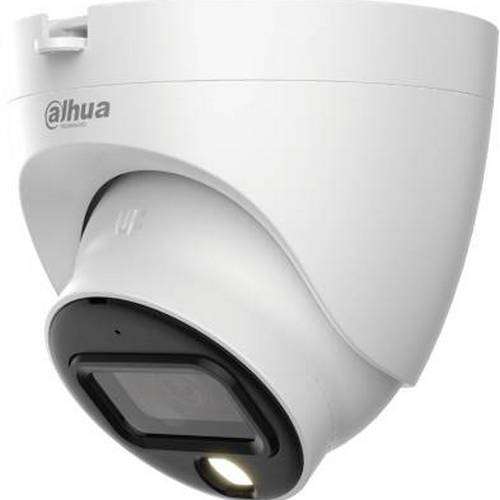

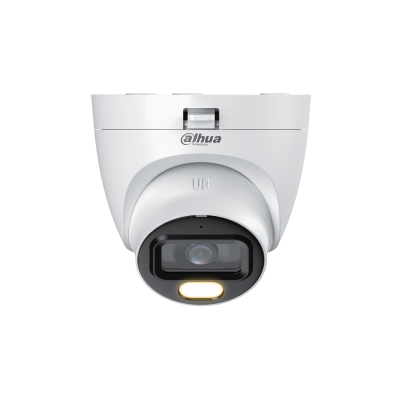

Name: Dahua 5MP Eyeball 20m IR 3.6mm
SKU: DH-HAC-HDW1509TLQP-A-LED_3.6mm
Price: 949.00 ZAR
Availability: InStock

Dahua 5MP Eyeball 20m IR 3.6mm

10 available / new

R949.00

Shipping

This product qualifies for free shipping in South Africa, using one of our trusted couriers.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Guards On Duty Security2

100.00 % Positive ratings

Get it now, pay later

Condition

New

Location

South Africa

Product code

DH-HAC-HDW1509TLQP-A-LED_3.6mm

Bob Shop ID

643065680

Dahua 5MP Eyeball 20m IR 3.6mm

> Max 25 fps@5MP (16:9 video output)

> Super Adapt, 120 dB true WDR, 3D NR

> 24/7 color imaging

> Smart Light+.

> Built-in Mic.

> 30 m illumination distance

> CVI/CVBS/AHD/TVI switchable

> 3.6 mm fixed lens (2.8 mm optional)

> IP67, 12 V DC

> Quick-to-install eyeball saves installation time

Camera

Image Sensor1

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s1/100,000 s;

NTSC: 1/4 s1/100,000 s

Min. Illumination

0.001 lux@F1.0 (Color, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Warm light)

Angle Adjustment

Pan: 0°360°

Tilt: 0°78°

Rotation: 0°360°

Lens

Lens Type

Fixed-focal

Auto Focus

Lens Mount

M12

Focal Length

3.6 mm; 2.8 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 112°; V: 57°; D: 132°

3.6 mm: H: 88°; V: 46°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.6 m (5.25 ft)

3.6 mm: 2.3 m (7.55 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

67.4 m

( 221.13 ft)

27.0 m

( 88.58 ft)

13.5 m

( 44.29 ft)

6.7 m

( 21.98 ft)

3.6 mm

80.0 m

( 262.47 ft)

32.0 m

( 104.99 ft)

16.0 m

( 52.49 ft)

8.0 m

( 26.25 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI:

PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps

NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps

AHD:

PAL: 4M@25 fps

NTSC: 4M@30 fps

TVI:

PAL: 5M 16:9@20 fps; 4M@25 fps

NTSC: 5M 16:9@20 fps; 4M@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution

5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Color

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart Light

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

<...
