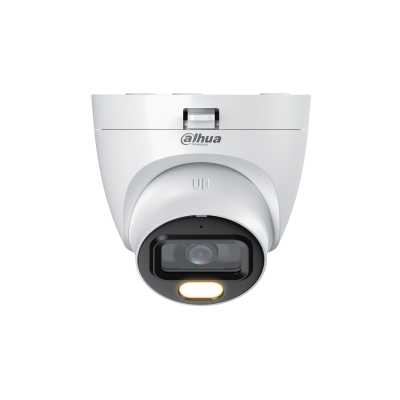

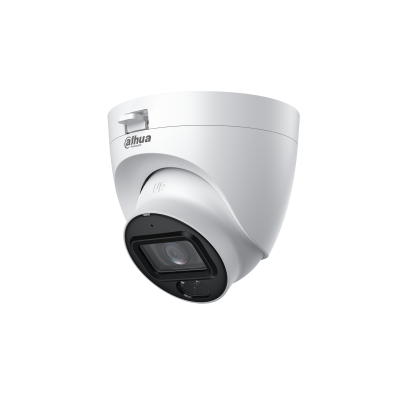

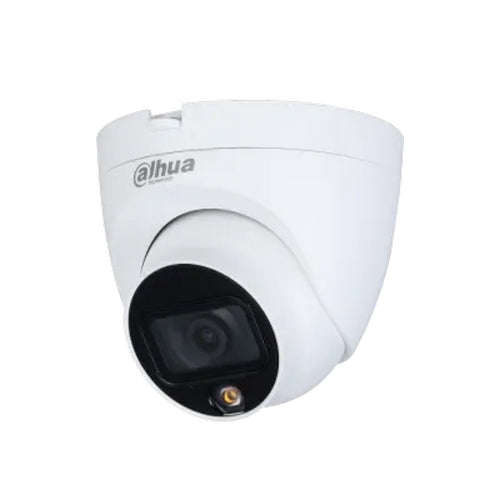

Dahua 2MP Eyeball 20m IR 2.8mm

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s1/100,000 s

NTSC: 1/30 s1/100,000 s

Min. Illumination

0.001 lux@F1.0 (Color, 30 IRE)

0.0001 lux@F1.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Multi-core light)

Angle Adjustment

Pan: 0°360°

Tilt: 0°78°

Rotation: 0°360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

3.6 mm; 2.8 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 101.8°; V: 54.4°; D: 122.1°

3.6 mm: H: 84.2°; V: 45.3°; D: 98.9°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)

3.6 mm: 1.6 m (5.25 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

45.6 m

( 149.61 ft)

18.2 m

( 59.71 ft)

9.1 m

( 29.86 ft)

4.6 m

( 15.09 ft)

3.6 mm

55.6 m

( 182.41 ft)

22.2 m

( 72.83 ft)

11.1 m

( 36.42 ft)

5.6 m

( 18.37 ft)

Video

Video Frame Rate

CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

CVBS: PAL: 960H; NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR

WDR

130 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

Yes

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic

Yes
