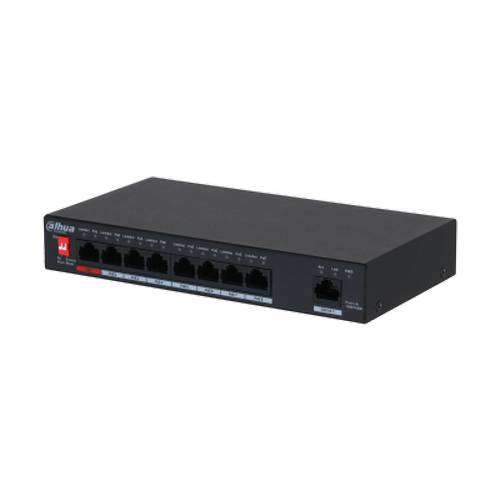

Dahua 9 Port Unmanaged Switch

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

8

Optical Port

0

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100 Mbps

Description of Function Slots

Port 18: 8 × RJ-45 10/100 Mbps (PoE)
Port 9: 1 × RJ-45 10/100 Mbps (Uplink)

Power Supply

External power supply: 4857 VDC, 21.68 A

Operaing Temperature

10 °C to +55 °C (+14°F to +131°F)

Operatng Humidity

5% 95% (RH)

Power Consumpton

Idling: 1.5 W
Full load: 96 W

Performance

Layer

Layer 2

Management Type

No

Smart Managed Switch

No

Switching Capacity

1.8 Gbps

Packet Forwarding Rate

1.34 Mpps

Packet Buffer Size

768 kbit

MAC Table Size

2K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

96 W

Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

ePoE

No

Long Distance PoE Transmission

Yes

PoE Watchdog

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Dierental mode: 2 kV

Net Weight

0.49 kg (1.08 lb)

Gross Weight

1.3 kg (2.87 lb)

Product Dimensions

190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18") (L × W × H)

Packaging Dimensions

267 mm × 239 mm × 77 mm (10.51" × 9.41" × 3.03") (L × W × H)

Casing Material

Iron

Installation

Desktop mount; wall mount

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

100

150

25.5
