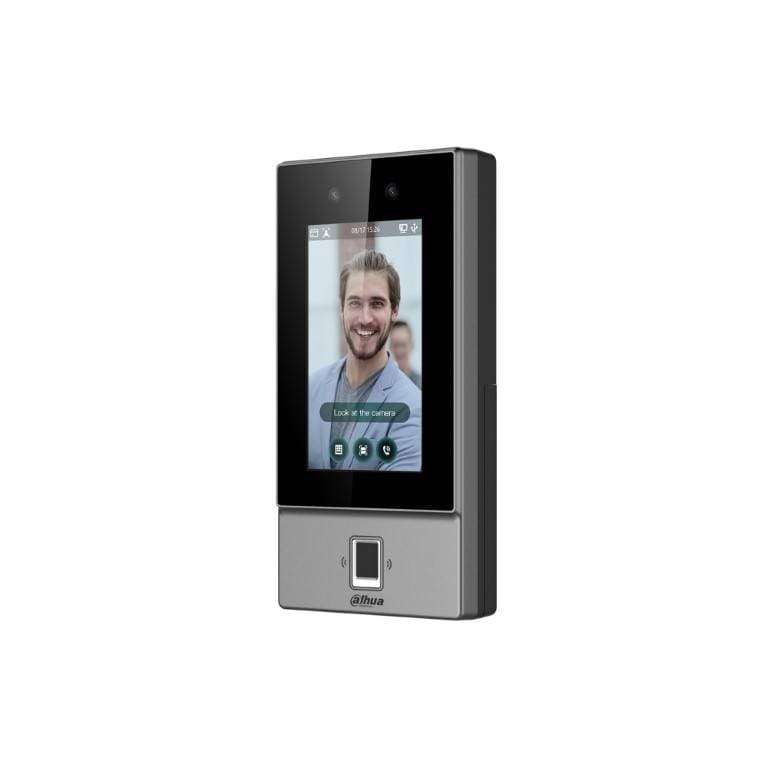

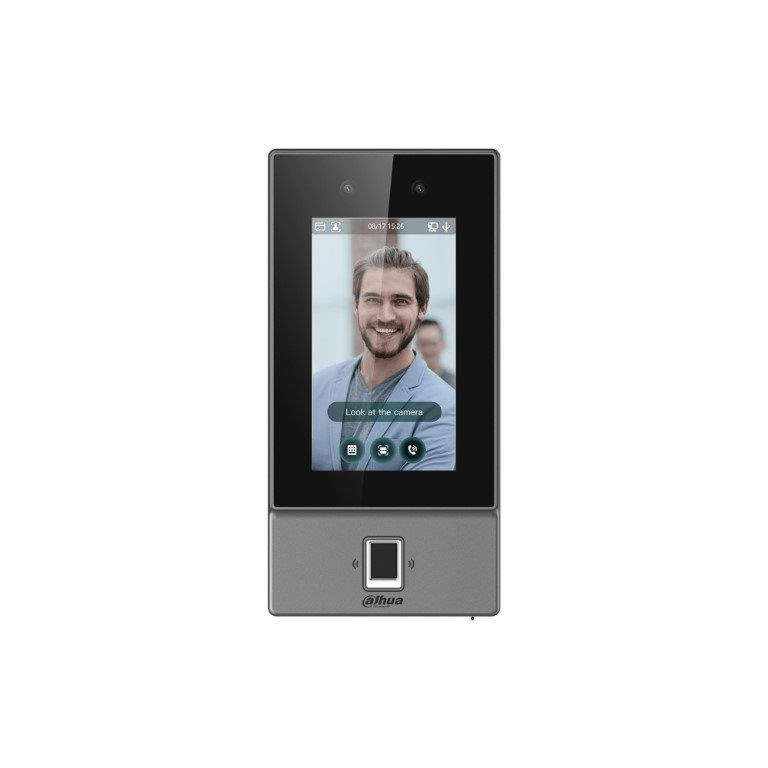

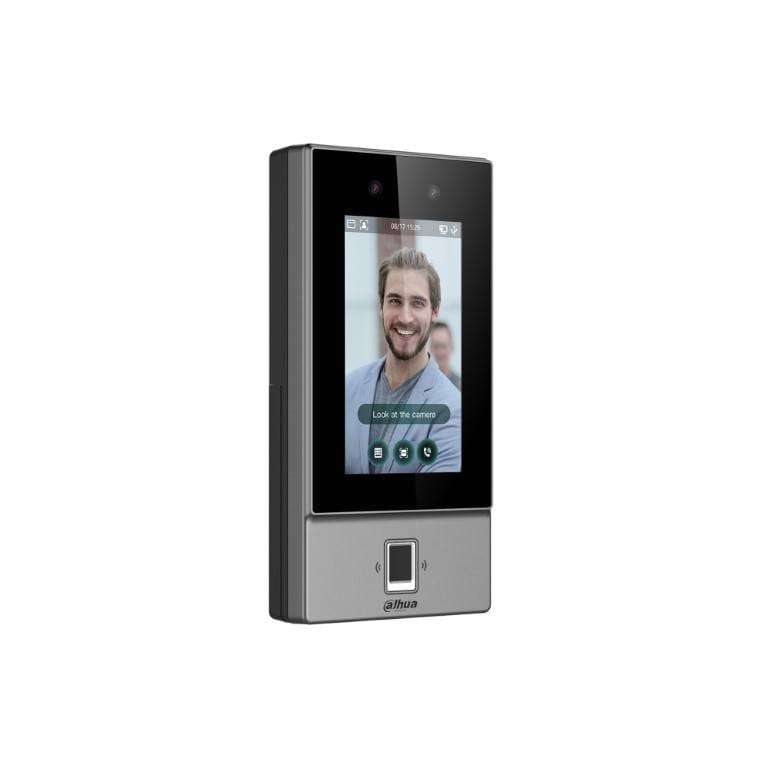

Dahua ASI6214S-PW Face Recognition Access Controller with 4.3-inch LCD Touch Display
Features
- 4.3 inch glass touch screen with a resolution of 272 × 480.
- 2-MP wide-angle dual-lens camera with IR illumination and DWDR.
- Multiple unlock methods including fingerprint, face, IC card and password.
- Supports 6,000 users, 6,000 faces, 6,000 passwords, 6,000 fingerprints, 10,000 cards, 50 administrators, and 300,000 records.
- Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft); face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person.
- Supports improved security and to protect against the device being forcefully opened, security module expansion is supported.
- Features face mask detection and safety helmet detection.
- Supports visitor QR code and doorbell function.
- Supports making video calls and using the app to receive alarm notifications, remotely unlock doors and to perform other tasks.
- TCP/IP and Wi-Fi connection.
- PoE power supply.
- IP65 rated.
Technical Specification
Product: DHI-ASI6214S-PW
Main Processor: Embedded Processor
Button Type: Touch button
Network Protocol: UDP; TCP; IPv4; RTSP; SIP; P2P; RTP
OSDP Protocol: Yes
Interoperability: CGI; ONVIF
SDK and API: Yes
Product Type: Standalone
Display Screen: 4.3" LCD
Screen Type: Capacitive Touchscreen
Screen Resolution: 272 (H) × 480 (V)
Camera: 2-MP CMOS HD dual-lens camera
WDR: DWDR
Light Compensation: Auto IR
Voice Prompt: Yes
Buzzer: Yes
Casing Material: PC+GF
Unlock Mode: Card, remote, password, QR code, Fingerprint, face and combination unlock
Card Type: IC cards
Period List: 128 periods
Holiday Period: 128 periods
Network Update: Yes
First User Unlock: Yes
Remote Verification: Yes
Restricted List/Trusted List: Yes
Wi-Fi: Yes
Wireless Standard: IEEE802.11b/802.11g/802.11n
Wireless Frequency Range: 2.4 GHz
Peripheral Card Reader
-
1 × RS-485 card reader
-
1 × Wiegand card reader
Multi-user Authentication: Yes
Real-time Monitoring: Yes
Multi-factor Authentication: Yes
Capture Function: Yes
Web Configuration: Yes
Auto Registration: Yes
Card Reading Distance: 0 cm—3 cm (0"—1.18")
Face Recognition Height Range: 1.1 m—2.0 m (3.61 ft—6.56 ft)
Face Recognition Distance: 0.3 m—1.5 m (0.98 ft—4.92 ft)
Face Recognition Accuracy: 99.9%
Face Recognition Time: 0.2 s
Fingerprint Verification Mode: 1:N
User (Card) Type: Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2
User Capacity: 6,000
Face Image Capacity: 6,000
Fingerprint Capacity: 6,000
Card Capacity: 10,000
Password Capacity: 6,000
Record Capacity: 300,000
RS-485: 1
Wiegand: 1
USB: 1
Network Port: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port
Alarm Input: 1
Alarm Output: 1
Alarm Linkage: Yes
Exit Button: 1
Door Status Detection: 1
Lock Control: 1
Anti-pass Back Alarm: Yes
Tamper Alarm: Yes
Duress Alarm: Yes
Door Sensor Timeout Alarm: Yes
Intrusion Alarm: Yes
Duress Fingerprint Alarm: Yes
Illegal Card Exceeding Threshold Alarm: Yes
Operating Environment: Outdoor; Indoor
Accessory: Wall mount bracket (included)
Installation: Turnstile mount; 86 case mount; Wall mount; surface mount
Power Supply: Stanard PoE ; 12 VDC, 1.5 A
