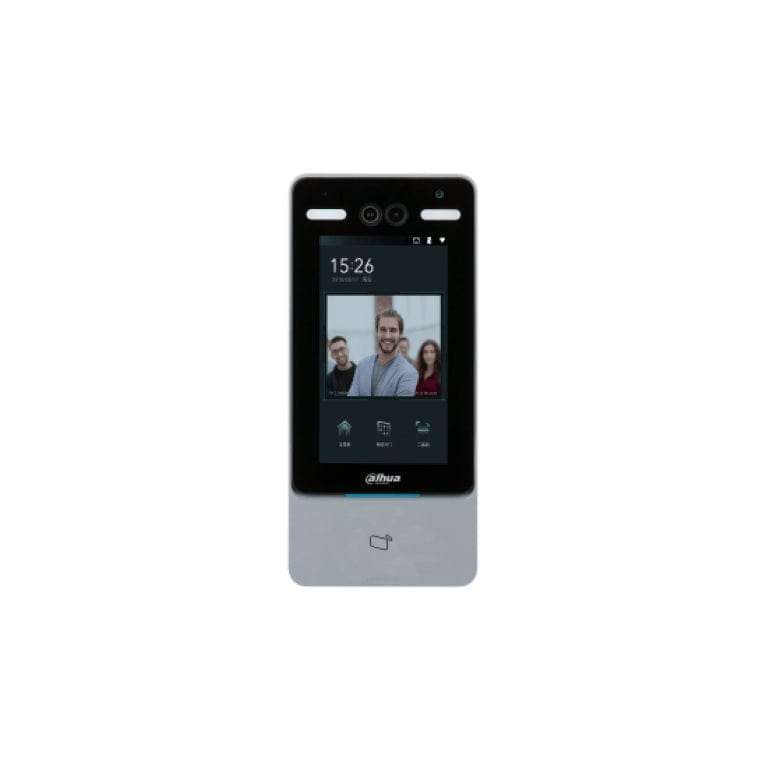

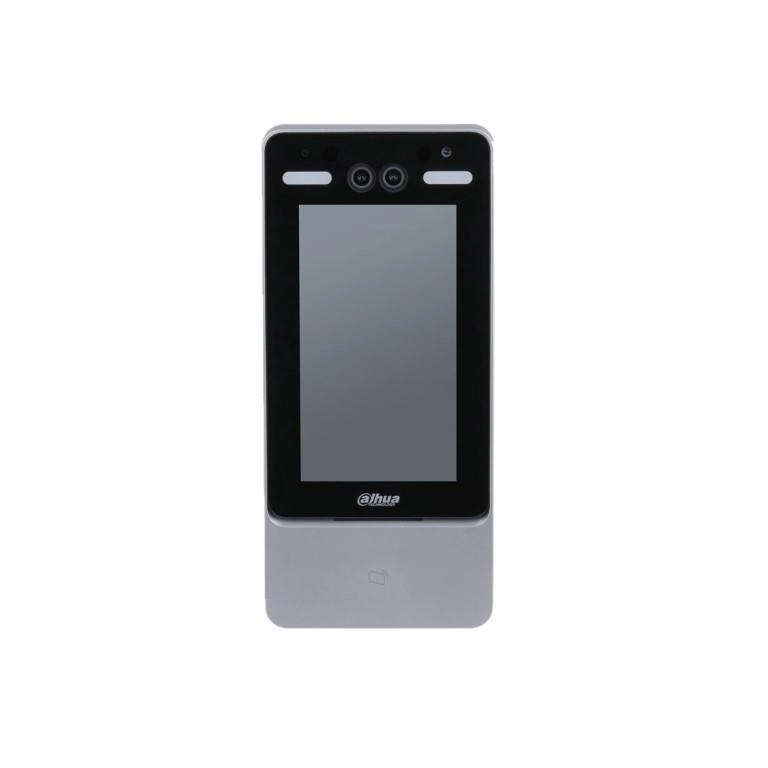

Dahua ASI7213Y 7-inch IPS Touch Face Recognition Access Control
- 7 inch IPS display, resolution 1024×600
- Support face unlock, IC card unlock, and password unlock; unlock by period
- With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web
- 2MP wide-angle WDR lens; with auto/manual fill light
- Face-camera distance: 0.3 m—2.0 m; human height: 0.9 m—2.4 m
- With face recognition algorithm, the access controller can recognize more than 360 positions on human face
- Face verification accuracy>99.5%; face comparison speed 0.35s per person; low false recognition rate
- Support profile recognition; the profile angle is 0°—90°
- Holds 50, 000 users, 50, 000 faces, 50, 000 cards, 50, 000 passwords, and 50 administrators
- Support liveness detection
- Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm , and more
- Support general users, patrol users, VIP users, guest users, and the disabled users
- With 4 unlock status display modes
System:
Main Processor: Embedded Processor
Internet Protocol: IPv4, RTSP, RTP, TCP, UDP, P2P
OSDP Protocol: Yes
Interoperability: CGI
SDK and API: Support SDK
Basic:
Display: 7 inch IPS
Screen Type: Capacitive touch screen
Resolution: 600(H)×1024(V)
Camera: 2 MP CMOS camera
WDR: 120dB
Light Compensation
- Auto white light
- Auto IR light
Status Indicator: 1 indicator light. Red: Error; Green: Normal; Blue: Working.
Voice Prompt: Yes
Housing Material: PC+ABS
Function:
Unlock Mode: Card/remote/password/face unlock and unlock through their combinations;
Card Reading Type: IC card
Period List: 128
Holiday Period: 128
First-Card Unlock: Yes
Remote Verification: Yes
Peripheral Card Reader: 1 RS-485, 1 Wiegand
Multiple Card Authentication: Yes
Real-Time Surveillance: Yes
Web Configuration: Yes
Performance
Card reading distance: 1cm—5cm
Face Recognition Range:
- Face-camera distance: 0.3 m—2.0 m;
- Human height: 0.9 m—2.4 m
Face Verification Accuracy: >99.5%
Face Recognition Time: 0.35s
Capacity:
User Capacity: 50, 000
Face Image Capacity: 50, 000
Card Capacity: 50, 000
Password Capacity: 50, 000
Record Capacity: 100, 000 records
Port:
RS-485: 1
RS-232: 1
Wiegand: 1 input/output
USB: 1 USB2.0 port
Ethernet: 1 10M/100M Ethernet Port
Alarm Input: 2 (Switch quantity)
Alarm Output: 2 (Relay)
Alarm Linkage: Yes
Exit Button: 1
Door Status Detection: 1
Lock Control: 1
Alarm:
Anti-Passback: Yes
Tamper Alarm: Yes
Duress: Yes
Door Sensor Timeout: Yes
Intrusion: Yes
Illegal Card Exceeding Threshold: Yes
