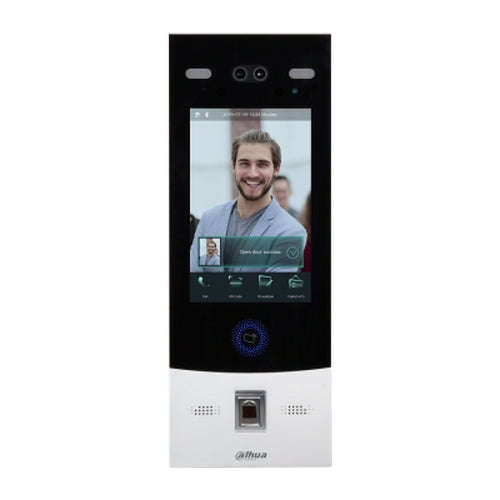

Dahua 8-Inch IP Face Recognition Door Station
> Anodized aluminium alloy middle frame
> 8 inch capacitive touch screen and high definition IPS screen; resolution: 800 (H)×1280 (V)
> Face, fingerprint, password, and card unlock
> Face verification accuracy>99%; face comparison time 0.2s per person; false recognition rate<0.1%
> Face profiles can be recognized, the profile angle range is 0°90°
> Support liveness detection
> Full duplex communication
> Outdoor stations can be managed through the platform; voice communication between mobile app and platform
> 2 MP low illuminance wide dynamic dual camera; white light fill light and IR fill light, fill light brightness can be adjusted
> Support duress alarm, tamper alarm, and fire alarm
> IK07; IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
> Surface mount and flush mount
System |
Main Processor | Embedded processor |
Internet Protocol | IPv4, DNS, RTSP, RTP, TCP, UDP, SIP |
Keyboard Type | Touch keyboard |
Basic |
Appearance | G serials |
Display | High definition IPS screen |
Screen Type | Capacitive screen |
Resolution | 800 (H)×1280 (V) |
Camera | 1/2.8" 2MP CMOS |
Angle of View | H:88°, V:47°, D:105° |
WDR | 120dB |
Light Compensation | Auto white light fill light Auto IR light fill light |
Status Indicator | 1, blue-operation status |
Voice prompt | Yes |
Housing Material | AL+PC+ABS |
Function |
Unlock Mode | Remote/password/face/fingerprint/card |
Online Update | Yes |
Full Duplex Communication | Yes |
Snapshot When Unlocking Doors | Yes |
Information Release | Words can be played on the outdoor station |
Leave Photos and Messages | Yes |
Web Configuration | Yes |
Issue Card Locally | Yes |
Auto-Registration | Yes |
Performance |
Face Recognition Range | Face-camera distance: 0.3 m2.0 m Human height: 1.1 m2.4 m |
Face Recognition Configuration | Anti-fake switch Recognition threshold Facial profile angle |
Face Verification Accuracy | >99% |
Face Comparison Time | 0.2s |
Capacity |
Face Capacity | 20, 000 |
Card Capacity | 10, 000 |
Fingerprint Capacity | 10, 000 |
Port |
RS-485 | 1 |
Wiegand | 1 (input or output) |
Ethernet | 1 10M/100M/1000M Ethernet port |
Alarm Input | 2 (Switch quantity) |
Alarm Output | 2 (Dry contact) |
Alarm Linkage | Yes |
Power Output | 1 DC 12V/100ma |
Exit Button | 1 |
Door Status Detection | 1 |
Lock Control | 1, normally on or off by default |
Storage | Micro SD card(up to 64GB reserved for software ) |
Alarm |
Tamper Alarm | Yes |
Duress Alarm | Yes |
Door Sensor Timeout |
