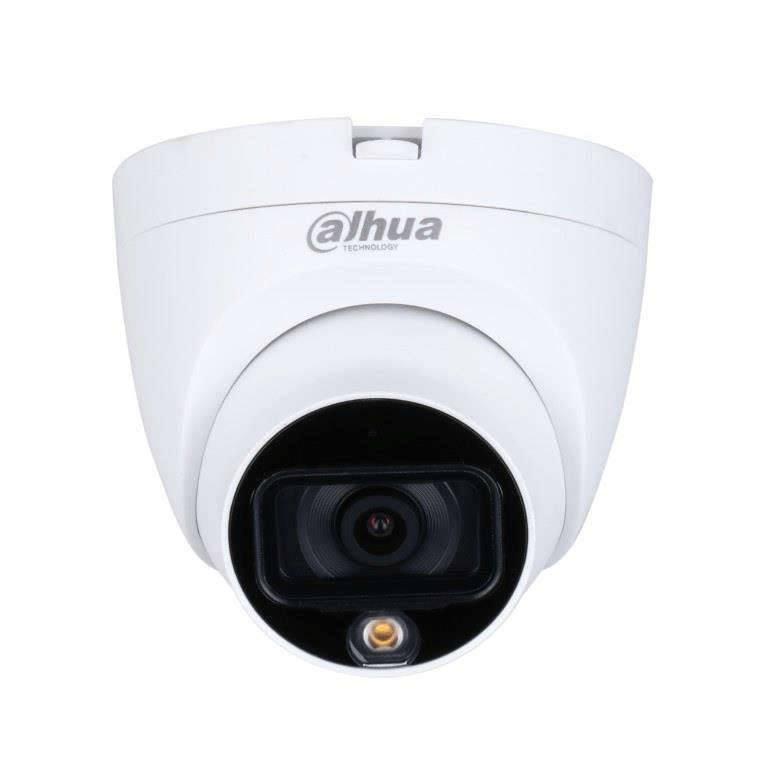

Dahua Lite Series 2MP 3.6mm Full-Colour Starlight Eyeball HDCVI Camera
Experience 2MP full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI camera presents a high quality color image with rich details even in total dark conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts one powerful warm white LED illuminators, covering an effective range up to 20 m (65.61 ft). The LEDs switch on automatically in darkness to capture detail-packed full-color images 24/7, ensuring anthentic identificaiton of objects. It is an ideal choice for applications such as schools, retail centers and parking lots.
Features
- Full-color starlight
- 20 m illumination distance
- Max. 30fps-1080P
- Quick-to-install eyeball saves installation time
- CVI/CVBS/AHD/TVI switchable
- Fixed lens
- IP67
- 12V±30% DC power supply required
Full-colour Starlight
The camera adopts F1.6 large aperture lens and 1/2.8" high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera presents an impressive lowlight performance with an exceptional balance between noise reduction and the blur of moving object.
Warm Supplemental lights
With one warm supplemental LED lights, the camera is able to provide a coloful and vivid image even in total dark. By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposureing of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 700 m for 2MP HD video via coaxial cable.*
Multiple-formats
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820 (UTC controller). This feature makes the camera to be compatible with most end users' existing HD/SD DVRs.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the mostunstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
Easy Installation
HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which can achieve easier installation than conventional eyeball. Quick-to-install camera reduces time and labor costs.
Technical Specification
Product: DH-HAC-HDW1209TLQP-LED-0280B-S2
Image Sensor: 1/2.8" CMOS
Max. Resolution: 1920(H)×1080(V), 2MP
Scanning System: Progressive
Electronic Shutter Speed:
-
PAL: 1/25~1/100000s
-
NTSC: 1/30~1/100000s
Min. Illumination: 0.01 Lux/F1.6, 0 Lux white light on
S/N Ratio: More than 65dB
Illumination Distance: Distance up to 20 m
Illuminator On/Off Control: Auto; Manual
Illuminator Number: 1 (IR LED)
Pan/Tilt/Rotation Range:
-
Pan: 0°—360°
-
Tilt: 0°—90°
-
Rotation: 0°—360°
Lens Type: Fixed lens / Fixed iris
Lens Mount: M12
Focal Length: 3.6mm
Max. Aperture: F1.6
Field of View: Horizontal: 86.9°; Vertical: 46.3°; Diagonal: 103.6°
Close Focus Distance: 1.2 m
DORI Distance: D: 55.2 m ; O: 22.1 m ; R: 11.0 m ; I: 5.5 m
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
Audio Interface: N/A
Power Supply Required: 12V DC ±30%
