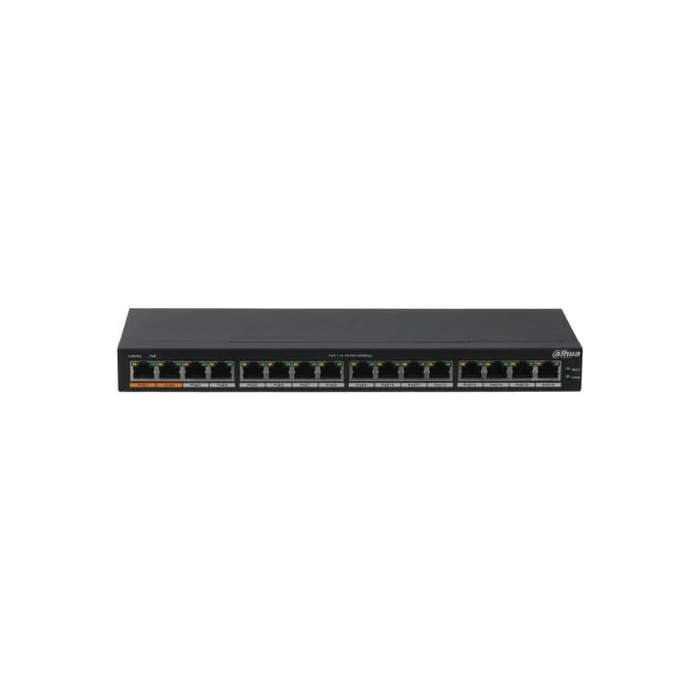

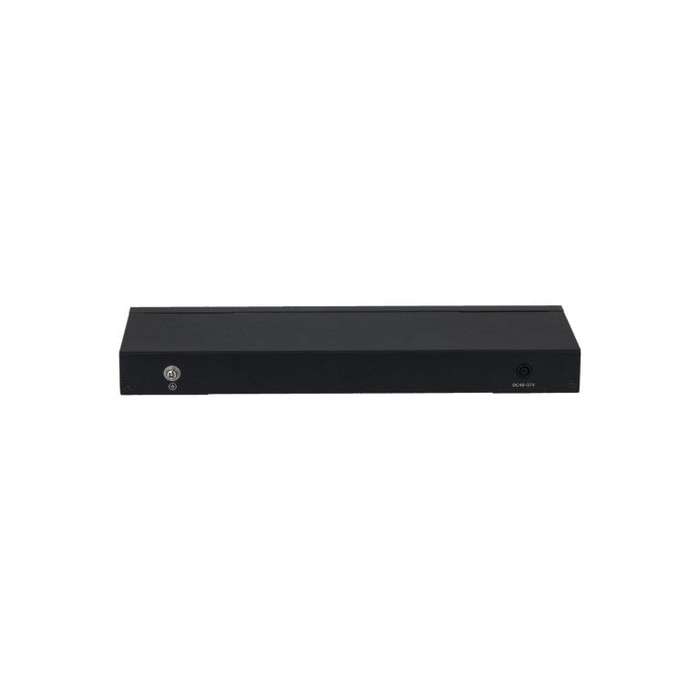

Dahua PFS3016-16GT-190 16-port Gigabit PoE Unmanaged Switch 1.0.01.20.10599
Features
Intelligent PoE Adopt
PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage.
Hi-PoE 60W (Orange Port)
All ports support IEEE802.3af and IEEE803.3at power supply standards; orange ports also support max. 60W output.
Full Gigabit Port
RJ-45 port supports 16 × 10/100/1000 Mbps self-adaptation, and IEEE802.3, IEEE802.3u, IEEE802.3X, and IEEE802.3ab standards.
Installation
With small dimensions, the product supports desktop and wall mounting.
More Features
-
16-Port Unmanaged Gigabit PoE Switch
-
Organge port supports 60W Hi-PoE standard
-
Intelligent PoE
-
Plug-and-play
-
Ethernet port supports eight-pin PoE
-
Wide range of working temperature: —10 to +55°C (14°F to +131°F)
-
Full gigabit port design
Technical Specification
Performance
Layer: Layer 2
Switching Capacity: 32 Gbps
Packet Forwarding Rate: 23.808 Mpps
Packet Buffer Memory: 4.1 Mb
MAC Table Size: 8K
Hardware Feature
Standard Power Supply: Yes
PoE: Yes
Ethernet Port: 16
Ethernet Port Rate: 1 Gbps
Number of Bussiness Card Slots: Port 1—port 16: 16 × RJ-45 10M/100M/1000M (PoE)
Power Supply: 100V AC —240V AC
Operating Temperature: —10°C to +55°C (14°F to +131°F)
Operating Humidity: 10%—90%
Storage Humidity: 5%—95%
Power Consumption:
-
Idling: 18W
-
Full load: 190W
PoE
PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE
PoE Budget: Port 1—port 2 60W, port 3—port 16 30W, total 190W
PoE Pin Assignment: PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V—)
