Description : FG-100 Soldering Iron Tip Thermometer Tip Temperature Tester0-700a Tip thermometer providing reliable temperature control of soldering iron tips.
Compact design saves your workspace and allows you to easily carry it around.
Extremely fine sensor with high temperature reactivity is incorporated.
Features : Suitable for Lead-Free Solder Good temperature response using a fine CA wire sensor (0.2mm)
Disposable sensor always maintains accurate temperature measurment
(Replace sensor when the measuring point underwent degradation)
Sensor has the twice service life than conventional ones.
Dimensional Measurement Allows you to measure from any desired direction according to tip shape
Auto Shut-Off Function If no measurement operation is performed within 3 minutes, the power will be automatically shut off.
MAX HOLD Function When the button MAX HOLD is pressed, MAX HOLD will be displayed and the highest temperature of Iron will be held in the display.
Easy-to-read temperature Large and clear display
Digital temperature display make to read it accurately
Compact Size Convenient to carry and saves your workspace
Specification : | ModelNo. | FG-100 |

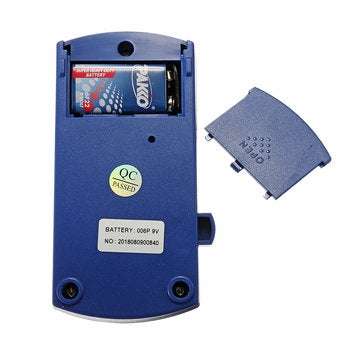

| Powersupply | 006P9Vdrybattery |
| Temperatureresolution | 1oC |
| Temperaturemeasurementrange | 0to700oC |
| Temperatureprecision | ±3oC(300to600oC)
±5oC(otherthanabove) |
| Temperaturesensor | K(CA)typethermocouple |
| Display | LCD:31/2digits
Besidesmeasuredtemperatures,displayindicationsincludethefollowing:
-Batterylowalarm
-Burnoutalarm
-MAXHOLD:'MAXHOLD'isdisplayedatthelowerrightoftheLCD. |
| Operatingenvironment | Ambienttemperature/humidityrange:0to40oC,20to90%RH(withoutcondensation) |
| Environmentalconditions | Applicableratedpollutiondegree2(AccordingtoIEC/UL61010-1) |
| Dimensions | 68(W) x 140(H) x 38(D)mm |
Note :When battery low alarm appears, be sure to replace the battery. Failure to do so will result in incorrect temperature measurements.
(This one is high quality model make in China, but our component is the same as the original as well as the functon, please rest assured if you want to find aSoldering Iron Tip Thermometer~ this one can work well for you. )

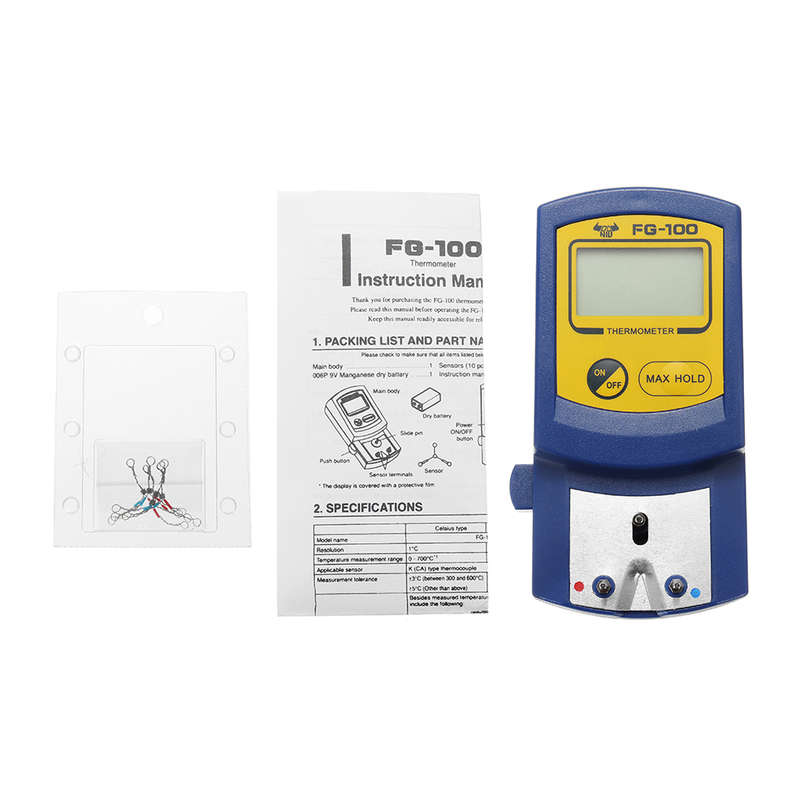

Package includes : 1 x DANIU FG-100 Soldering Iron Tip Thermometer
1 x 9V Battery

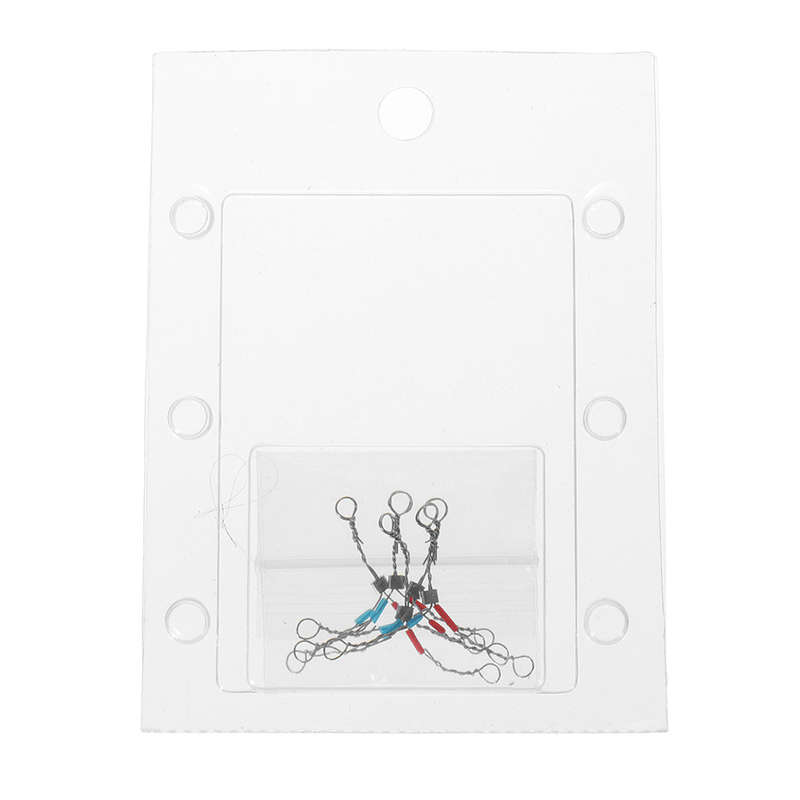

5 x Lead Free Senor Set

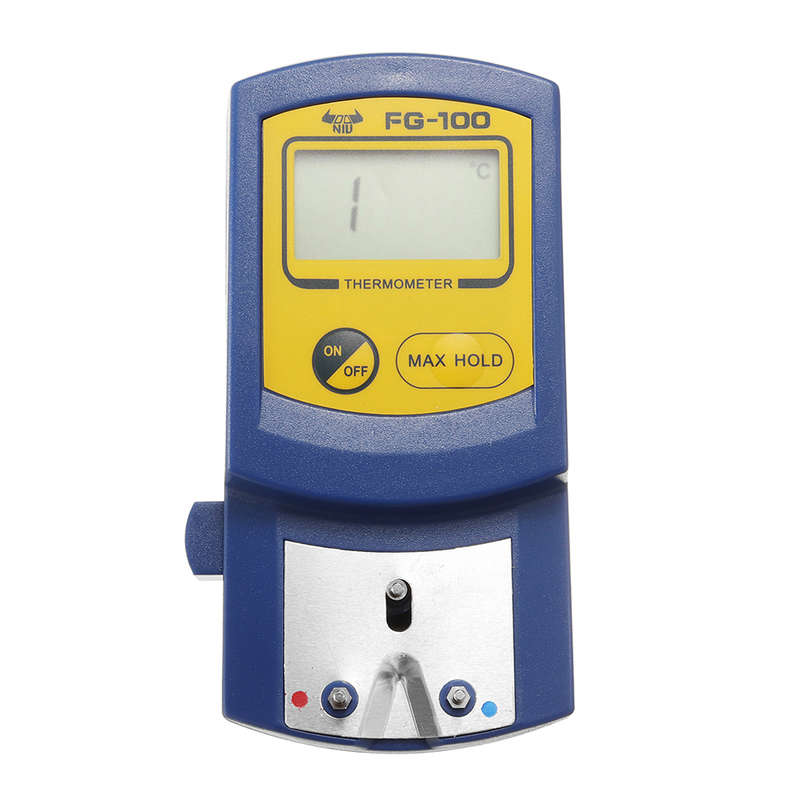

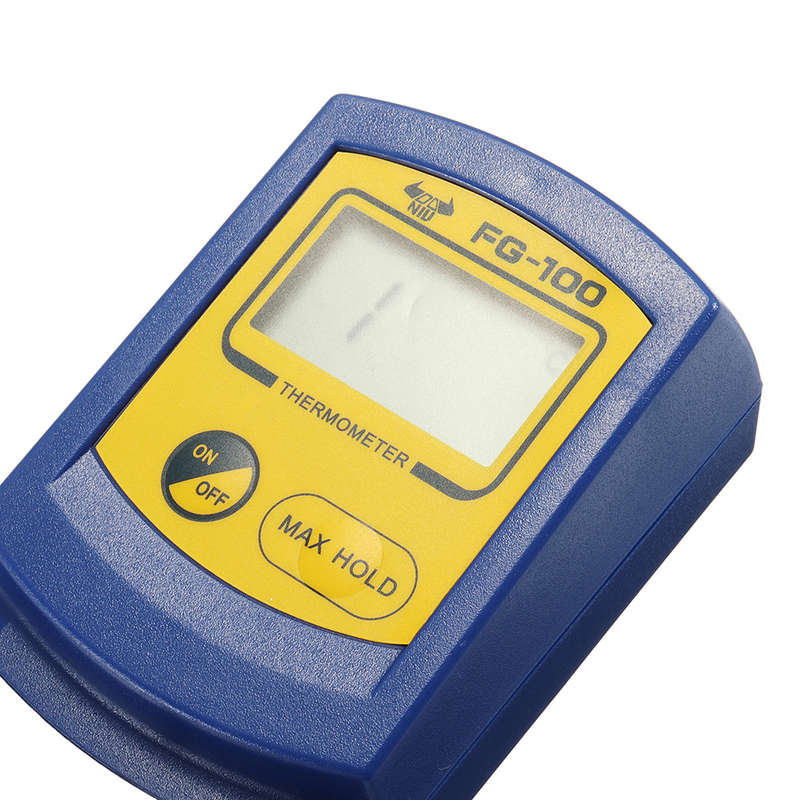

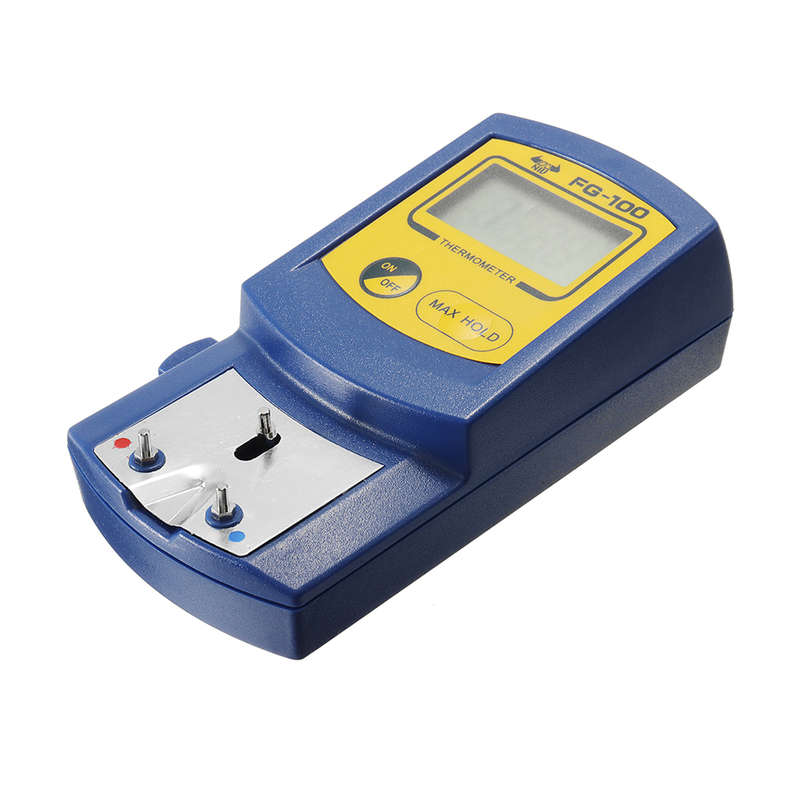

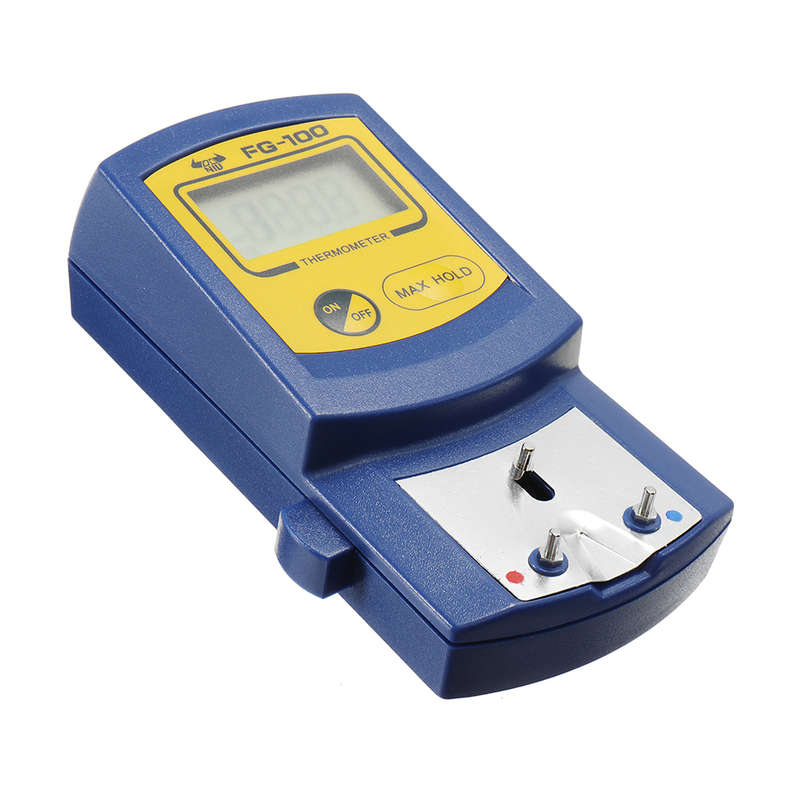

Details pictures :
