Ecco 6.2kw Invertor 51V Lithium Battery, 6 580w Solar Panel and Socket Set

High Voltage VDC500V
6.2KVA/6200W 100A Pure Sine Wave Solar Inverter

Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 120A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Non Parallel
- RS485 Communication for BMS
- Battery Equalization Function to Optimize Battery Performance and Extended Lifecycle

Specifications:-

Inverter Mode
- Rated Power: 6200VA / 6200W
- DC Input: 48VDC, 127A
- AC Output: 230VAC, 50/60Hz, 23.9A

AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 40A
- DC Output: 54VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 23.9A

Solar Charge Mode
- Max. PV Array Power: 6200W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 120A

Ingress Protection: IP21 (Indoor Use)

Dimensions ; 38 x 55 x 20 cm
Weight : 9.65kg
Battery Specs

LFEI-51.2V 100AH
Rated Capacity 100ah
With Display Screen
Intra system Balancing
Flame retardant
Automatic Over Charge Protection
20 year Design Life
IP31 Class
19" std cabinet or can be wall mounted
It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results.

Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations.

Solar Panel Specs

580W Maximum Power
Mono Solar Cell
Anodized Aluminum Alloy
46.53V Operating Voltage
21.1 Module Efficiency
13.89 Amp Operating Current
49.95 Operating circuit voltage
-40C - +85C Operating Temperature

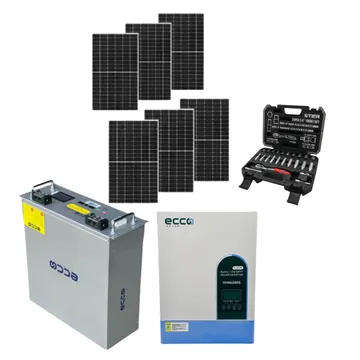

What's in the box
1 x ECCO 6.2KW Inverter
3 x Connecting Cables
2 x User Guide
1 x 51v/100ah Lithium Ion Battery
6 x Ecco 580w Solar Panel
1 x Stier Socket Set
