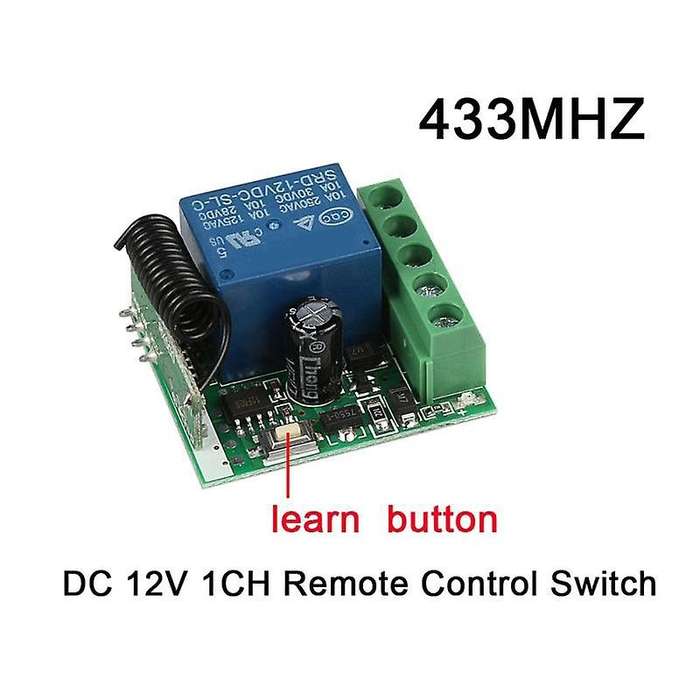

DC 12V 1CH 433MHz Universal Wireless Remote Button Module Diy Kit

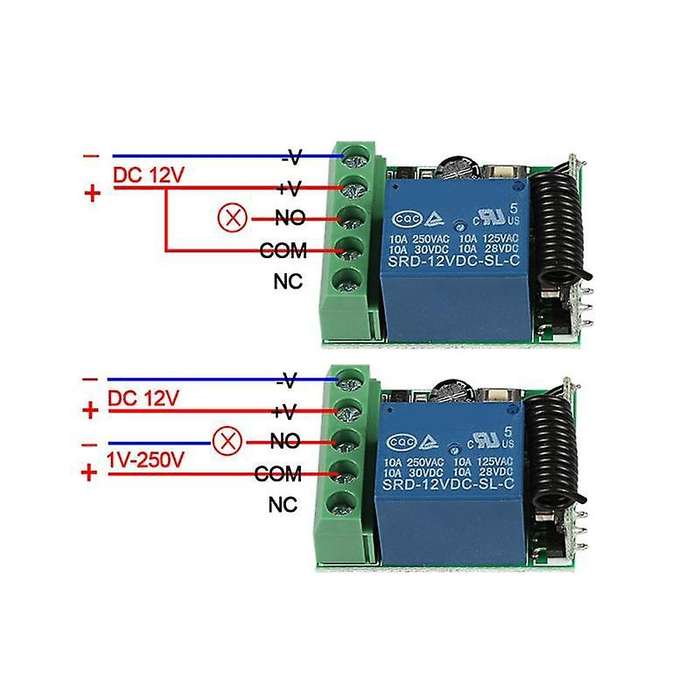

Support Multiple Working Mode: Momentary, Toggle, Latching and Time Delay Mode.Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).Support storing the quantity of remote control: 25Pcs (NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs , the initial remote control will be lost).RF Working Mode: Superheterodyne Reception(Modulation Mode: ASK).Perfect suitable for remote control of roller shutter door, garage door and other telecommand equipmentsModel: KR1201AProduct Type: Single Channel Remote Control SwitchRF Working Mode: Superheterodyne ReceptionModulation Mode: ASKWorking Mode: Momentary, Toggle, Latching and Time Delay Mode.Input Voltage: DC 10 ~ 14VRF Frequency: 433MHzQuiescent Current: 5mAReceiving Sensitivity: Greater than 97dbmRemote Control Range: Greater than 100m (Free Space).Wired Connection Way: Fixed Wiring Pillar.Decoding Mode:MCU Software Decoding.Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )Wiring Diagram 1:+V: 12V + (Input).- V: 12V - (Input).NO: Normal Open(Output).COM:Common(Output).color: as the pictureMaterial: plasticPackage Contents:1 * KR1201A Single Channel Remote Control Switch1 * ShellOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
