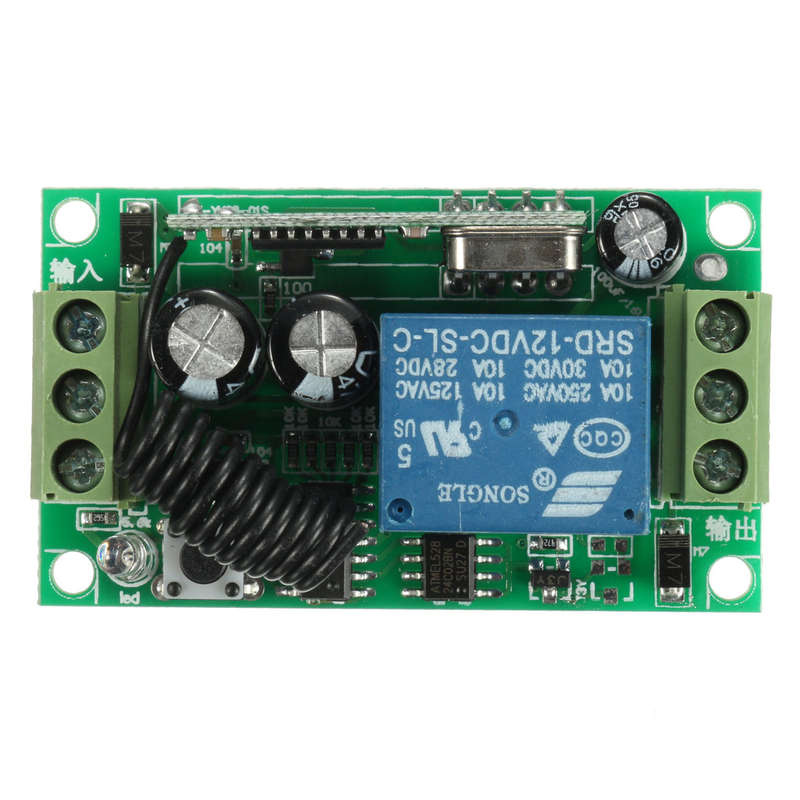

DC 12V Wireless RF Remote Control Relay Switch Universal Receiver with Transmitters For Garage Door

Introduction: - Dual mode 1 channel radio frequency remote control system.
- Learn how to program for garage door remotes or other remotely controlled needs.
- A full remote controller replacement is often the better option than to repair faulty ones.
-Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control. Feature: - Low power - LED indicator light
- Auto code learning - Stable performance - Easy to install and easy to use
- Works in a multitude of different systems

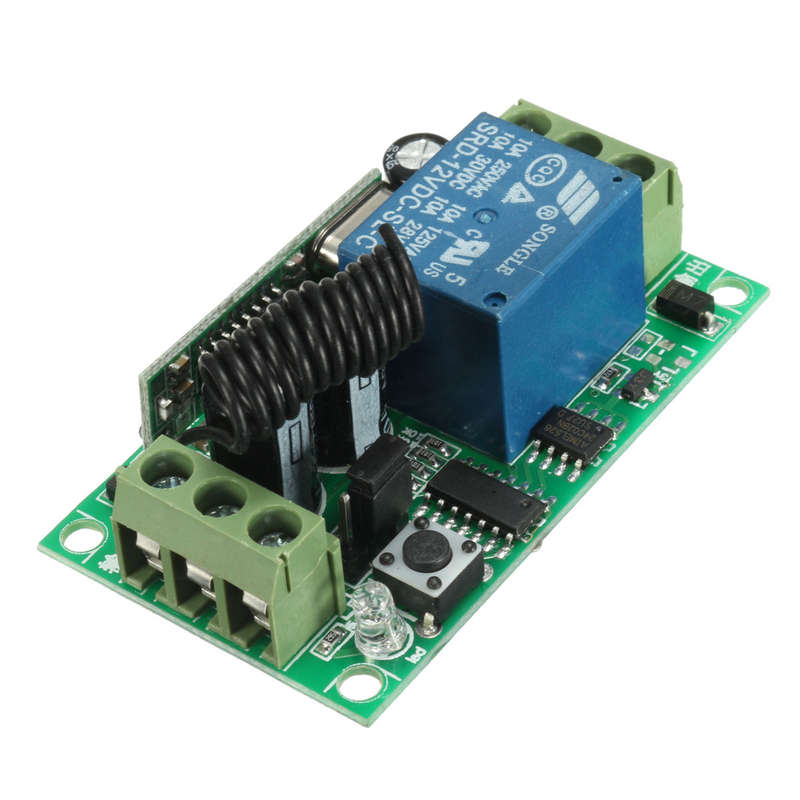

- Coding: 16 different cords, if you have more, it will delete the cord at the begining that you set. - Fit for: Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs Receiver Specifications: Channels: 1
Frequency: 315MHz
Sensitivity: a-95dBm
Output Current: <10A Working voltage: 12V DC

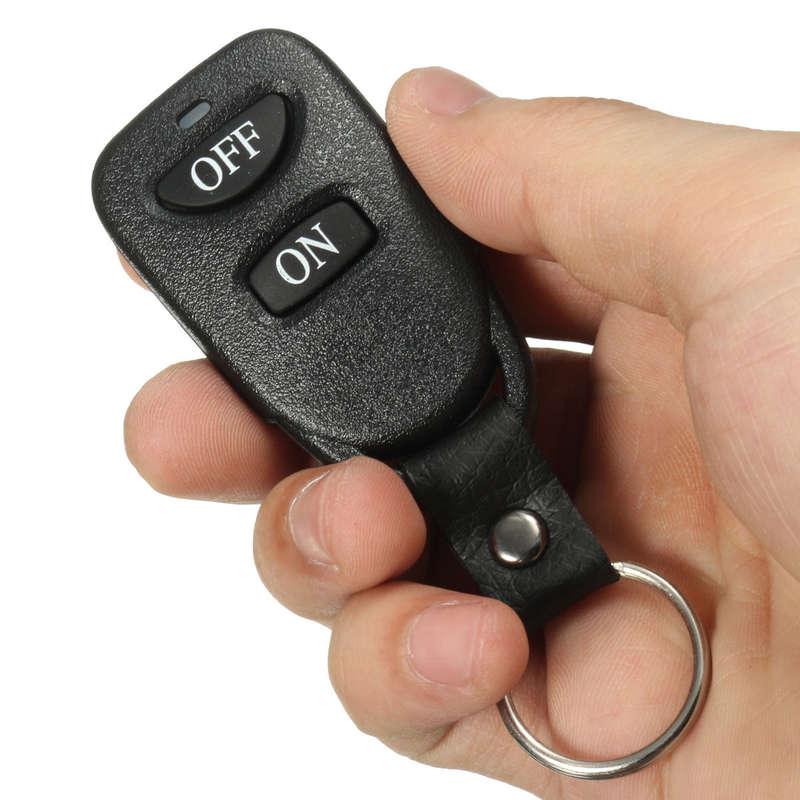

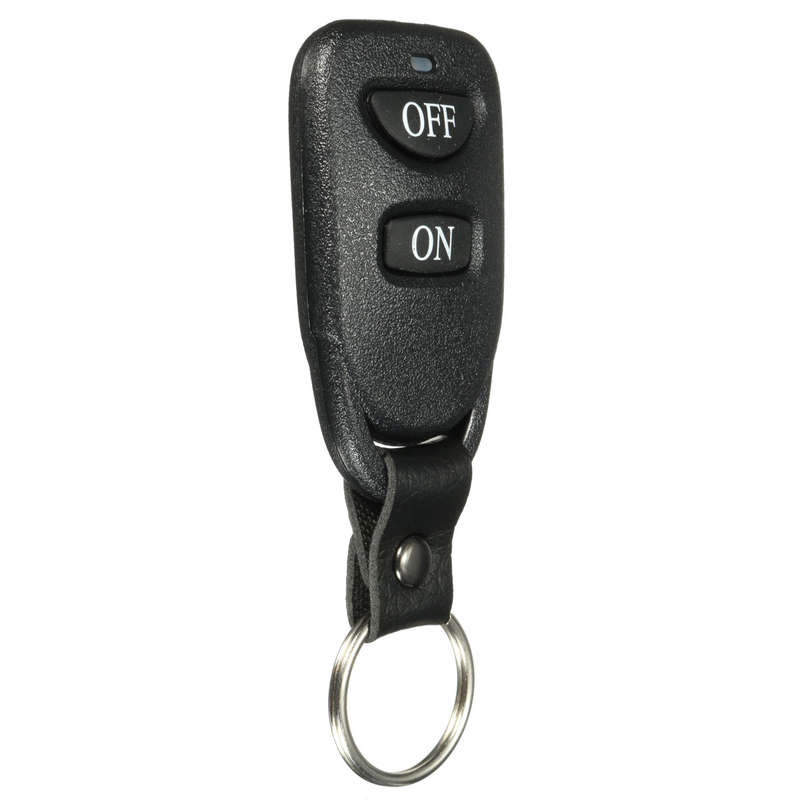

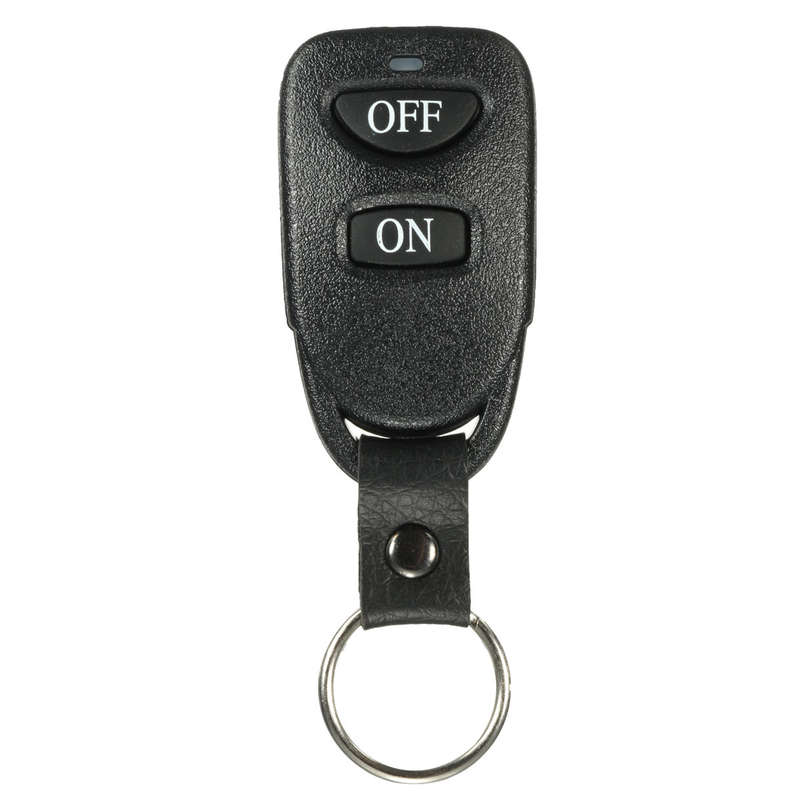

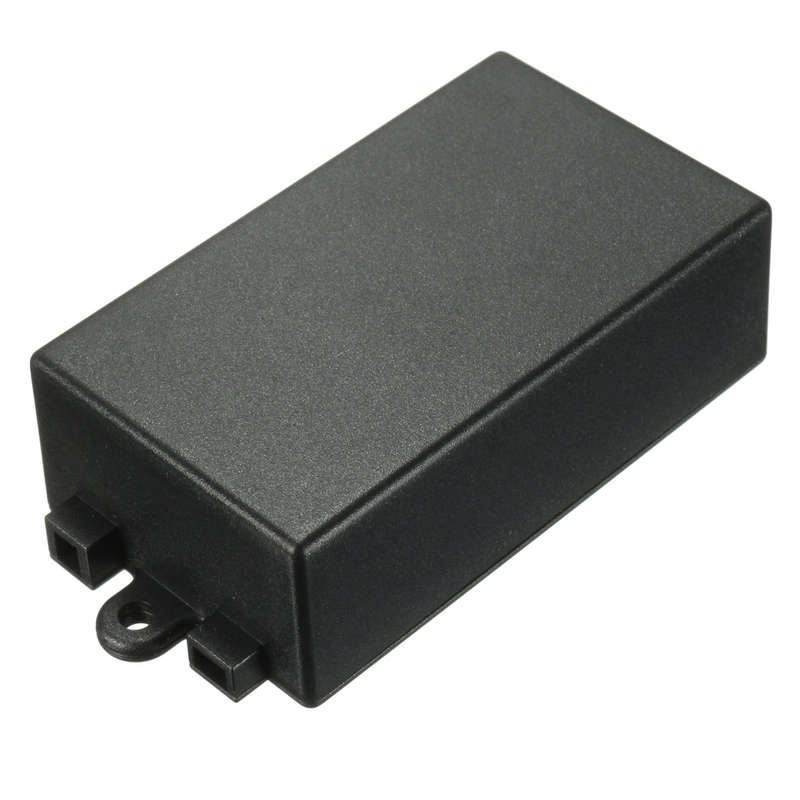

Power consumption: <10mA Dual mode: momentary/toggle Dimensions: 65 x 38 x 22mm (2.5 x 1.5 x 0.9a) Remote Control Specifications: Voltage: DC 6V Current: < 15mA
Bottom: ON/ OFF

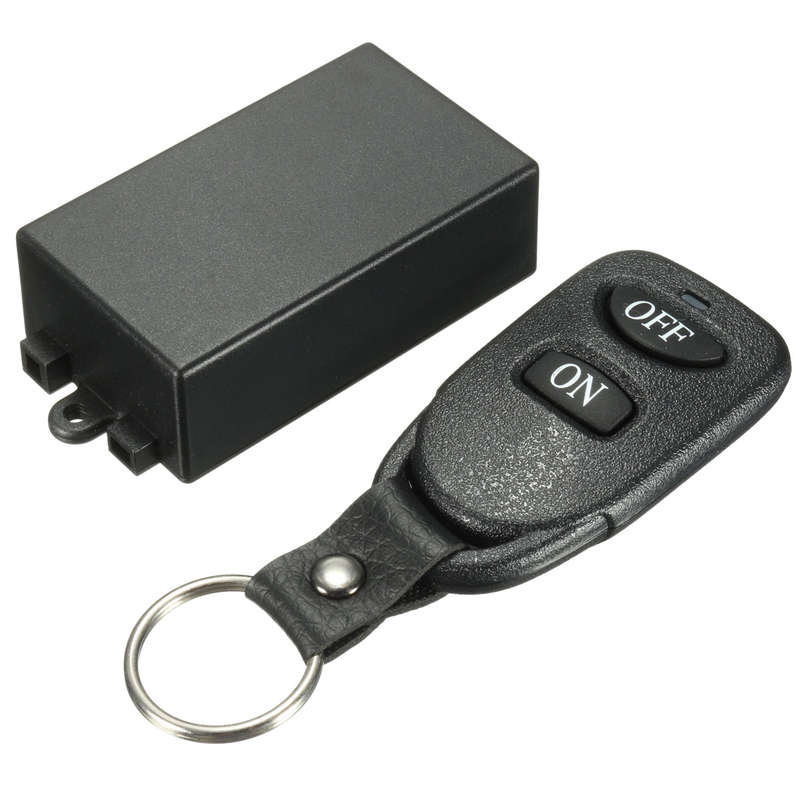

Size: 62x34x10mm Frequency: 315MHz Shock Resistance: 4.7 Range: 50-100 meters (Open Space) Learning Method: 1. After power on, the indicator light is always on. Then, you press the learning cord 2 or 3 seconds, and the indicator light power off. 2. Release the learining cord, and press the any key of remote control. 3. After the indicator light have 5 times flash, it shows that you are successed in learning. Remove Method: -Press the learning cords about 8 seconds, and the indicator light return being power on that shows the learning cord remove. Package Included: 1x Receiver 1x Remote Control
