DC 5-12V 30A PWM Dual Channel Motor Control Module H Bridge Motor Drive Controller Board DHB-1A Reve

New

20 available

R682.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3924

92.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651226220

Description:

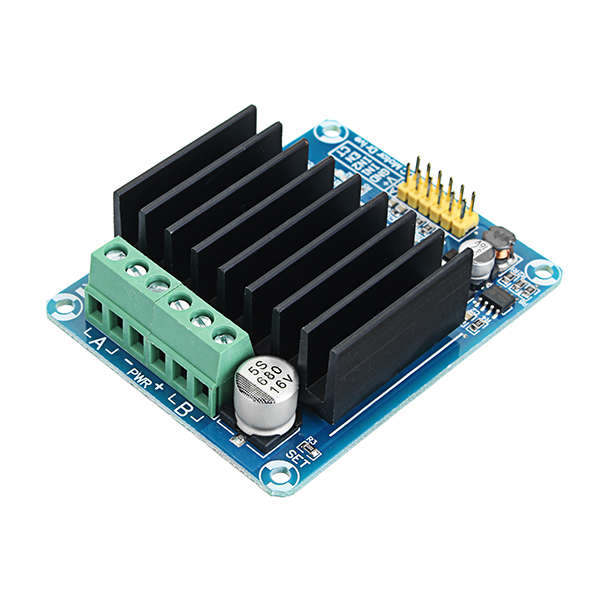

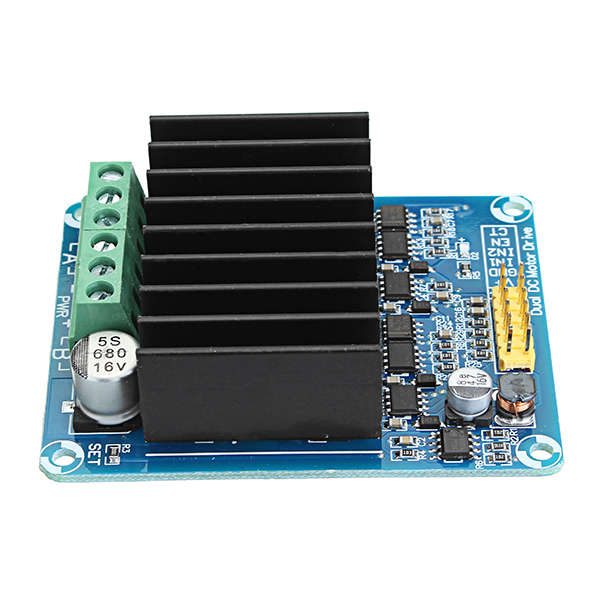

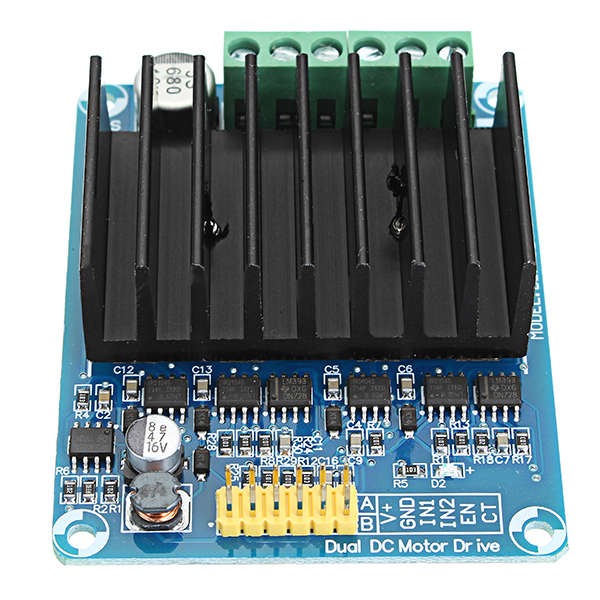

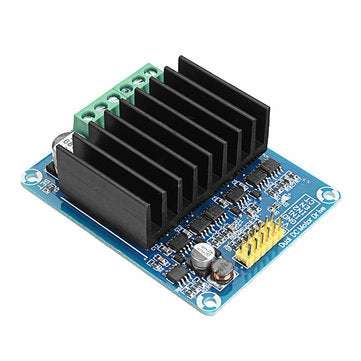

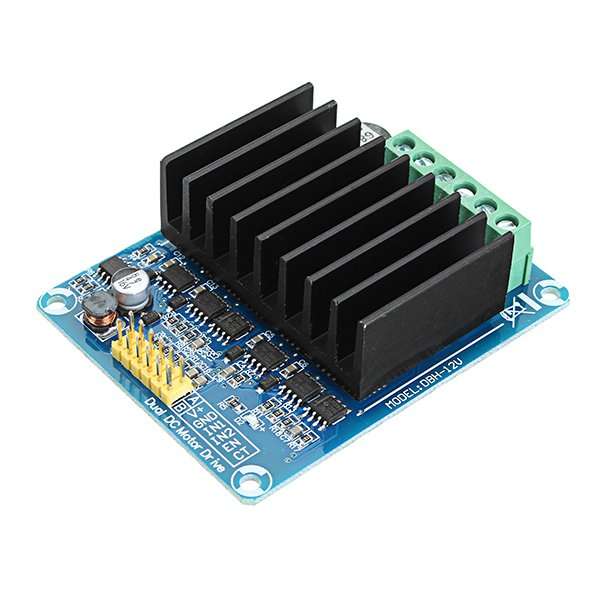

This module is a motor control module which can be used to control ordinary DC motor, smart car motor, etc. Compact size, light weight.

Features:

Can be used to control ordinary DC motor, smart car motor, etc.
Reversible control and PWM speed control.
High speed switch design.
Ultra low internal resistance, low heat.
Operating voltage: DC 5-12V; operating current: 0A-30A(Max)/each channel.

Specifications:

Operating Voltage: DC 5-12V
Standby Current: <30mA&pm;5mA
Current: 0A-30A(Max)/each channel
PWM Mode: Duty Cycle: 0-98%; Frequency: General Motors: 16kHz; Coreless Motor: 80kHz; TEC: 500Hz-80kHz
Input Voltage Level: Low:0-0.5V; High: 2.5V-13V(typical drive level: 3.3V, 5V, 12V)
Current Sampling: CT Pin Output Voltage(V)=Current(A) x 0.155
Item Size: 6.2 x 5.3 x 1.8cm / 2.44 x 2.08 x 0.71inch

Package included:

1 x DC 5-12V 30A dual channel motor control module
