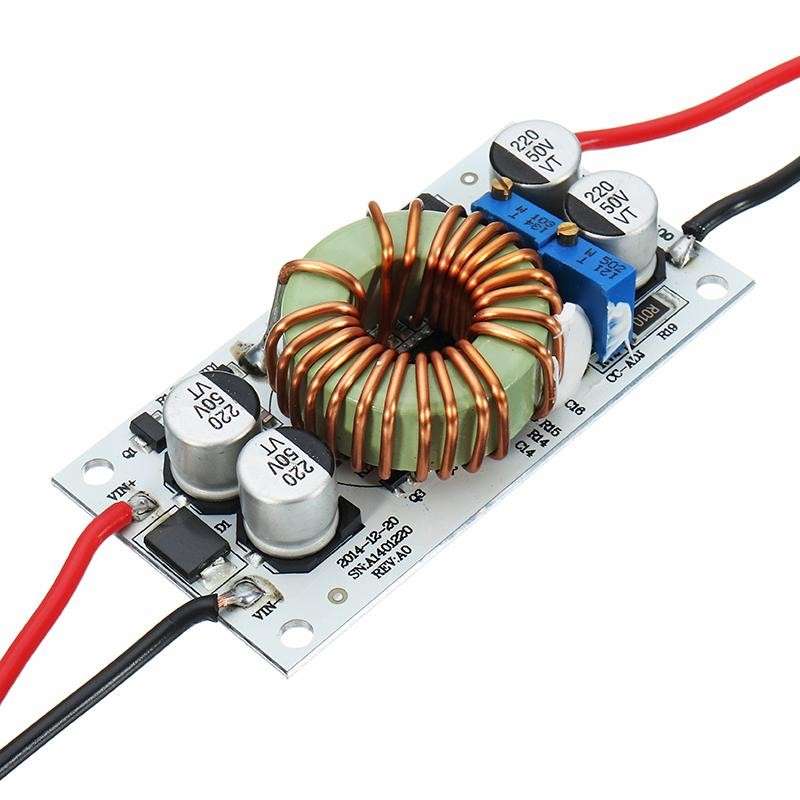

DC to DC Converter Boost step up module 10A

• Module name :250W boost constant current module
• Module properties: non-isolated step-up module (BOOST)
• Input voltage: DC8.5V-48V
• Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
• Quiescent current: 10mA (12V liter 20V, the output voltage, the higher
• the current will increase too quiet)
• Output voltage: 10-50V continuously adjustable
• Constant] range: 0.2-8A
• Output power: = input voltage * 10A, such as: input 12V * 5A = 60W, input 24V * 5A = 120W, input 36V * 5A = 180W, input 48V * 5A = 240W,
• Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
• Operating frequency: 150KHz
• Conversion efficiency: up to 96%
• Over-current protection: yes (input exceeds 13A, the output voltage is automatically reduced, and there is a certain range of error.)
• Input reverse connection protection: yes, (less than 5A if you need more reverse current, please connect a diode in the input)
• Installation: 4PCS 3mm screw holes
• Wiring method: wiring output (send wire)
• Module size: About Length 70mm width 36mm height 13mm

Applications:

1, DIY a power supply, 12V can input and output can 12-50V adjustable.

2, the power supply for your electronic device, according to your

system can set the output voltage value.
