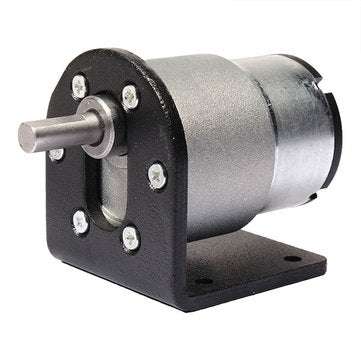

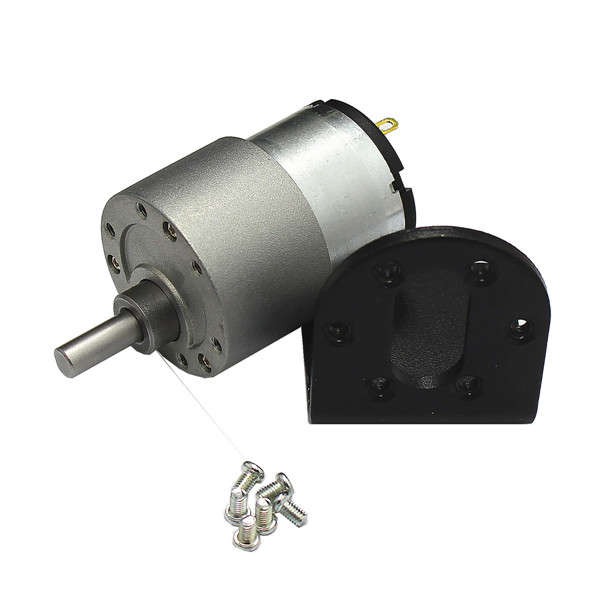

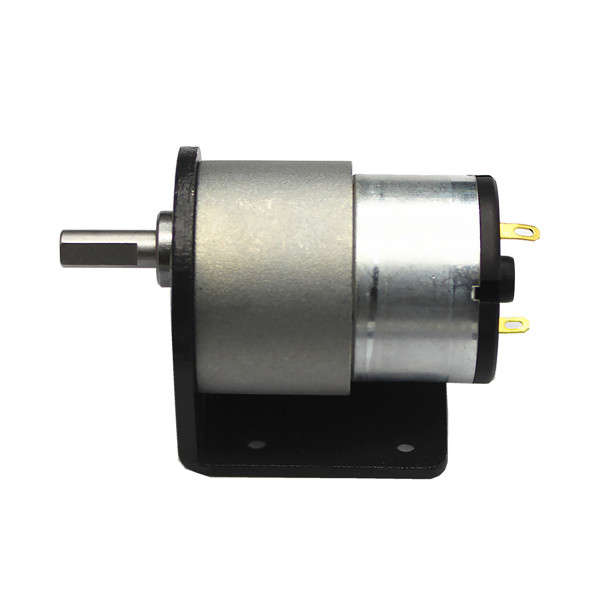

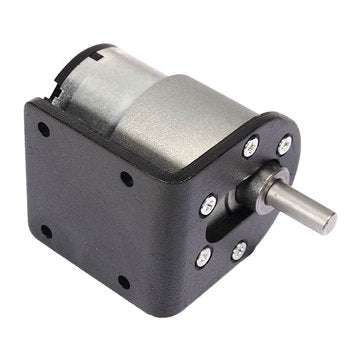

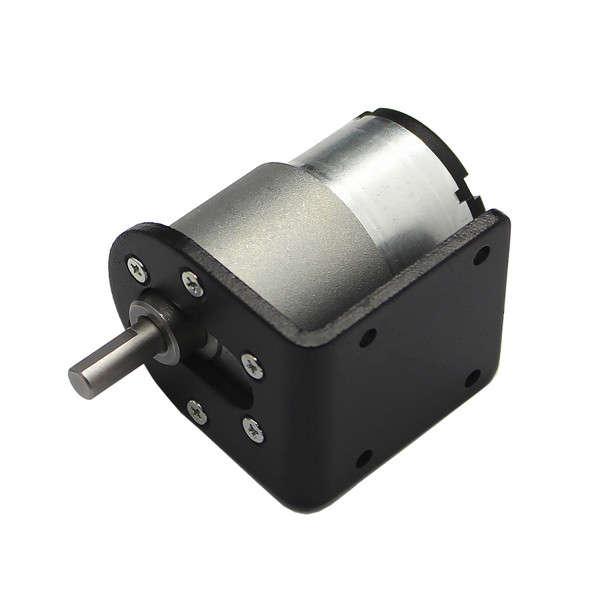

DC12.0V 85rpm Mini Gear Motor Electric Gear Box Motor

New

20 available

R482.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3827

92.67 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

648365543

Description:

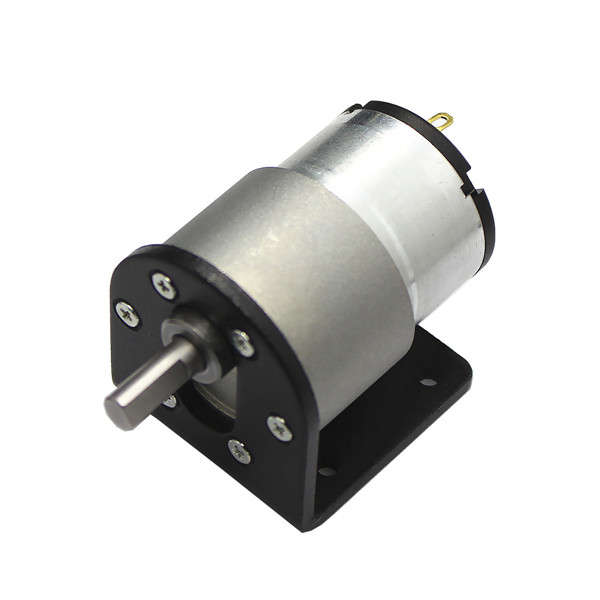

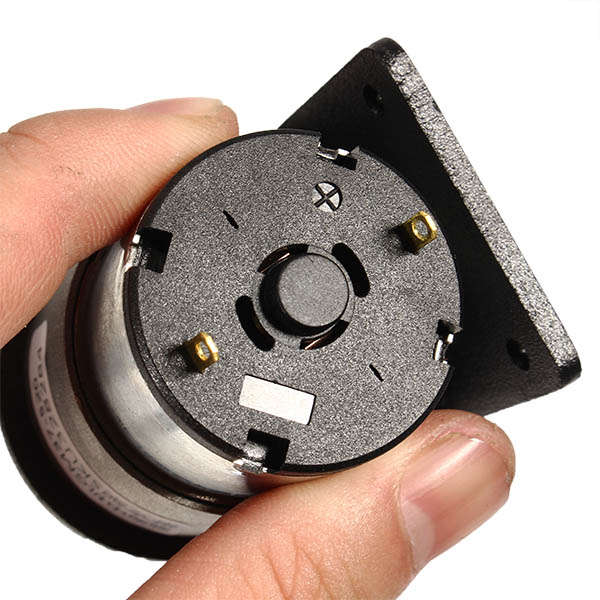

DC12.0V 85rpm Mini Gear Motor Electric Gear Box Motor

Specification:
Material:Iron+ steel+ nylon
Voltage: 12.0V
No-load Speed: 85rpm

1. Standard Operating Conditions

Item	Specification	Test Method
Rated Voltage	DC 12.0V	Multimeter
Gear Ratio	1/86
Rotation	CW	Handle
Motor Position	All position in horizontal	Handle
Temperature	0 - 30 Degree Celsius	Thermometer
Humidity	30% - 95%	Hygroscope

2. Performacnce of Motor

Item	Specification	Test Method
No-load Speed	7500 +/- 10%rpm	Flash Speed Indicator
No-load Current	55mA (Max)	DC Power Supply
Stall Current	1500mA(Max)	DC Power Supply
Stall Torque	190g.cm	Torque Measure

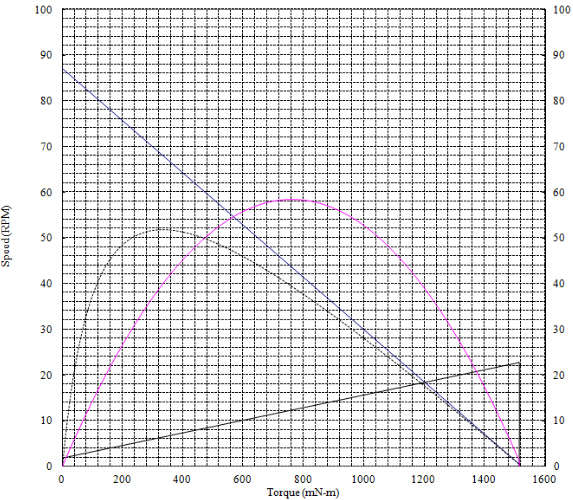

3. Performance of Gear Motor

tem	Specification	Test Method
Output Speed	85+/- 10%rpm	Flash Speed Indicator
No-load Current	100mA(Max)	DC Power Supply
Stall Current	1500mA(Max)	DC Power Supply
Stall Torque	14kg.cm	Torque Measure
Rated Torque	2500g.cm	Torque Measure
Rated Current	300mA(Max)	DC Power Supply
Rated Speed	72+/- 10%rpm	Flash Speed Indicator
Noise	52dB	Digital Sound Levd Meter

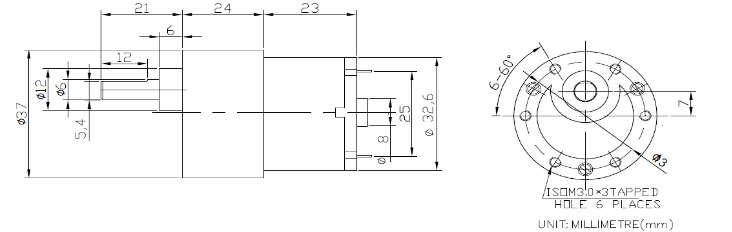

4. Dimension

tem	Specification	Test Method
The outside Shaft Length	21mm	Vernier Calipers
Shaft End Play	0.05 - 0.50mm	Frock
Screw Size	M3.0 (Allow the depth 3mm)	Frock
Diameter of Shaft	6 x 12mm	Vernier Calipers

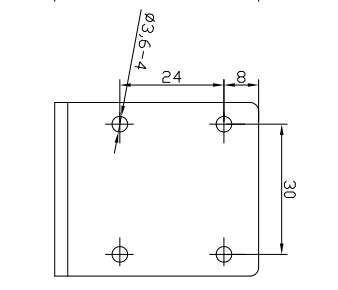

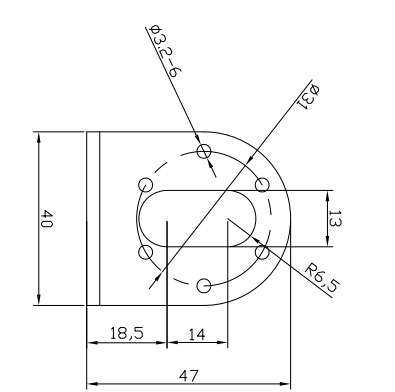

Outline Mounting Dimension	Refer to the outline Drawing	Callipe
