DC12V 100RPM Mini Metal Gear Motor Electric Gear Box Motor

New

20 available

R454.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3837

92.69 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

648365563

Description:

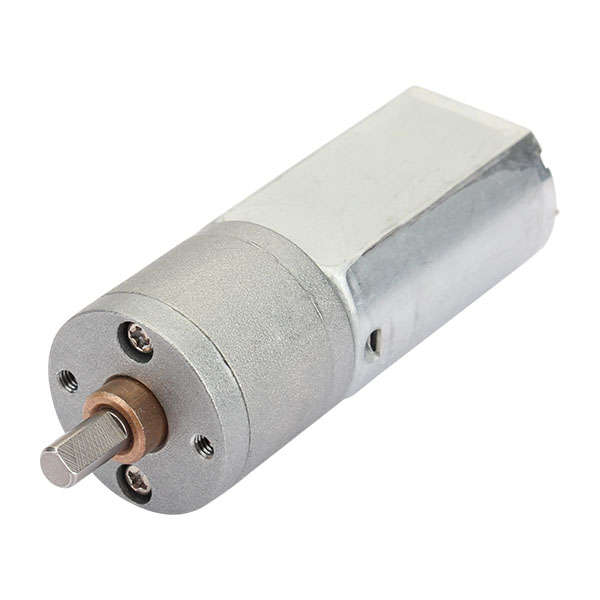

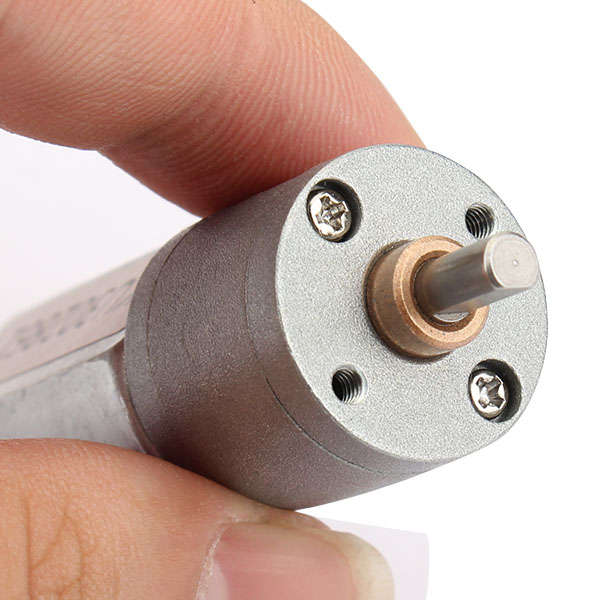

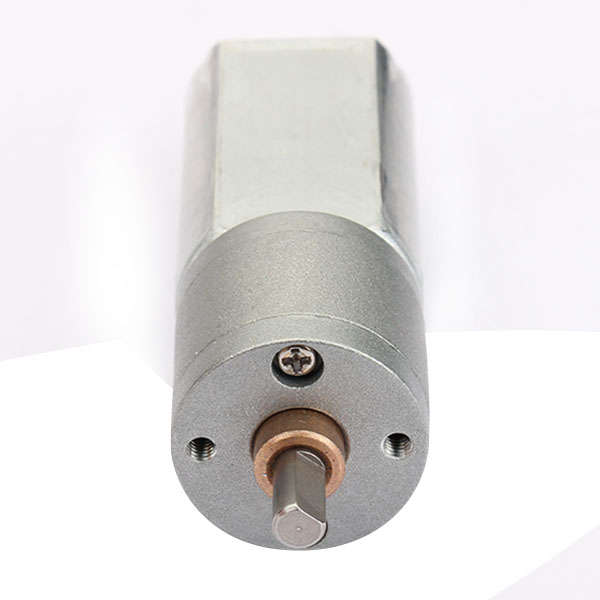

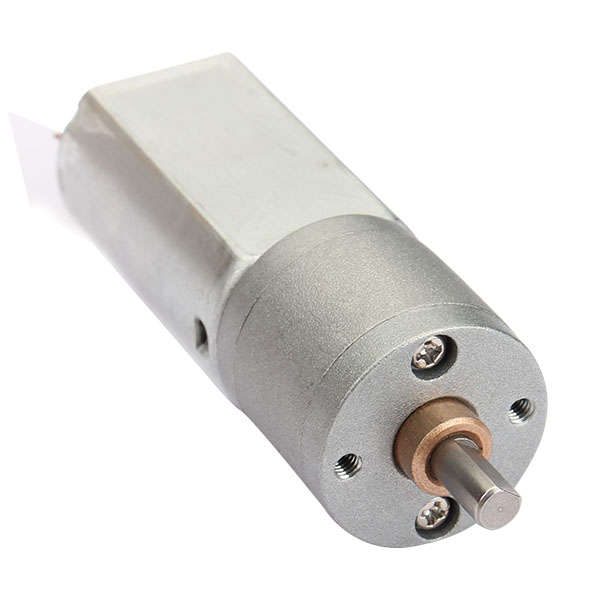

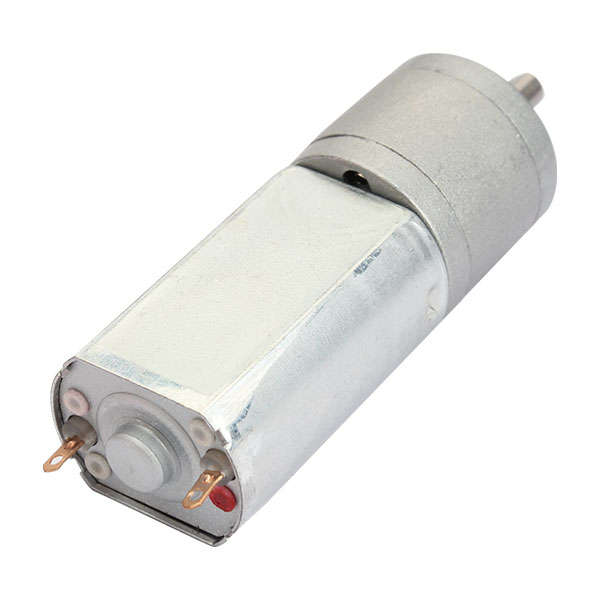

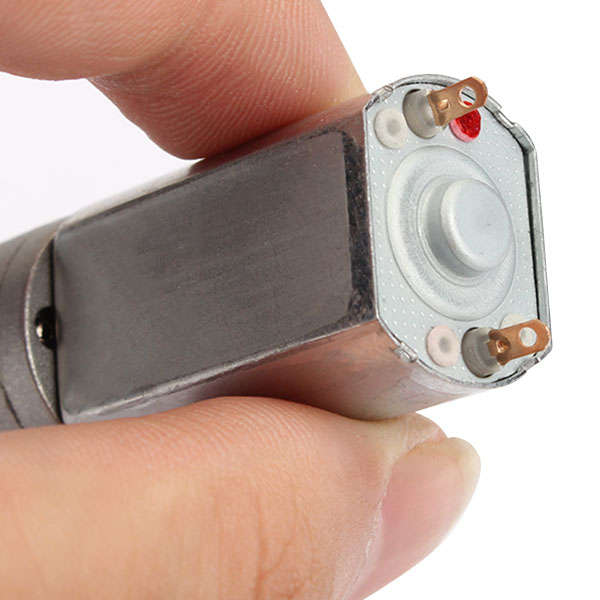

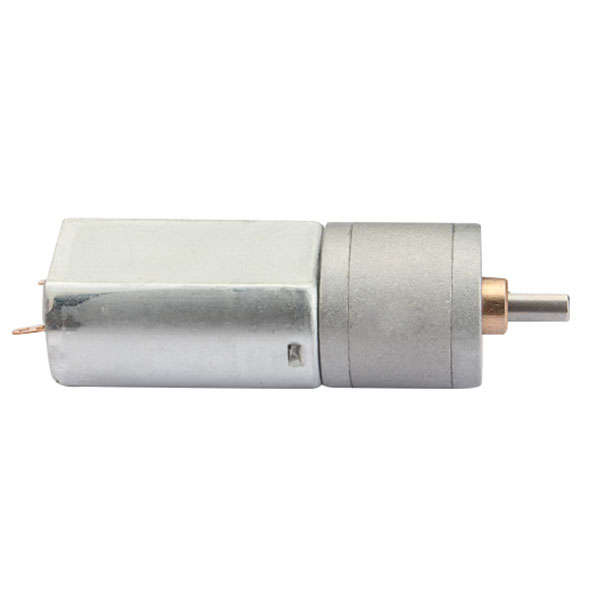

DC12V 100RPM Mini Metal Gear Motor Electric Gear Box Motor

Specification:
Voltage: DC12.0V No-load speed: 100RPM Shaft diameter: 4mm Axial length: 10.5mm

1. Standard Operating Conditions

Item	Specification
Rated Voltage	DC 12.0V
Gear Ratio	1/100
Rotation	CW & CCW
Motor Position	All position in horizontal
Temperature	0 - 30 Degree Celsius
Humidity	30% - 95%

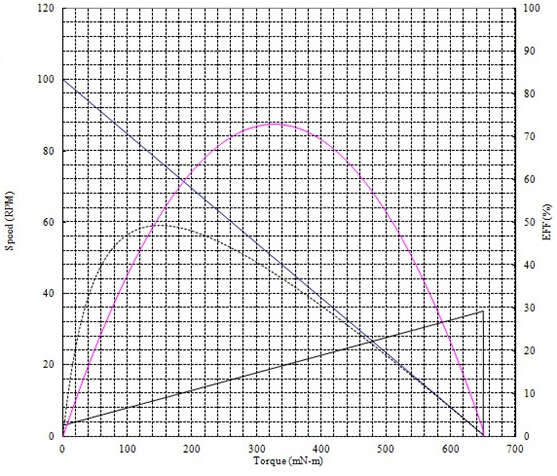

2. Performance of Motor

Item	Specification
No-load Speed	10000 +/- 10%rpm
No-load Current	95mA (Max)
Stall Current	1600mA (Max)
Stall Torque	100g.cm

3. Performance of Gear Motor

Item	Specification
Outer Speed	100 +/-10%rpm
No-load Current	130mA (Max)
Stall Current	1600mA (Max)
Stall Torque	6.0kg.cm
Rated Torque	1000g.cm
Rated Current	280mA (Max)
Rated Speed	85+/-10%rpm
Noise	52dB

4. Dimension

Item	Specification
The Outside Shafft Length	10.5mm
Shaft End Play	0.05 - 0.50mm
Screw Size	M2.5
Diameter of Shaft	4 x 3.5mm
Outline Mounting Dimension	Refer to the Outline Drawing
