DC3.7V/5V/12V 315MHz Wide Voltage 2 Way Remote Control Switch Miniature Universal Learning Code Supp

Feature:

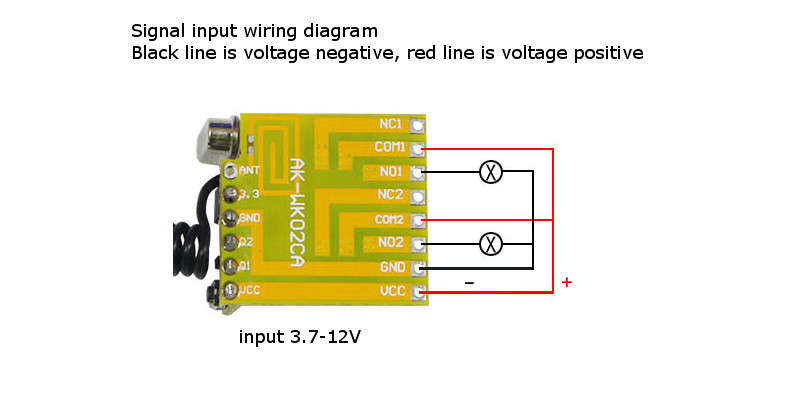

Product model: AK-WK02CA Product Name: Two micro controller Working voltage: 3.7V-12V (minimum 4V required for jog mode) Power consumption situation: Standby current is only 7MA, working is 30MA current Coding method: learn code pairing, can learn fixed code and learning code chip remote control Working frequency: 315MHz Working mode: Jog (default), self-locking, interlocking Load size: <= 1A (equipment within 12W for safe use) Product size: 20 x 22 x 12mm

How to use:

Learning method and step description: 1. Jog mode: Hold down the learning button, press the buttononcewhen the indicator light, short press A button, the indicator light flashes twice, then short press B button, the indicator light flashes twice, it is ajog mode'' Learning success. 2. Self-locking mode: Hold down the learning button,press the buttononcewhen the indicator light, press and hold the A button until the indicator light flashes twice, then immediately press and hold the B button, the indicator light flashes twice, then the self-locking mode learning success . 3. Interlock mode: Hold down the learning button,press the buttontwicewhen the indicator light, then press the A button until the indicator flashes twice, then immediately press and hold the B button, and the indicator flashes twice. Mode learning success. Code clearing method: Press and hold the learning button for about 8 seconds. The indicator light turns on (blinks 3 times) to off, that is, the code is successfully cleared. Tips: You must clear the code before you can switch to any work mode to learn

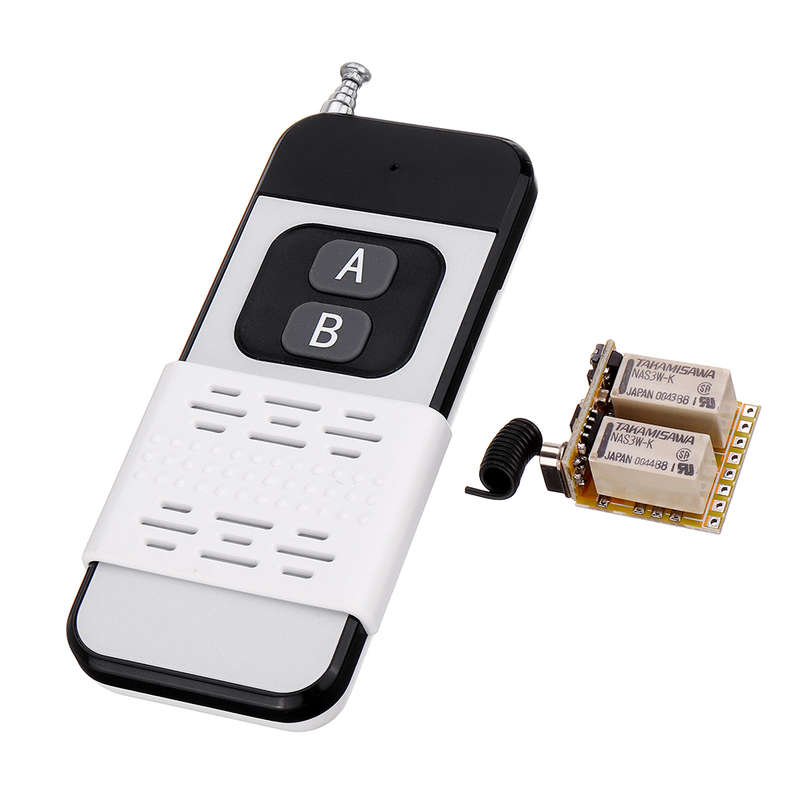

Package includes:

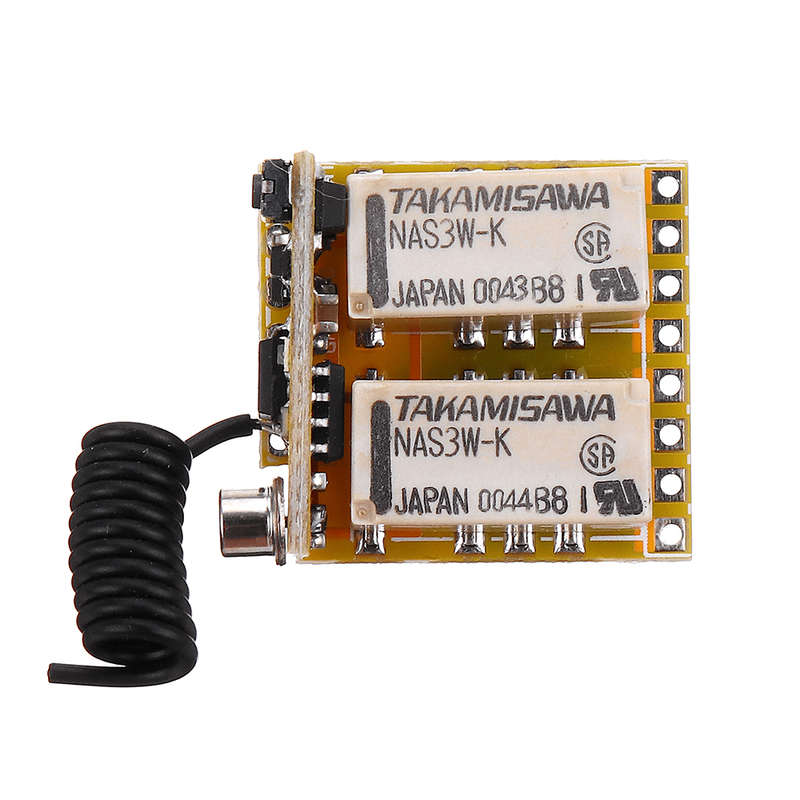

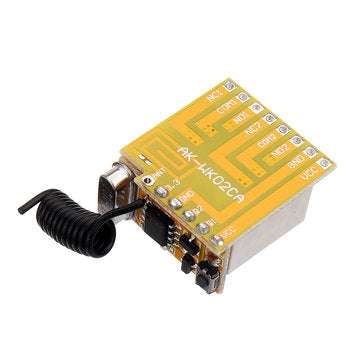

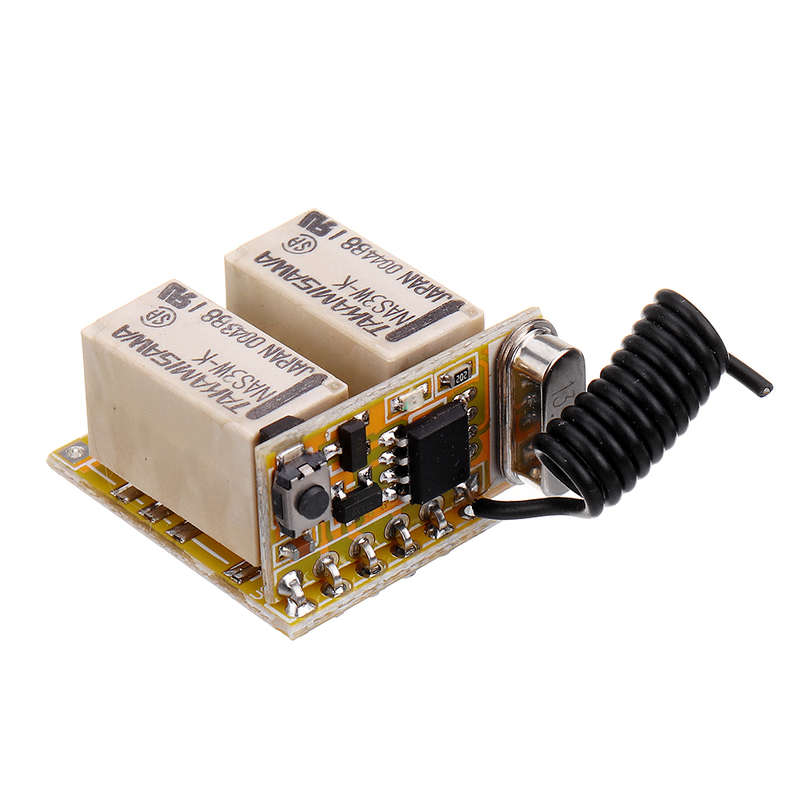

1 x Receiver board

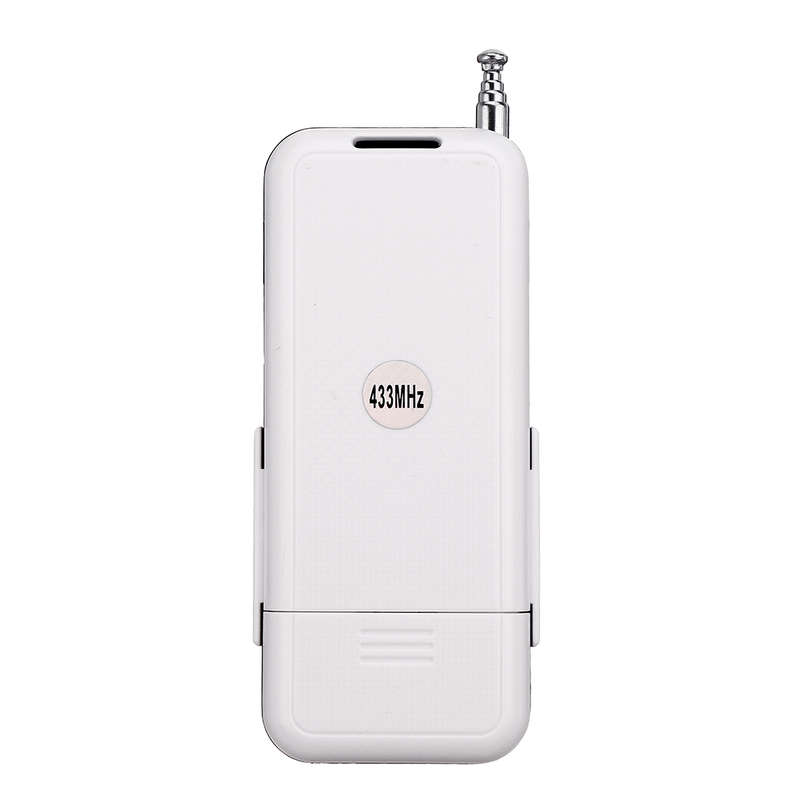

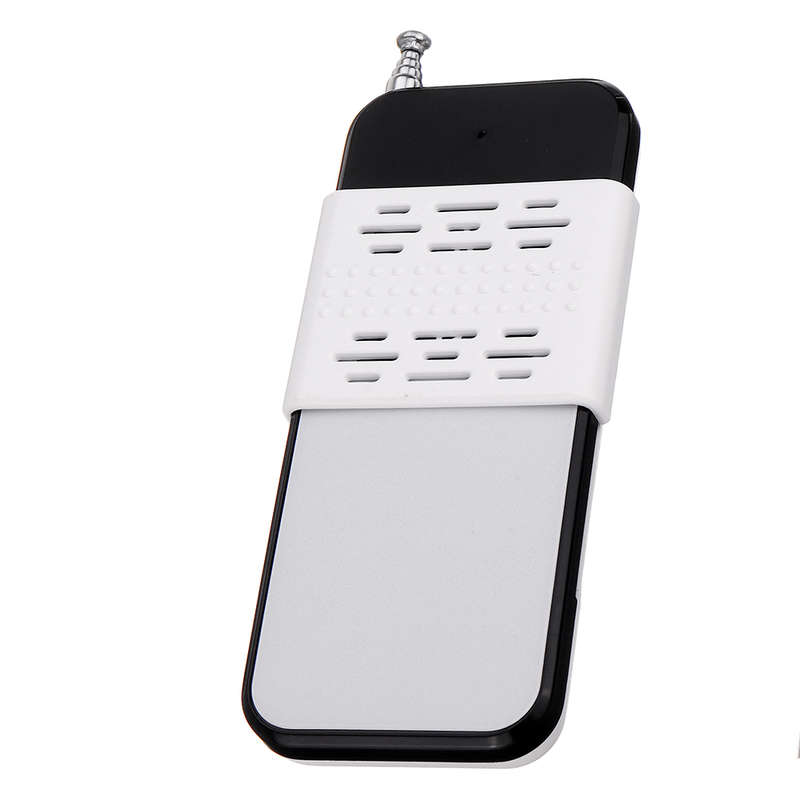

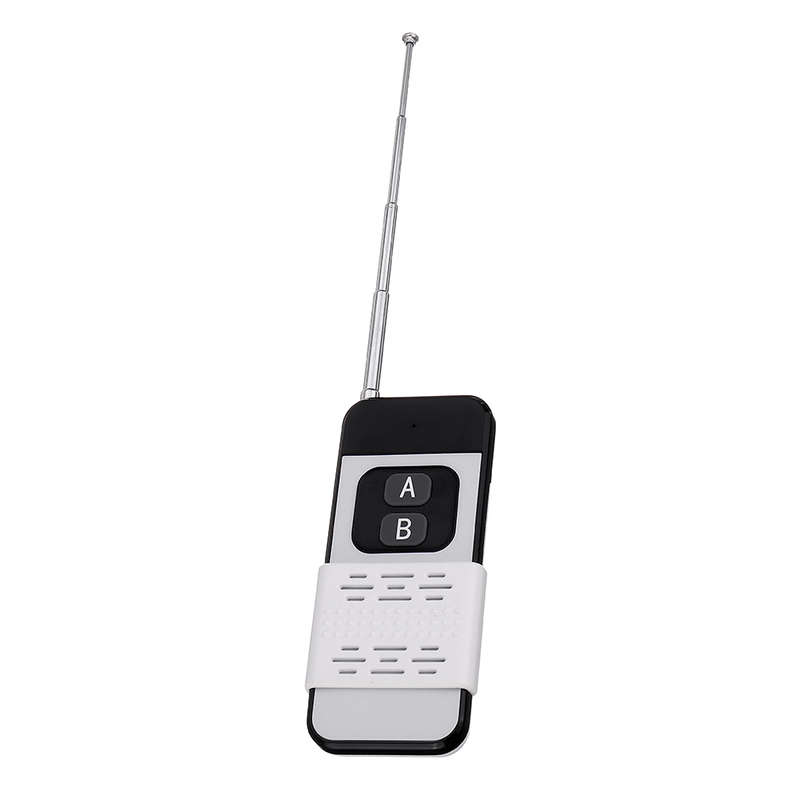

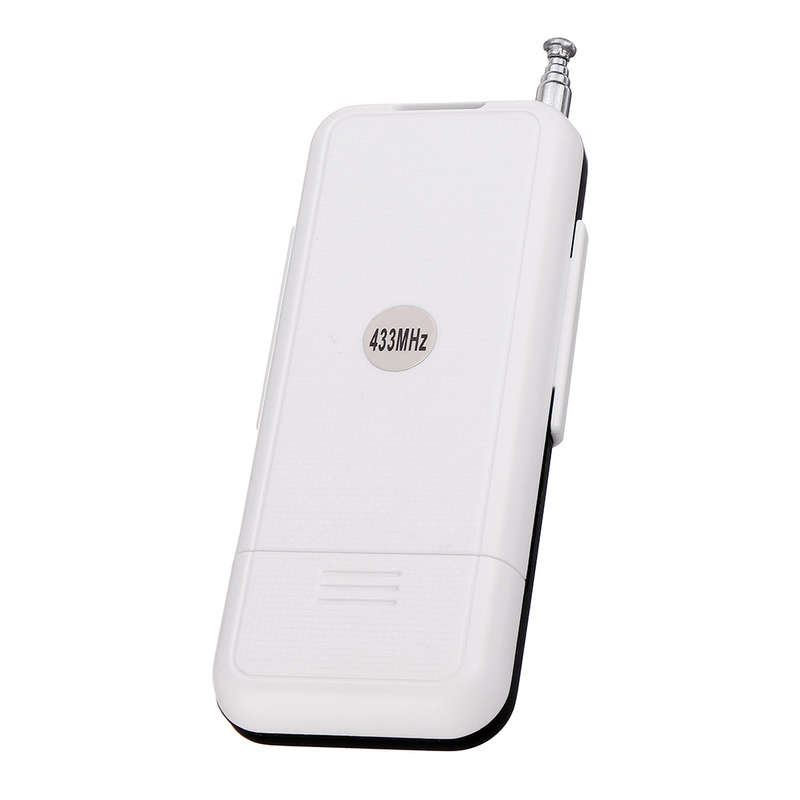

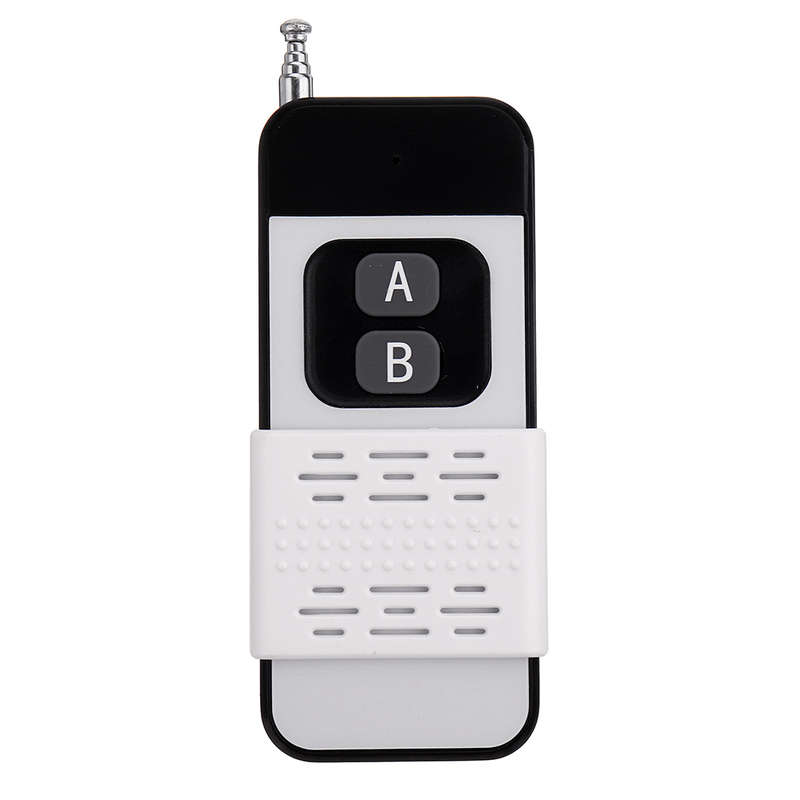

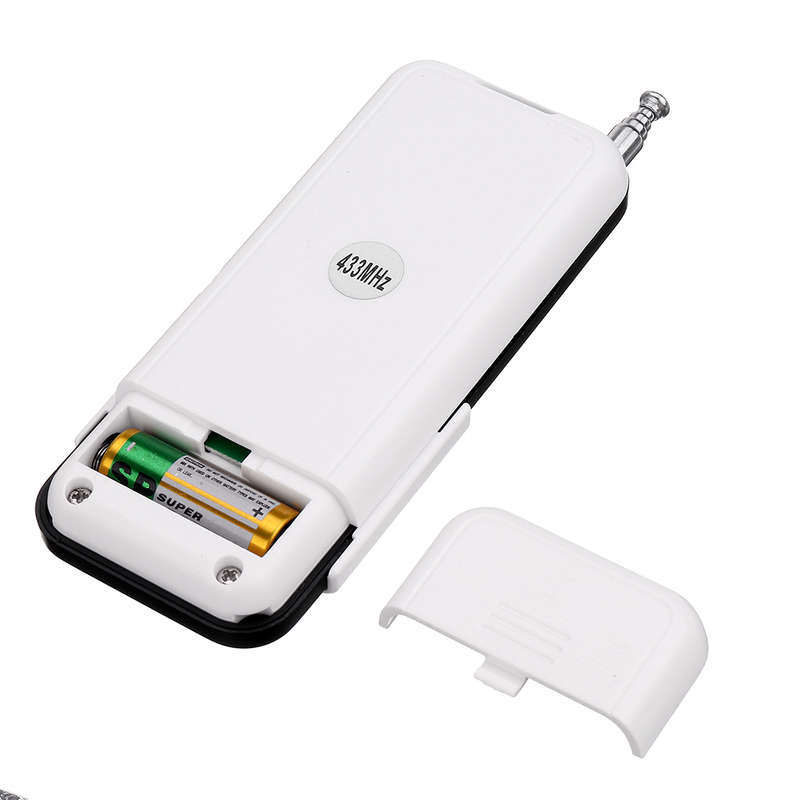

1 x Remote control
