DC5-24V LED RF Remote Controller For RGB 5050/3528 SMD LED Strip

Features:
1.Brightness adjustable
2.Adjust the light soft and stable, no flickering.
3.Easy to install and simple to use
4.Use for single color strip and LED lamps, such as wash wall lamp, glass curtain wall light
5.Constant voltage and constant current output

Specifications:
1.Input voltage: 5V-24V/DC
2.Output current: 3-way, peak 4A per channel
3.Speed Grade: 5 levels
4.Static Color: 20 Colors
5.Remote frequency:433.92MHz
6.Remote distance:>15m at open area

Description:

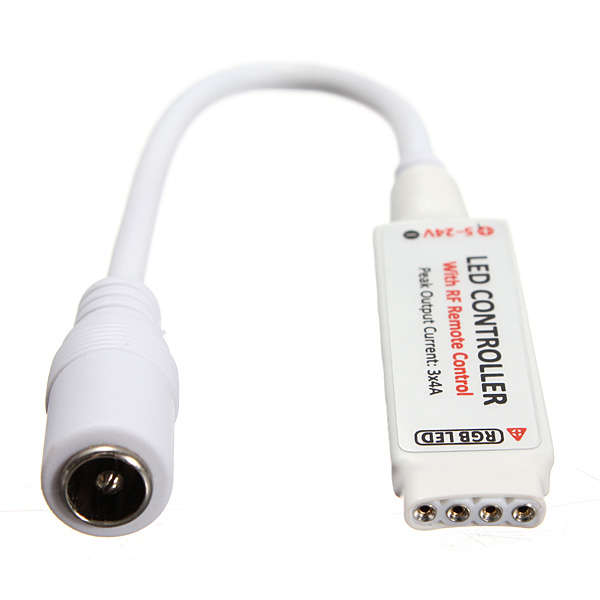

About the Mini Controller:
This mini controller is tiny in its size(easy to be concealed) but great in its function.Through connecting with this controller, it will be able to control the LED RGB strips by the accompanied RF controller,achieving different modes and colors.

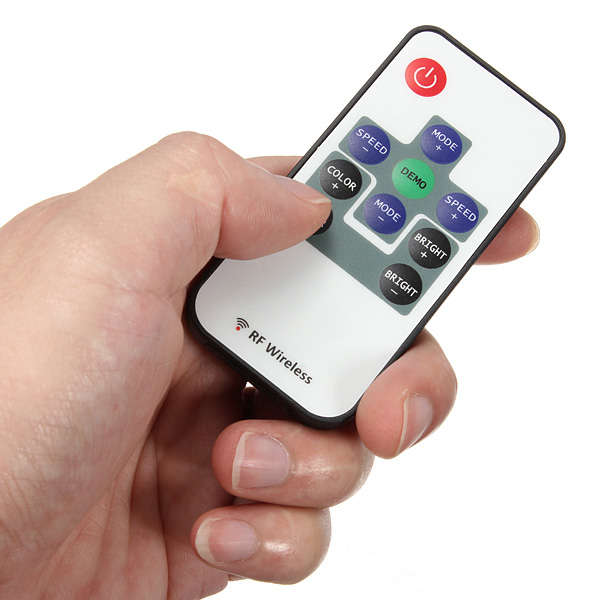

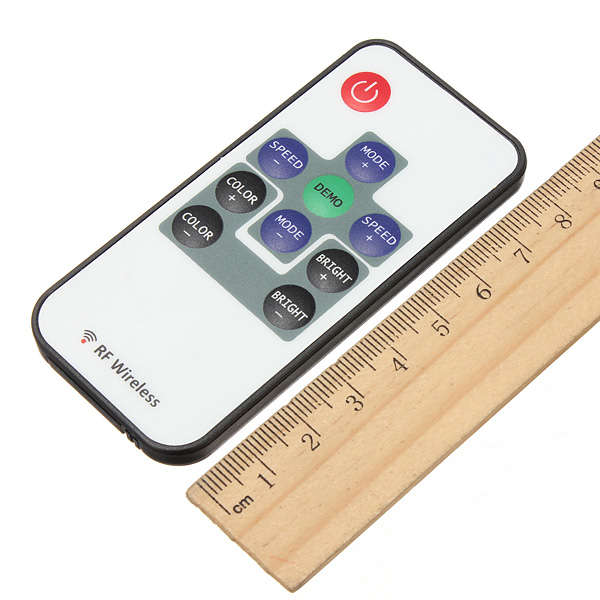

About the RF Remote:
The RF wireless remote signal can pass through barrier, it gets a longer control distance(about 15 meters at open
area) so it is not necessary to aim at the main unit when operating.

Function buttons on RF remote:
-ON / Standby: to turn ON or switch to standby mode
-MODE+ / MODE-: active mode adjustment. Switch toactivemode from static color mode, or change betweenactivemodes.
-SPEED+ / SPEED-: Adjust speed inactivemode for 5 levels.
-COLOR+ / COLOR-: Static color adjustment. Swith to static color fromactivemode,or between static colors, 20 static
colors.
-BRIGHT+ /BRIGHT-: adjust static color brightness. Strip will switch to static color if press it atactivemode.
-DEMO: switch to Demo mode. At Demo mode, strip will cycle 9activemodes and 3 times for each mode.

Caution: RF remote is driven by 3V CR2025 button battery. Please try to replace with the same type battery.

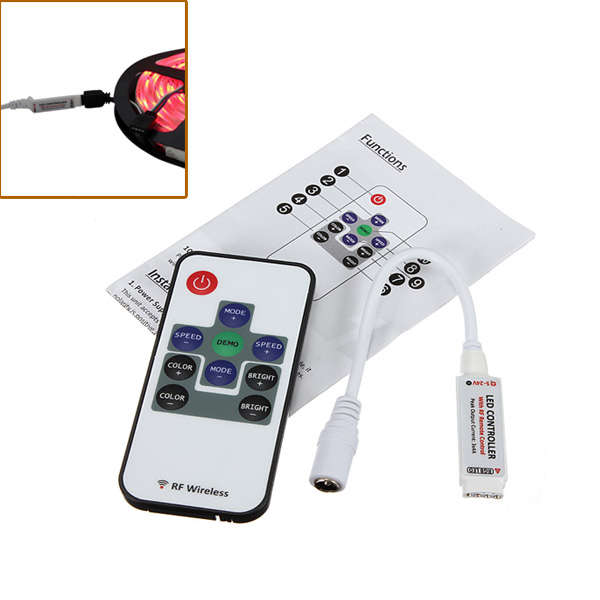

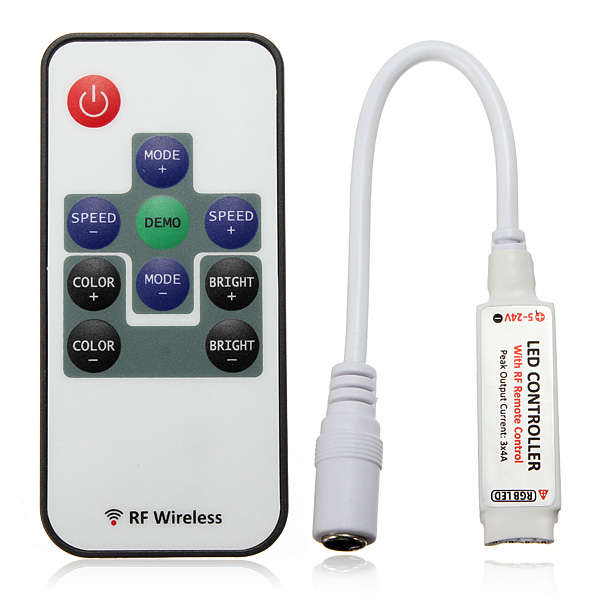

Package including:
1 x Mini RGB controller
1 x RF wireless remote
1 x User Manual
