Description: Comes with start and stop buttons, and can be controlled by external switches to meet customers' various control needs
Soft start function of the motor, the current will increase slowly when starting the motor, no impact current, effectively protect the motor and extend the service life of the motor
You can set the duty cycle, the upper and lower limits of the duty cycle, and the operating frequency, which is convenient for customers to operate and use according to the operating characteristics of their motors.

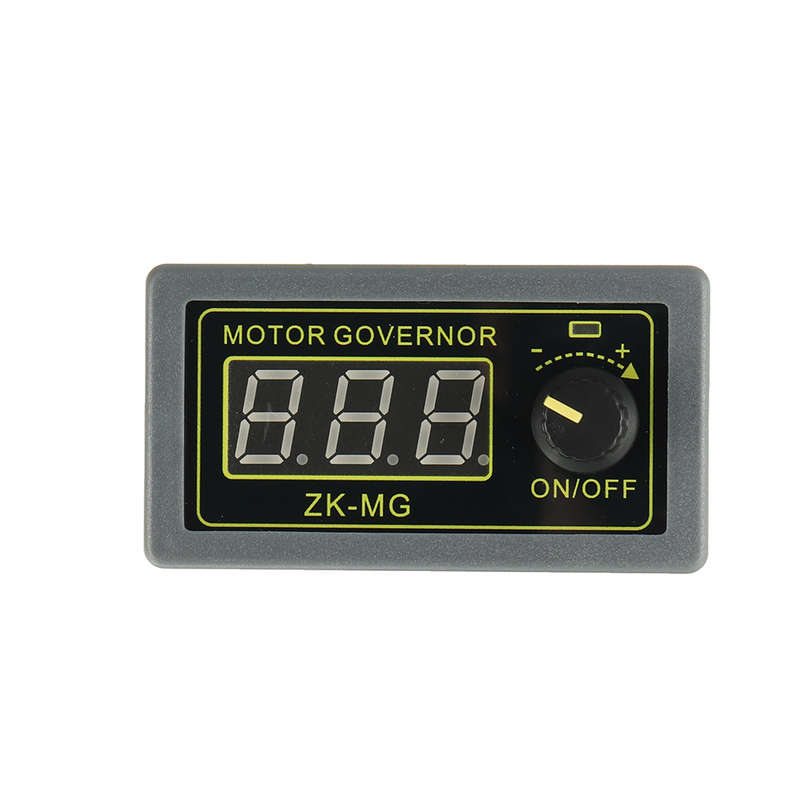

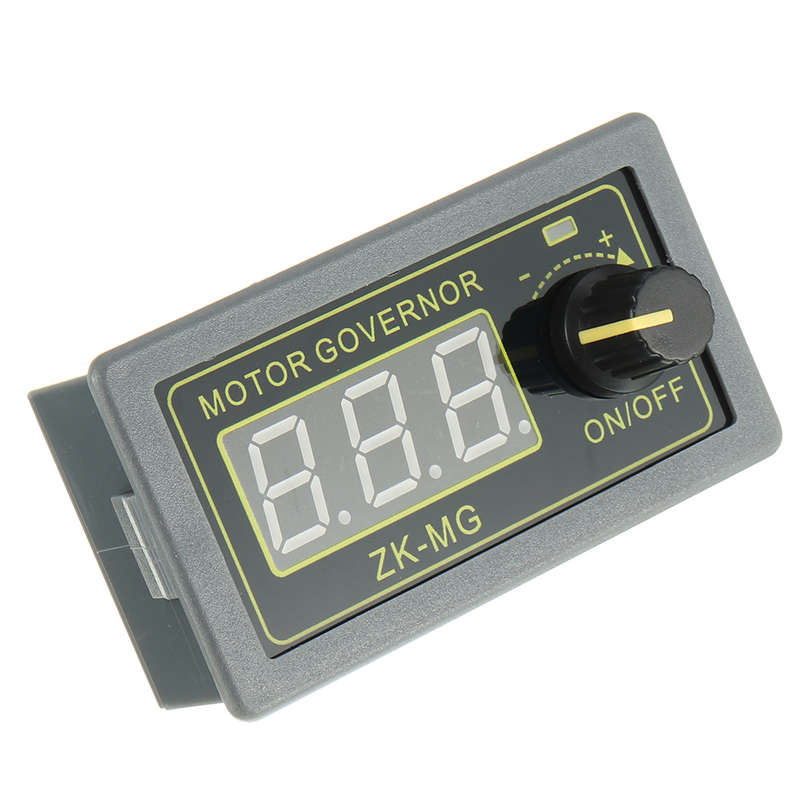

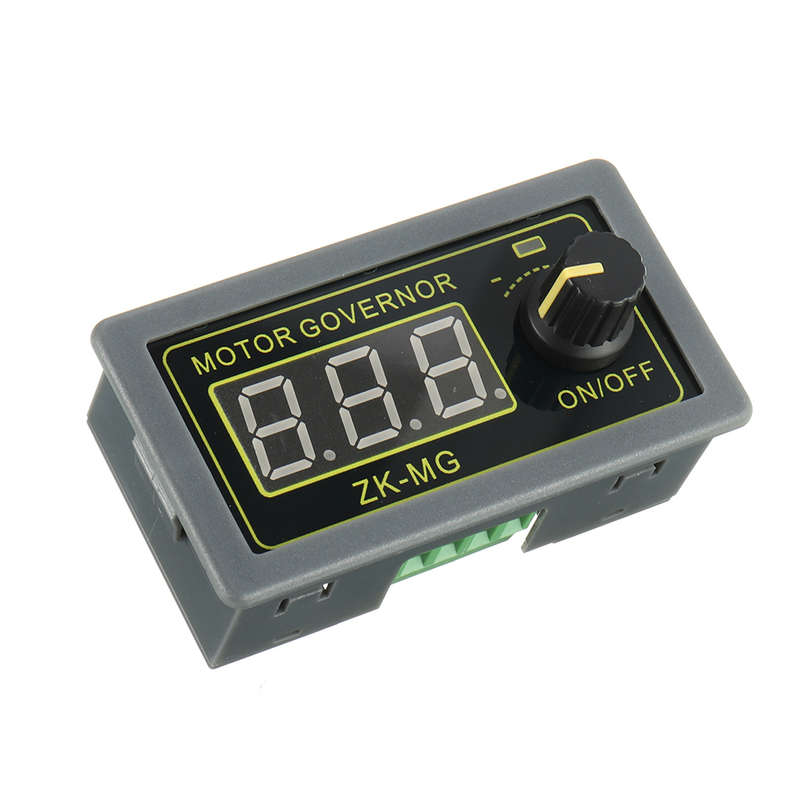

The digital encoder knob adjusts the motor speed, which is higher accuracy and consistency than ordinary potentiometer adjustment.

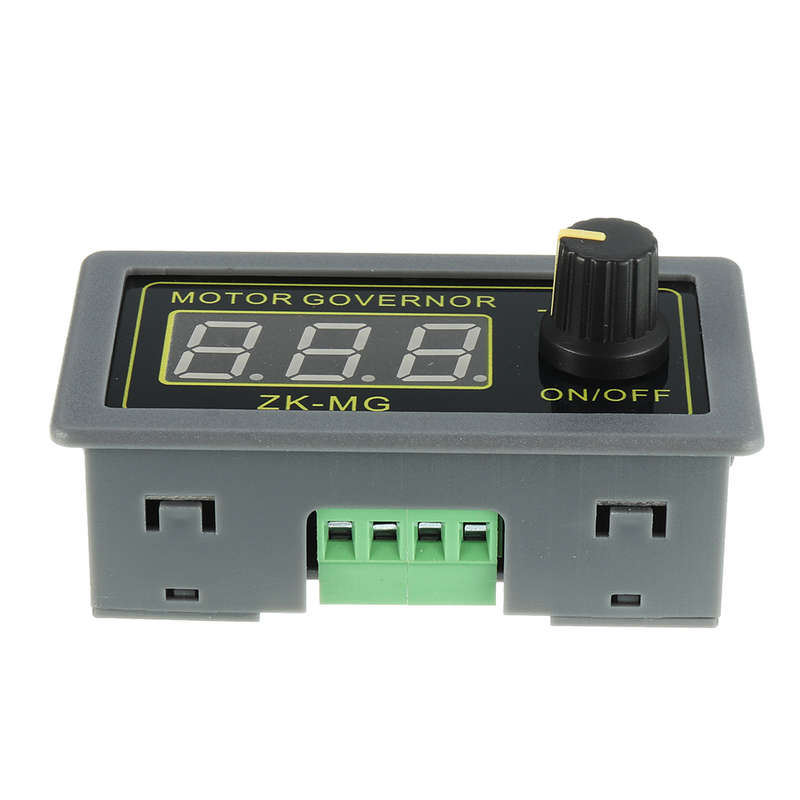

With standard 5135 instrument housing, easy to install.

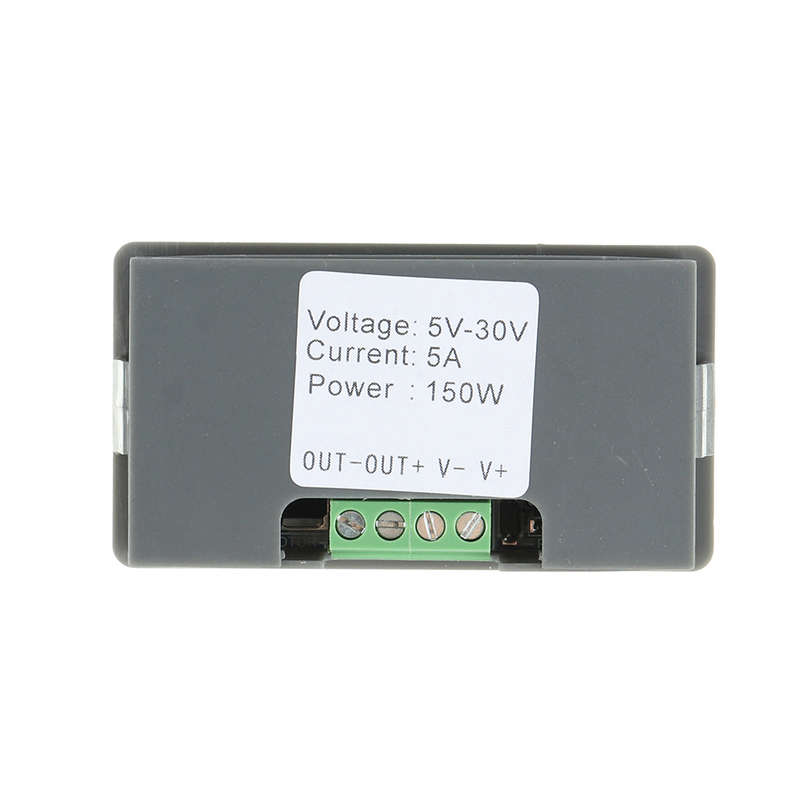

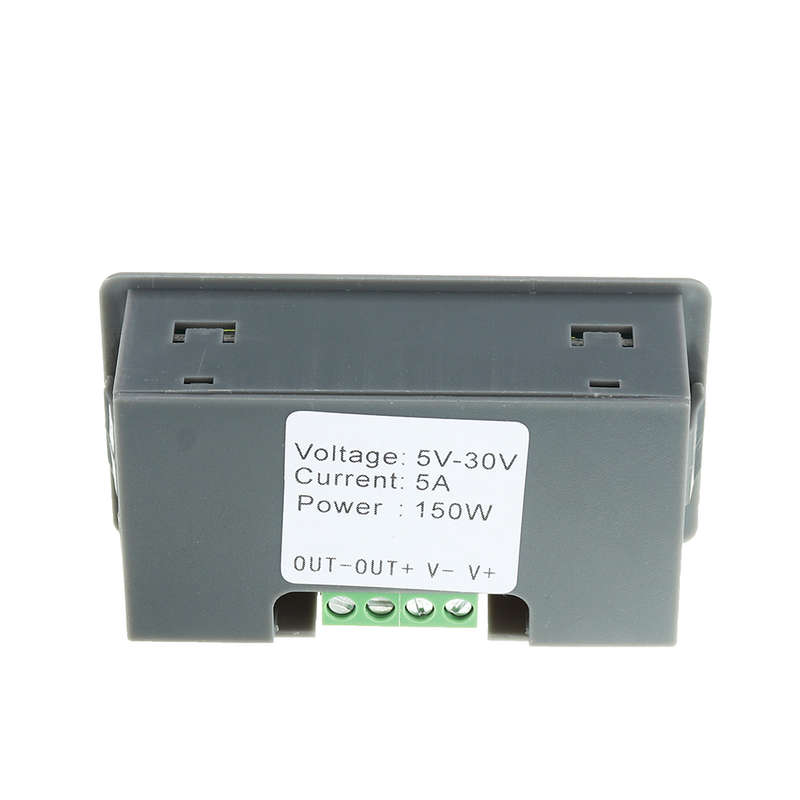

Parameter: DC5V ~ 30V, input anti-reverse protection
Rated current: 5A maximum current 15A
Maximum power: 150W
Working frequency: 1KHz ~ 99KHz adjustable, 1KHz step, default frequency is 20KHz, accuracy is about 1%
Duty cycle: 0-100%, 1% step
Product size: 79mm * 43mm * 26mm
Product weight: 41g
Digital encoder knob operation: In the default interface: (the default display is the duty cycle)
Short press-switch the motor on and off
Long press-enter the setting interface
Counterclockwise rotation-reduced duty cycle
Turn clockwise-duty cycle increases
Under the setting interface: Short press-select the setting parameter, and the setting parameter switches between the lower duty cycle limit, the upper duty cycle and the operating frequency. The lower duty cycle display format is L + two digits. The upper duty cycle display format is H + two digits or 100. The operating frequency display format is F + two digits.
Long press-exit the setting interface
Rotate counterclockwise-the corresponding setting parameters are reduced
Turn clockwise-the corresponding setting parameters increase

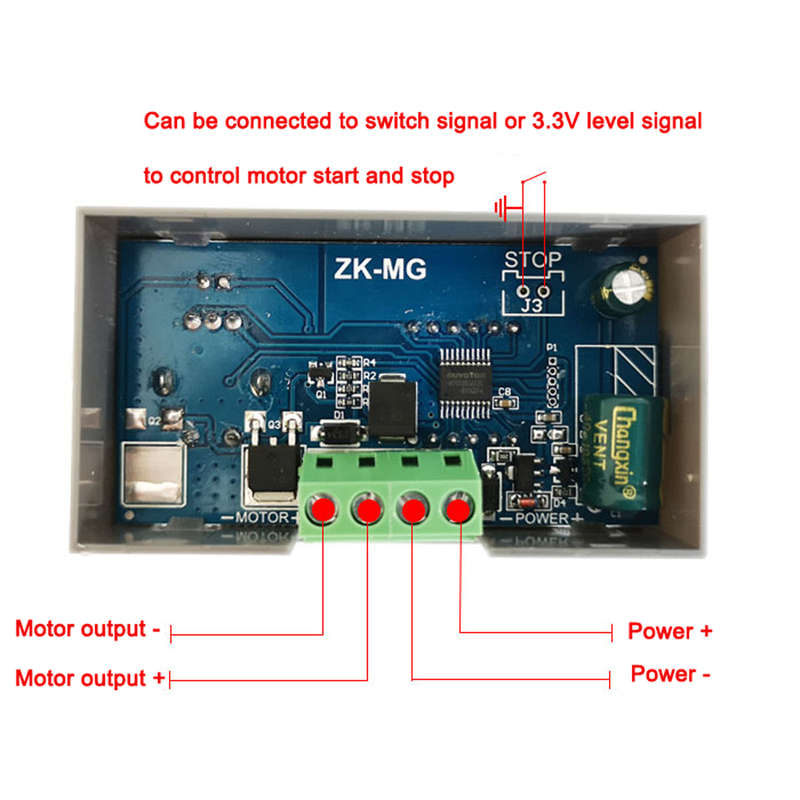

Back STOP port: It can be connected with an external switch button or 3.3V level. When the button is closed or the 3.3V level is pulled down, the start / stop state of the motor can be switched.
Package included:
1 x DC5-30V 5A 150W LED Dimming Module
