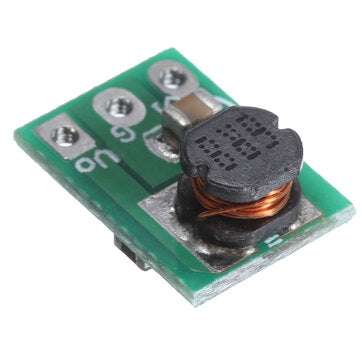

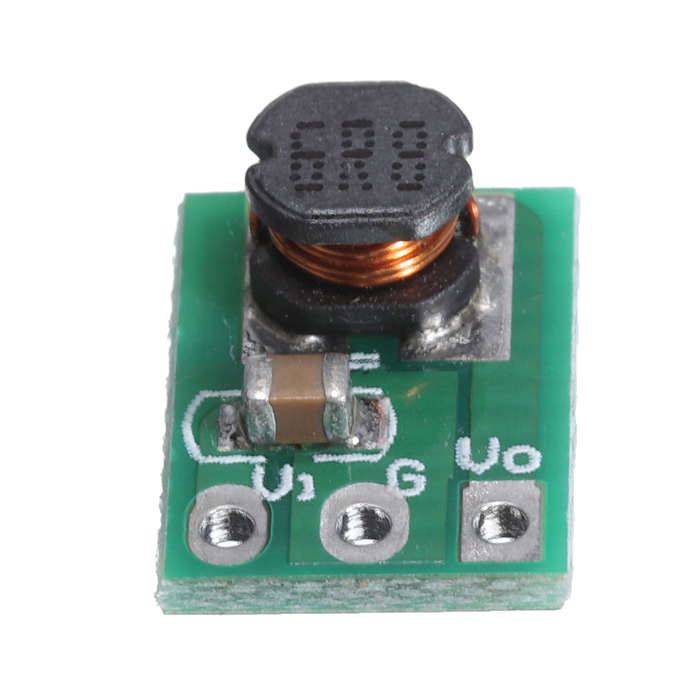

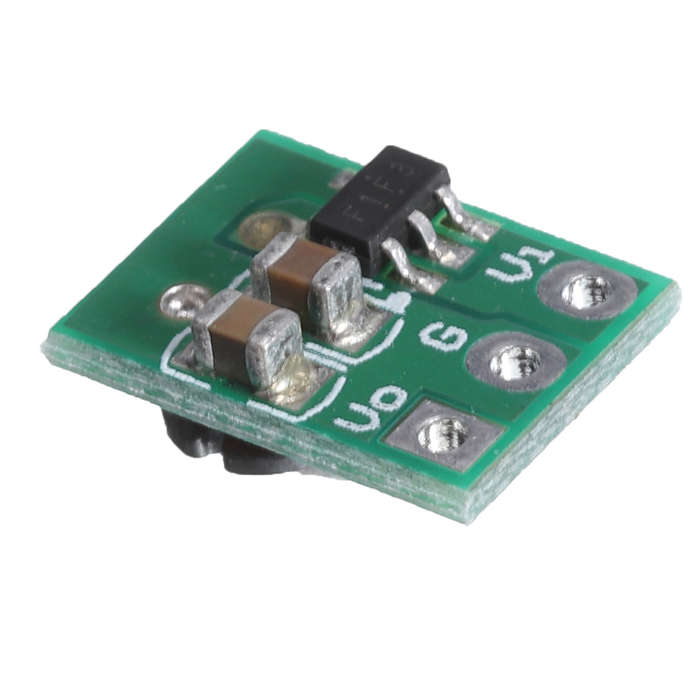

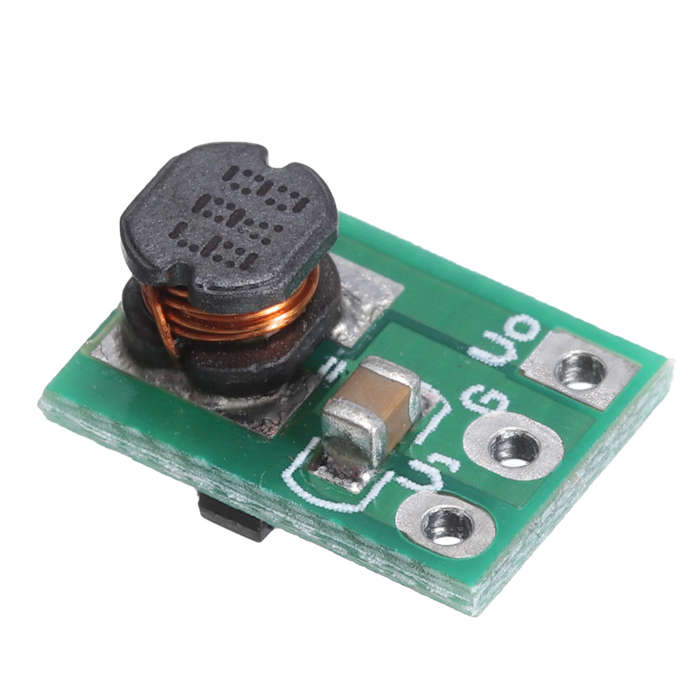

DD0503MB DC to DC Converter Module 3.7V 4.2V 4.5V 5V 6V to 3.3V Step Down Module Buck Regulator

New

20 available

R379.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4030

92.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654096507

Description: Input voltage 3.3-6V, output 3.3V (deviation +-4%) Long time mAximum output current 510mA Short time mAximum output current 710mA Conversion efficiency : 80-93% DC-DC Buck Step-down module working frequency 1.2MHZ. Operating ambient temperature : -40~+85 Degrees Celsius Size 10.8x 7.7 x 5.6mm The mAximum input voltage can not exceed 6.5V INPUT 3.7V/600mA; OUTPUT 3.3V/550mA INPUT 4V/600mA; OUTPUT 3.3V/610mA INPUT 4.2V/580mA; OUTPUT 3.3V/600mA INPUT 4.5V/550mA; OUTPUT 3.3V/620mA INPUT 5V/470mA; OUTPUT 3.3V/590mA INPUT 6V/370mA; OUTPUT 3.3V/550mA

Applications: Wifi Module:ESP8266 Bluetooth module : HC-05 HC-06 Wireless UART module : HC-11 HC-12 wireless module : CC1101 CC2500 Nrf24l01+ 3-3.5V led lights Model aircraft fpv camera Attention: 1. Input voltage can not be greater than the mAximum input range. 2. Output power can not be greater than the mAximum load for a long time. 3. Input power must be greater than the output power, because the power consumption of the module itself. Package Included: 1 x DC to DC Converter Module 3.7V 4.2V 4.5V 5V 6V to 3.3V Step Down Module
