DDS Function Signal Generator Module Sine Square Sawtooth Wave Signal

20 available / new

R597.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3503

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643377407

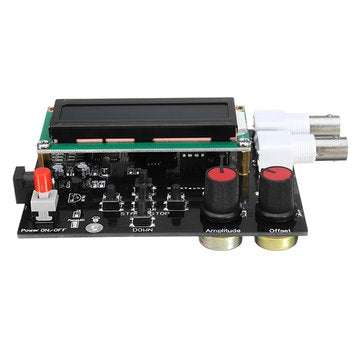

Feature: This is a function (waveform) signal generator designed with1602 LCD screen and intuitive 5 buttons It can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, and pulse wave, etc.) signal The frequency range from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of a very wide range of applications DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers The power automatically restores the last used configuration Specification: Operating voltage: DC7V-9V Size: Approx. 100*80mm (Length*width) Template thickness: 2mm DDS frequency range: 1HZ-65534Hz. High-speed frequency (HS) Square Wave: 1MHz/2MHz/4MHz/8MHz DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave and noise wave Section into the Value: 1,10,100,1000,10000 Hz Offset: 0.5pp-5Vpp Amplitude amount: 0.5Vpp-14Vpp Output impedance: 20-200 ohms
Color of PCB: black and blue random delivery Buttons Functions: UP: Output waveform select DOWN: Output waveform select LEFT: Output frequency - RIGHT: Output frequency + START/STOP: Output stop / start Package Includes: 1 x Signal Generator Module
