The Dell PowerEdge R630 is a compact 1U rackmount server built for high-performance enterprise workloads in space-constrained data centres. Powered by dual Xeon E5-2620 v4 processors and loaded with 128GB of DDR4 ECC memory, this server is optimized for demanding applications including databases, virtualisation, and high-throughput storage environments.
Fitted with high-speed SAS drives and dual 10Gb/1Gb Intel NICs, the R630 provides an exceptional balance of processing, storage, and network I/O, ideal for modern IT infrastructures.
Key Features & Benefits
Dual Intel Xeon E5-2620 v4 CPUs 16 cores, 32 threads delivers robust performance for enterprise applications
128GB DDR4 ECC Registered Memory high capacity for virtualisation and in-memory computing
Enterprise-grade SAS drives supports fast data access and redundancy with 4 hot-swap bays populated
Dell PERC H730 Mini RAID controller robust data protection with RAID 0, 1, 5, 6, 10, 50, and 60
Dual NICs Intel X550 10Gb + Intel i350 1Gb provides flexibility for high-speed networking
Fully redundant power two hot-plug 750W PSUs with high-efficiency operation
Ideal Uses
Virtualisation host for VMware or Hyper-V clusters
Enterprise storage applications and database hosting
High-availability web, application, and file servers
Network-attached storage with RAID-protected hot-swap drives
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional

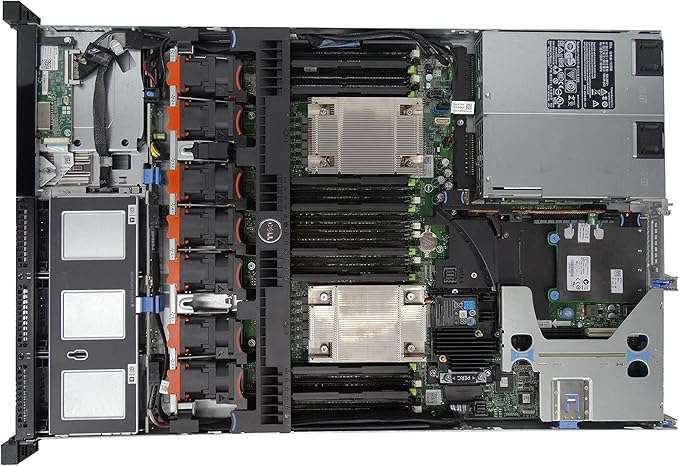

Chassis: Dell PowerEdge R630 1U Rackmount 8 x 2.5" SFF Hot-plug Bays
Processor: 2 x Intel Xeon E5-2620 v4 8 cores / 16 threads each 2.1GHz base 20MB cache 85W TDP
Chipset: Intel C610 Series
Memory: 128GB DDR4 ECC Registered Max 1.5TB across 24 DIMM slots 2400MT/s supported
Storage:
2 x 900GB SAS 10K RPM (2.5")
2 x 1.2TB SAS 10K RPM (2.5")
Storage Controller: Dell PERC H730 Mini RAID 0, 1, 5, 6, 10, 50, 60
Network Adapter:
Intel X550 2 x 10GbE SFP+
Intel i350 2 x 1GbE RJ-45
Expansion Slots: Up to 3 x PCIe 3.0 + dedicated PERC slot
Power Supply: 2 x 750W Hot-plug PSUs Platinum Efficiency
Interfaces: VGA, Serial, 2 x USB 3.0, 2 x USB 2.0, dedicated iDRAC port
Remote Management: iDRAC8 Express with Lifecycle Controller
Operating Systems Supported: Windows Server, VMware vSphere, Red Hat, SUSE Linux
Warranty: 6 Month Carry-in Warranty
What's in the Box: Server, Power Cable
