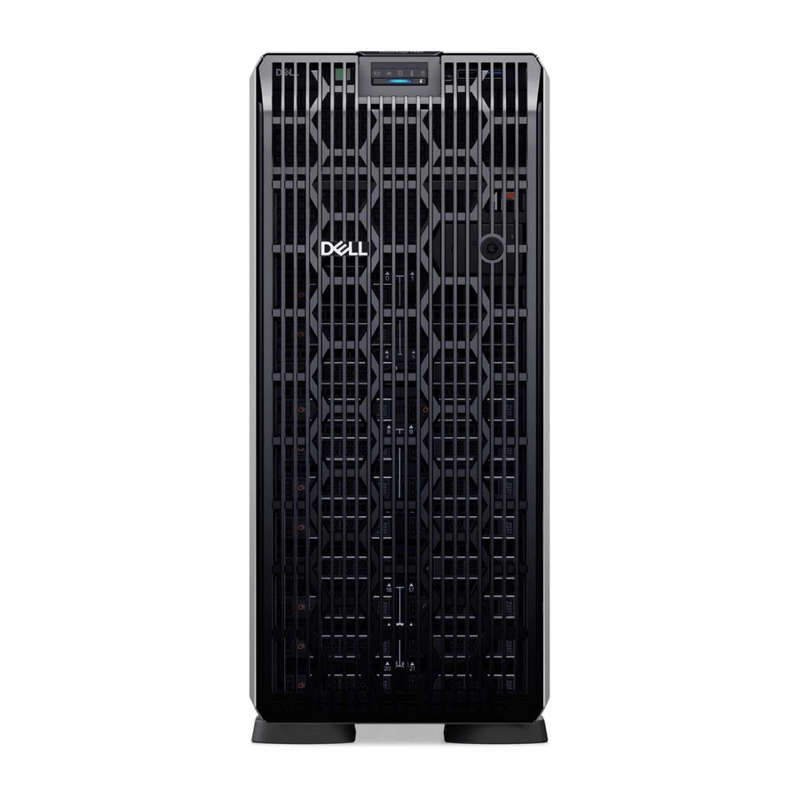

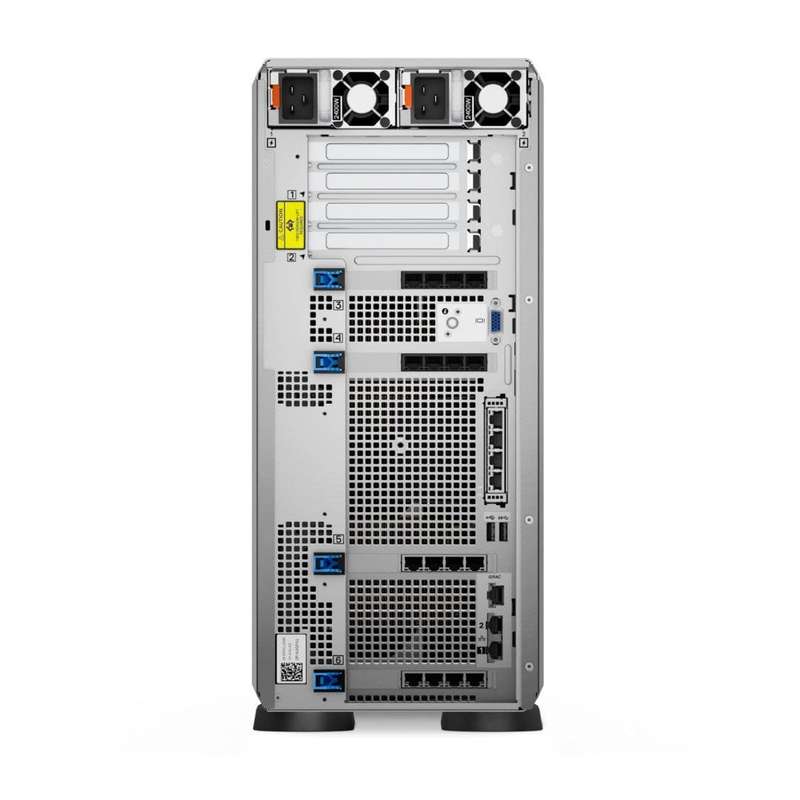

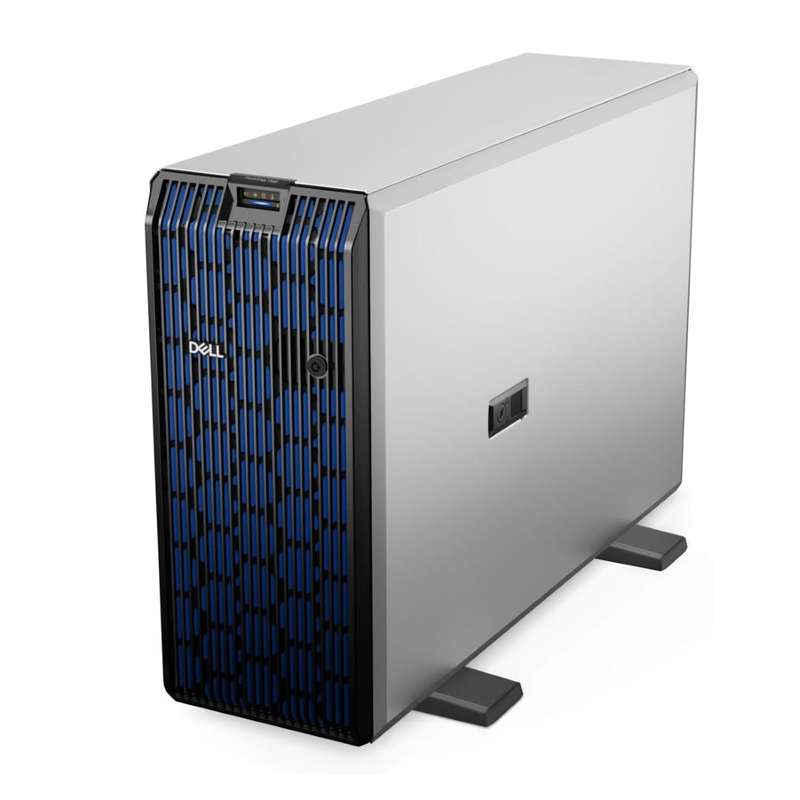

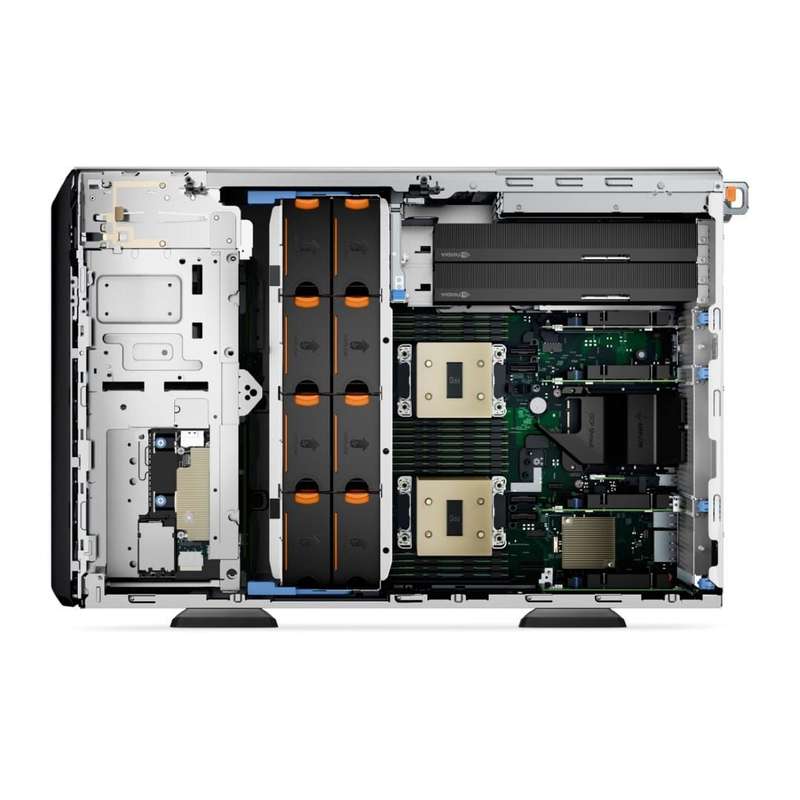

Dell PowerEdge T560 Barebone 4.5U Tower Server PET5605A-BASE
Features
![]()
A purpose-built office-friendly server, maximizing next-gen technologies with GPU options to achieve enterprise-level performance in remote or branch office locations.
Innovate at scale with an expandable tower server for mission-critical business workloads
The Dell PowerEdge T560, powered by the 4th Generation Intel Xeon Scalable processors, is an enterpriseclass tower server that offers advanced technologies with accelerators. It is a purpose-built server with officefriendly acoustics that maximizes next-gen technologies to achieve optimal performance in a small footprint. The Dell PowerEdge T560 is an ideal tower server for traditional corporate IT, virtualization, database and analytics, and inferencing for AI/ML, delivering robust compute performance.
The latest technologies for balanced performance
This all-in-one powerhouse provides ease of management and expandability for growth and performance.
- Provides additional support for database applications with expanded storage with up to 12 x 3.5-inches drives and 24 x 2.5-inches drives allowing for a mix of HDD, SAS4 SSD, and NVMe support.
- Virtualization and AI inferencing capabilities with up to two Xeon Scalable processors, doubled-bandwidth DDR5 memory, double-speed PCIe Gen5, and up to 6 GPUs.
- Achieves enterprise-level security requirements with cyber-resilience to store, process and analyze data.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with an autonomous infrastructure
The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
![]()
Technical Specification
Product: Dell PowerEdge T560
Product type: Server
Processor: Optional
Internal memory: Optional
Internal memory type: DDR5
Storage capacity: Optional
HDD size: 3.5" Chassis with up to 8x SATA/SAS Hot Plug Hard Drives
Controller: PERC H755 Front load
LAN: Broadcom 5720 Dual Port 1Gb
Power supply: Dual, Hot-Plug, Power Supply 700W (1+1)
Redundant power supply (RPS): Supported
Chassis type: Tower (4.5U)
Operating System: Optional
