Features:
Cam action miter lock function makes miter setting faster and easier allowing the user to quickly adjust angles between 0° - 60° left and 0° - 50° right. The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications. The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles. Linear horizontal rails utilize bronze guides to provide maximum precision when cutting materials up to 345 mm wide.
Cam action miter lock function makes miter setting faster and easier allowing the user to quickly adjust angles between 0° - 60° left and 0° - 50° right. The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications. The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles. Linear horizontal rails utilize bronze guides to provide maximum precision when cutting materials up to 345 mm wide. New quick release bevel setting provides accurate and simple setting of bevel angles up to 48° left and right. Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the job site. Electronic speed control for adjusting cutting speed when cutting materials other than wood.
Specifications:
Power Input: 1600 Watts
Power Output: 960 Watts
Blade Speed: 1900 - 3400 rpm
Blade Diameter: 305 mm, 12"
Blade Bore: 30 mm
Bevel Capacity: 48/48°
Miter Capacity [right/left]: 50/60°
Weight: 24.8 kg
Depth: 470 mm
Length: 770 mm
Height: 396 mm
Max. Depth of Cut [Saws]: 163 mm
Cutting Capacity at 90°/90° (W x H): 327 x 90 mm
Cutting Capacity at 90°/90° (W x H): 345 x 71 mm
Cutting Capacity at 45°/90° (W x H): 231 x 90 mm
Cutting Capacity at 45°/90° (W x H): 241 x 71 mm
Cutting Capacity at 90°/45° (W x H): 327 x 58 mm
Cutting Capacity at 90°/45° (W x H): 345 x 48 mm
Max. Cutting Capacity at 45°/45°: 242 x 52 mm
Comes with:

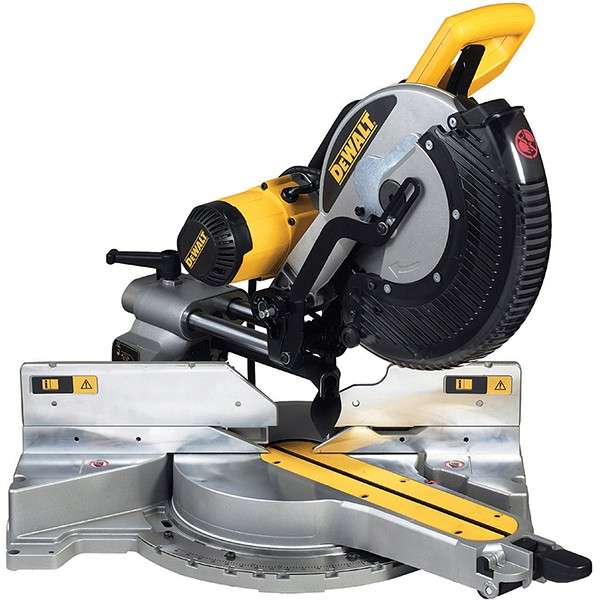

DW718-QS 220V 305mm Double Bevel Sliding Compound Miter Saw, 60 tooth precision saw blade, blade spanner and dust bag.
