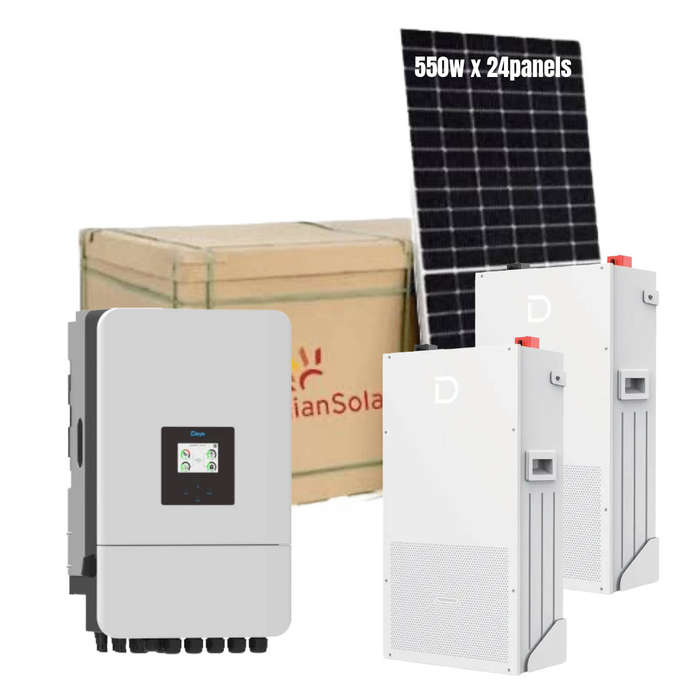

Deye 16Kw Hybrid Single Phase Inverter & 2 x Dyness Powerbrick 14.3kw with 24 x 550w Canadian Solar panels incl mounting kit:
Description
This Combo Consists of the following:
1 x 16kw Deye Hybrid Single Phase inverter
2 x Dyness PowerBrick 14.3kwh Lithium battery
24 x 550w Canadian solar panels
16 x 3.5m Rails
100m x 6mm Red solar cable
100m x 6mm Black Solar cable
48 x solar panel roof hooks
40 x PV Mid Lock
16 x PV End Lock
3 x Combiner box 1in 1out
4m x 50mm Battery Cable set
1 x Main latch fuse holder
2 x 250A fuse
12 x Rail Extension
1 x AC Combiner Box
This system can power the following appliances:
3x LED Tv
50 led Lights
Decorder
Cell Phones
Wifi Router
2 x Fridge
Chest Freezer
Computers
Fan
Kettle
Microwave
Iron
2x air conditioner
The following appliances can also be used , but it is advisable to use them during the day when the sun is peak as
Pool Pump
Washing Machine
borehole pump
2x geysers on timer with automatic changeover
Switch
The Dyness PowerBrick 14.3kWh Lithium Battery stands out as an advanced and reliable energy storage solution, ideal for both residential and commercial applications. Leveraging LiFePO4 (Lithium Iron Phosphate) technology, it offers superior safety, longevity, and efficiency. Heres a breakdown of the features and benefits:
Product Features
High Capacity and Power Output: With a nominal capacity of 14.336kWh and the ability to discharge 200A continuously, it delivers up to 10kW of power, which is suitable for energy-hungry applications in residential and commercial settings.
Long Lifespan: The LiFePO4 chemistry ensures a long cycle life with unlimited cycles, backed by a 10-year warranty for peace of mind. The depth of discharge (DOD) of 95% allows users to utilize a significant portion of the batterys capacity without impacting its performance.
Scalability: The system is expandable up to 716.8kWh, making it highly adaptable to future energy needs. You can connect up to 50 units in parallel without requiring a separate HUB, providing flexibility for growth and large-scale installations.
Compact and Easy to Install: The lightweight and compact design of the PowerBrick ensures easy installation and minimal maintenance. This makes it a perfect fit for homes, businesses, and off-grid systems, where space and convenience are key considerations.
Smart Integration: The built-in WiFi module and mobile app integration (via OTA updates) offer a user-friendly experience, allowing users to monitor and control their energy storage system remotely. This ensures efficiency and real-time updates on system performance.
High Efficiency: The system operates at 51.2V and 280Ah, optimizing energy use and supporting both off-grid and hybrid systems. Its efficient charge management ensures the battery operates at peak performance, saving energy and reducing costs.
Specifications:
Safety and Certification:
The battery is equipped with optional aerosol fire extinguishers for extra protection, ensuring a high level of safety during use. It also meets international safety standards, including UN38.3, CE-EMC, and IEC62619 certifications.
Temperature Tolerance:
It operates in a wide temperature range, with charging temperatures between 0°C to 55°C and discharging temperatures from -20°C to 55°C, making it suitable for various climates.
Compatibility:
The PowerBrick is compatible with a wide range of inverters, such as SMA, Schneider, Victron energy, Ingeteam, Solis, GoodWe, Growatt, Soplanet, SOFAR, SAJ, Deye etc, ensuring seamless integration with your existing energy systems.
Deye 16Kw Hybrid Inverter Single phase
General Data
Maximum Efficiency: 97.60%
MPPT Efficiency: 99.90%
Supports Paralleling (16 Units)
Generator Compatible
Mounting: Wall Mount
Battery Data
Battery Type: Lead-Acid or Li-Ion
Battery Voltage Range: 40VDC~60VDC
Maximum Charging Current: 290A
Maximum Discharging Current: 290A
UPS Power: 12000W
External Temperature Sensor: Yes
Charging Curve: 3 Stages / Equalization
Charging Strategy for Li-Ion Battery: Self adaption to BMS
PV String Input Data
Maximum DC Input Power: 20800W
Maximum DC Input Voltage: 500VDC
Startup Voltage: 125VDC
MPPT Voltage Range: 150VDC-425VDC
Rated DC Input Voltage: 370VDC
PV Input Current: 26A + 26A + 26A
Maximum PV (Isc): 44A + 44A + 44A
No of MPP Trackers: 3
Strings per MPP Tracker: 2
AC Output Data
Rated AC Output Power: 16000W
AC Output Rated Current: 69.6A
Maximum Continuous AC Passthrough: 100A
Peak Power (Off Grid): 2 time of rated Power, 5 S
Power Factor: 0.8 Leading to 0.8 Lagging
Output Frequency and Voltage: 50/60Hz; L/N/PE 220/230VAC (Single Phase)
Grid Type: Single Phase
Environment Limit
Operating Temperature Range: -45°C to 60°C
Cooling: Smart Cooling (<30 dB)
Communication: RS485 / CAN
