Deye 20kW Hybrid Three Phase Inverter HV OLD GEN

Deye 20kW Hybrid 3 Phase Inverter HV - (SUN-20K-SG01HP3-EU-AM2)

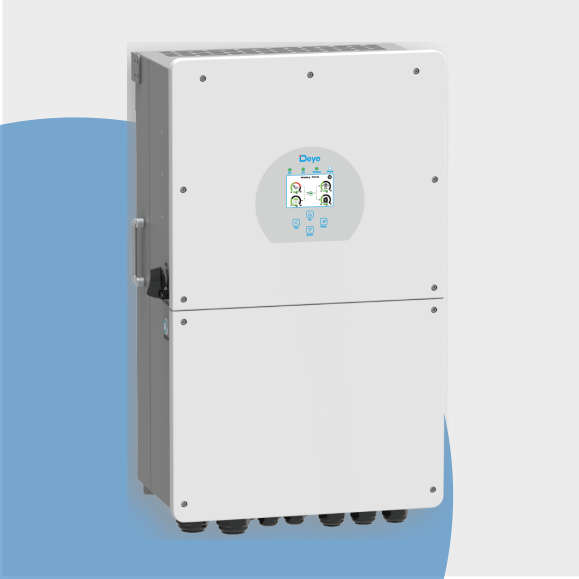

Introducing the Deye 20Kw Three Phase Hybrid Inverter

Harness the power of solar energy with the revolutionary Deye 20Kw inverter, a market favorite in South Africa. If you're wondering why it's so sought-after, here's a simple breakdown:

Key Features:

1. Three-Phase Hybrid System: The Deye 20Kw inverter smoothly converts solar energy, ensuring you maximize the use of renewable resources. Plus, it has the unique capability of providing three-phase unbalanced output, ensuring consistent performance even when there's an uneven distribution across phases.

2. High Voltage Battery Support: This inverter supports high-voltage batteries ranging from 160-700V. This ensures efficient system operations and minimal heat losses.

3. Advanced Construction: With its 1.3 DC/AC ratio, small form factor, and excellent power density, it ensures reduced device investment.

4. Grid & Stand-alone Generator Connection: Thanks to its AC coupling, integrating the Deye 20Kw inverter into your existing power grid or a standalone generator is hassle-free.

5. Parallel Operation Capability: Unlike many inverters, the Deye 20Kw allows for parallel operation, amplifying its benefits.

6. Optimized Battery Use: This inverter not only enhances solar energy utilization but also boosts battery charging and discharging, so you can store excess solar energy during peak hours for later use.

Specifications:

• Battery Type: Lithium-ion
• Battery Voltage Range: 160-700V
• Max DC Input Power: 26000 W
• Starting Voltage: 180V
• DC Input Voltage: 1000V
• PV Input Current: 26+26A
• MPPT Trackers: 2
• Max AC Output & UPS Power: 20000W
• Max AC Output Power: 22000 W
• AC Passthrough: 80A
• Weight: 30.5 kg
• Dimensions: 408 x 638 x 237 mm

Affordability: The Deye 20kW hybrid inverter provides top-tier performance without breaking the bank, proving that quality doesn't always come with a hefty price tag.

Installation: To ensure safety and efficient setup, the Deye 20KW hybrid inverter comes with a comprehensive installation guide.

Final Thoughts: The Deye 20kW Three Phase Hybrid Inverter isn't just another device; it's a testament to innovation and reliability. It's a top choice for those seeking a powerful and trustworthy energy solution.

Documents

Deye 20kW Hybrid 3 Phase Inverter - Datasheet
