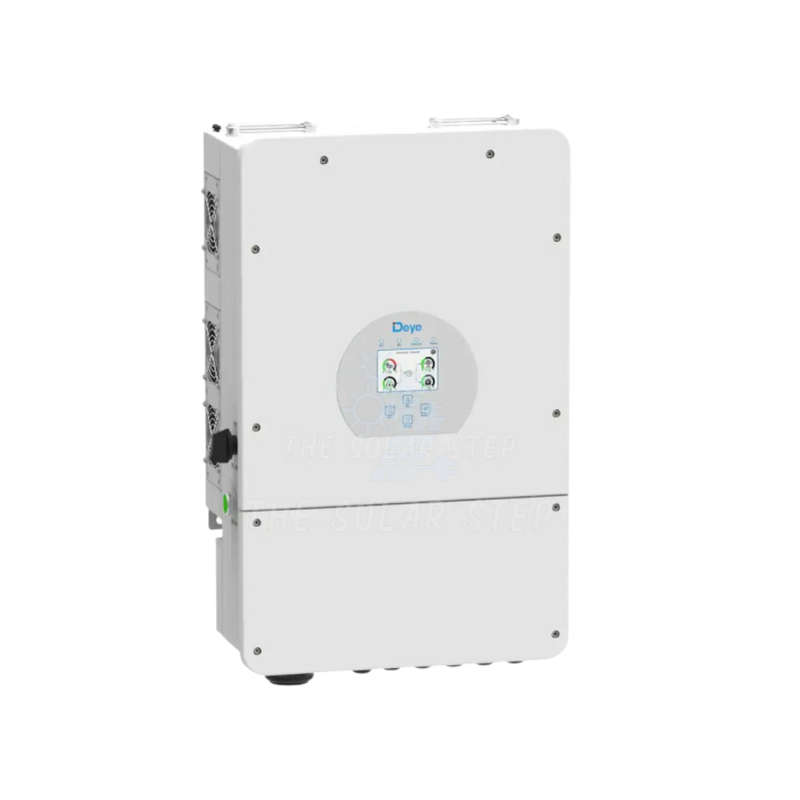

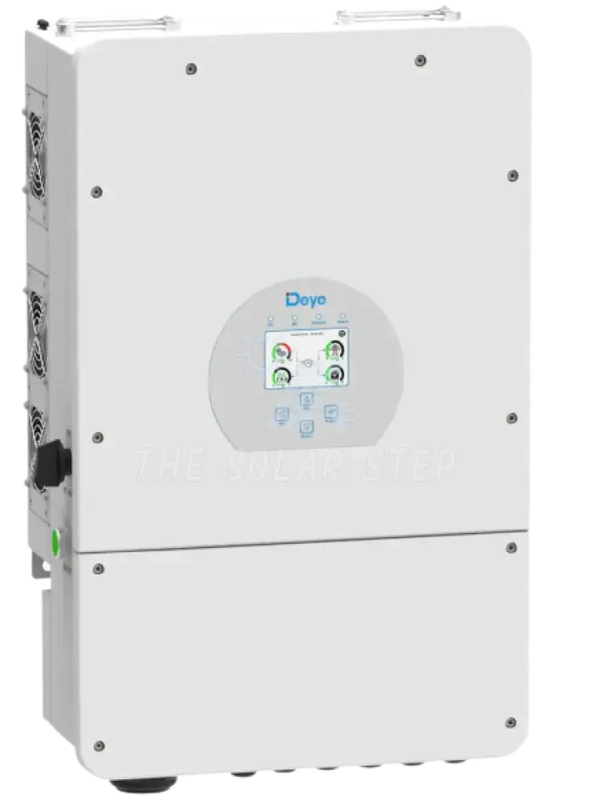

12KVA DEYE Three Phase Hybrid Inverter

• Deye's 3phase hybrid inverter with a battery voltage range of 40~60V is expected to bring an end to the problem that the DC high voltage causes fires.
• The Deye 12Kw 3 Phase Hybrid Inverter is a hybrid inverter for both wind turbines and solar panel.
• This hybrid inverter is highly reliable and cost-effective.
• It automatically switches from AC mode to DC mode within five milliseconds.

Deye 12Kw Hybrid inverter adopts the latest "battery management system" (BMS), which is a critical part of hybrid inverter system to ensure the safety and stability of the whole system.

• 48V low voltage battery, transformer isolation design.
• 6 time periods for battery charging/discharging.
• Max. charging/discharging current of 240A.
• Frequency droop control, Max.16pcs parallel.
• DC couple and AC couple to retrofit the existing solar system.
• Support storing energy from a diesel generator.
• Supports three-phase unbalanced output.
• Unique Smart Load application and Grid peak-shaving function.

100% Unbalanced Output.

• The series inverter supports unbalanced output.
• Each phase Max. output power is up to 50%Pn. E.g. for the 12KW hybrid inverter, the A-phase Max. output power can reach 6KW.

Droop Control.

• Adopts frequency droop control technology to ensure system reliability and stability.
• With the droop characteristics of traditional diesel generators, and it can adjust the output power by changing the frequency and voltage.

Support Max. Number of Parallel of 16pcs.

Higher yields.

• Improve self-consumption ratio up to 80%, reducing your electricity bill.
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
• Two MPPT designs, Max. efficiency of 97.6%.

User-friendly.

• LCD Touch screen and buttons, easy operation.
• Compatible with a lithium-ion battery and lead-acid battery.
• Web browser and mobile App monitoring supported.

Reliable.

• PV lighting protection, Anti-islanding protection, Leakage current protection etc.
• Support store energy from DG when needed, ensure the system working within 7*24H.
• IP65 protection degree, adapt to indoor and outdoor using.
• Automatically switch from on-grid to off-grid mode within 5ms.
• Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

• Programmable charging and discharging schedule.
• Both wind turbines and solar panels can be connected as DC input power.
• Max. 16 units can be paralleled for higher system power.
• Retrofitting of existing solar system to energy storage system.
