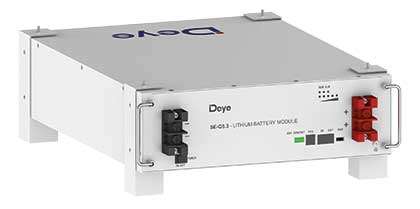

DEYE 51.2V 5.32KWH RACK/WALL MOUNT BATTERY 440X133X560MM

Safe, reliable, flexible, convenient and eco-friendly.

This series lithium iron phosphate battery is one of new energy storage products developed and produced by Deye, and can be used to support reliable power for various types of equipment and systems.

Battery Chemistry: LiFePO4
Capacity (Ah): 104
Scalability: Max. 64 pcs pack (340kWh) in parallel (Max. 32 pcs no external setup)
Nominal Voltage (V): 51.2
Operating Voltage(V): 43.2~57.6
Energy (kWh): 5.32
Usable Energy (kWh) [1]: 4.79
Charge/Discharge Current (A) Recommended: 50
Charge/Discharge Current (A) Max: 100
Charge/Discharge Current (A) Peak: 120 (30s,25?)
Recommend Depth of Discharge: 90%
Dimension (W/H/D, mm): 440*133*560
Weight Approximate(kg): 45
Master LED Indicator: 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature: Charge:0?55? (Optional heating) / Discharge:-20??55?
Storage Temperature: 0??35?
Humidity: 5%~95%
Altitude: ?2000m
Cycle Life: ?6000(25??2?, 0.3C/0.3C, 90%DOD, 70%EOL)
Installation: 19-inch standard rack (depth ?600mm / with), Floor-Mounted, Wall-Mounted,
Communication Port: CAN2.0, RS485
Warranty Period: 10 years
Energy Throughput: 16MWh@70%EOL
Certification: CE, IEC62619, UN38.3
