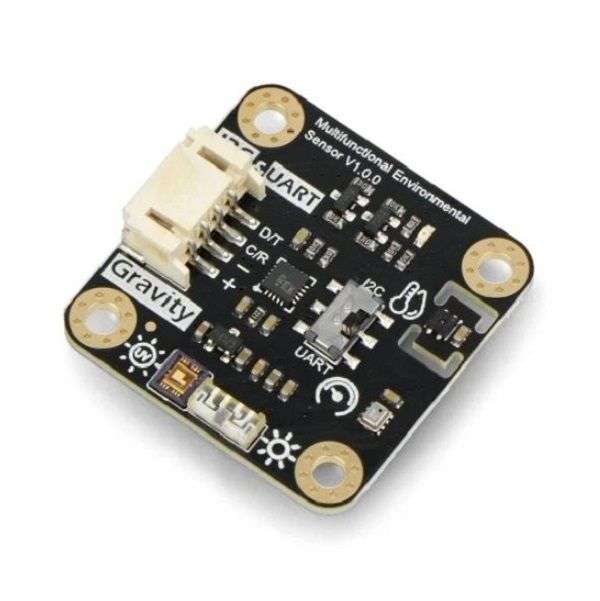

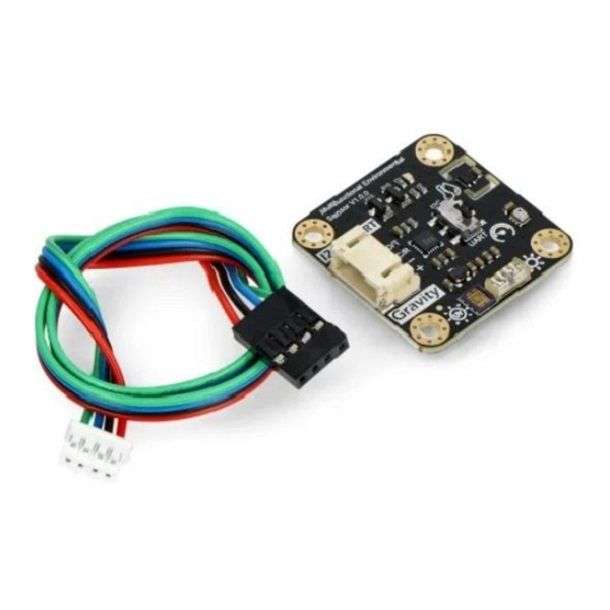

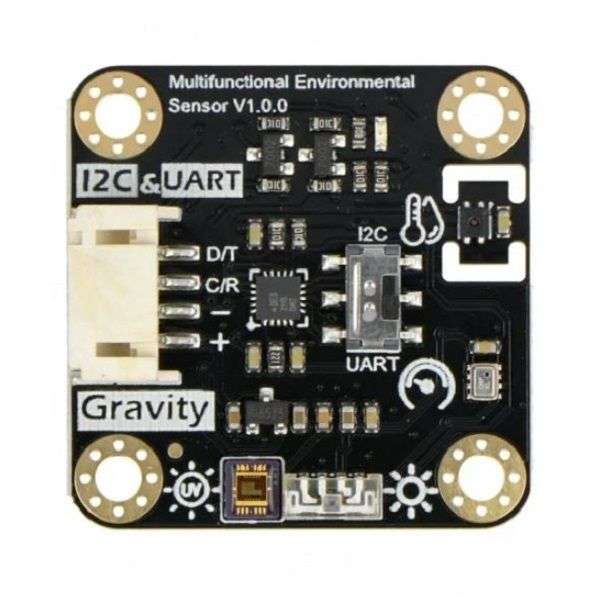

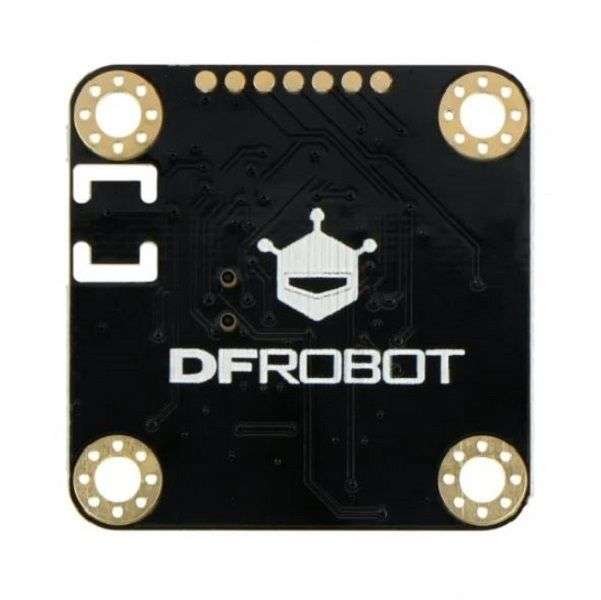

DFRobot Gravity (SEN0501) Environmental Sensor Board

SEN0501 is a gravity: high accuracy temperature, humidity, pressure, ambientlight and UV sensor - I2C/UART board. This multifunctional environmental sensorcomprises SHTC3 temperature and humidity sensor, BMP280 barometric pressuresensor, VEML7700 ambient light sensor, and LTR390 UV sensor (V1.0 : ML8511, V2.0: LTR390-UV-01) into one and offers 5 kinds of environmental parameters.Professional sensor chips are selected for each kind of parameter measurement.The reasonable layout and heat conduction of main chips are carefully consideredin the circuit design, which effectively guarantees the accuracy of the data.The product has an MCU processing chip onboard that converts the sensor raw datainto values in standard units so you can directly use them. For instance, and Ffor temperature, % for humidity, Kpa for barometric pressure, lx for lightilluminance, and mw/cm for UV light.Specifications:- Silicon Core Number: SHTC3, BMP280, ML8511, VEML7700- Kit Contents: Multifunctional Environmental Sensor I2C/UART SHTC3, BMP280,ML8511, VEML7700- For Use With: DFRduino UNO Development Boards- Gravity interface, no need to solder, plug and play- Switchable I2C and UART, two output modes- Highly integrated module, can test a variety of data at the same time- Reasonable layout and high precision- 3.3 to 5VDC working voltage- Working current about 4mA- Working temperature range from -20 to 70- Product size of 32mm x 32mm
