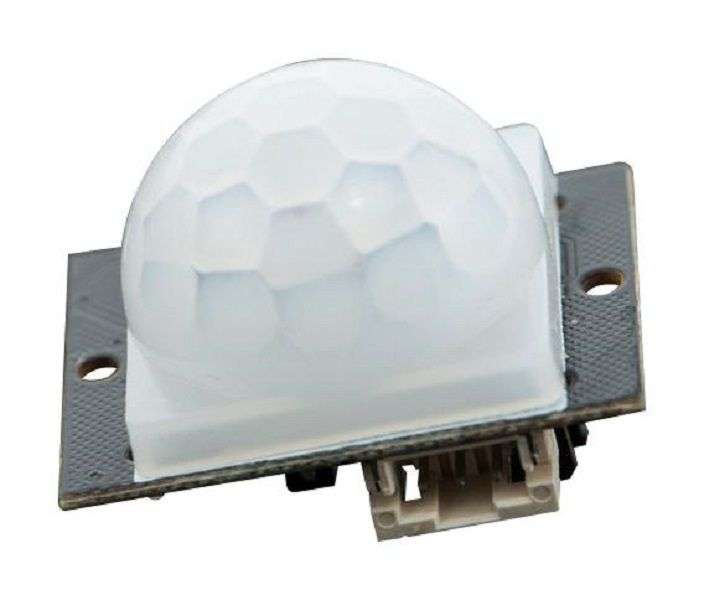

DFRobot (SEN0018) Add-On Board, Infrared Motion Sensor Module

Product Information:- Accessory Type: Digital Infrared Motion Sensor- For Use With: Arduino Development Boards- Product Range: Gravity SeriesProduct Overview:- Simple motion sensor module built on infrared detection technology for-Arduino projects. Once activated the sensor will take a snapshot of the area,after that anything that moves will set the 'alarm' pin to low. The sensorchecks for infrared heat in its detection range, comparing with the snapshot -if there is a recent change it will trigger.- Suitable for simple security and home automation projects- Adjustable sensor delay via potentiometer on the back of the sensor- Detection range: 7m- Detection angle 110°- Output level (HIGH): 4V- Output level (LOW): 0.4V- Current: 50µA- Digital interface- Operating Voltage: 3.0-5.5V DC- Operating temperature: 0°C to 70°C- Plug and play 3-pin Gravity interface- Board size: 28x36mm- Weight: 25gApplications:- Embedded Design & Development, Electronics Design, IoT (Internet of Things),Hobby & Education
