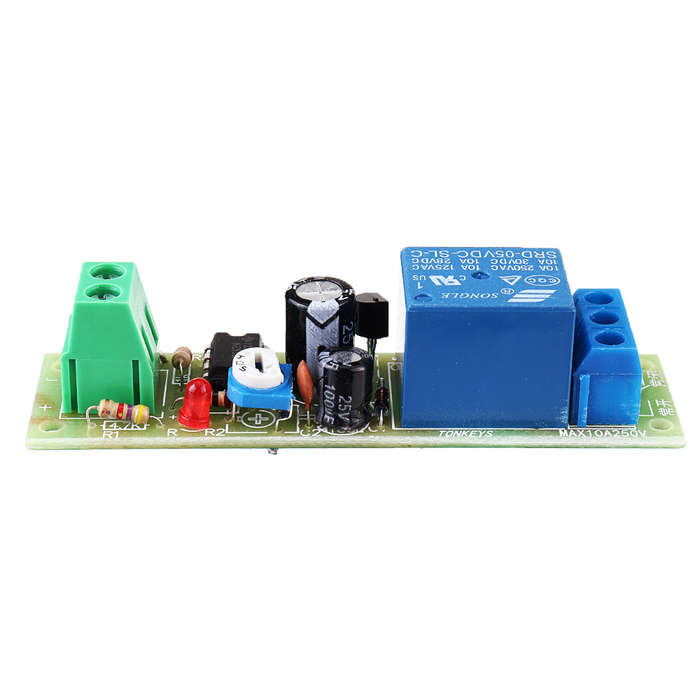

JK-02 5V 0-200S Power-on On Delay Automatically Disconnects Timer Relay Module NE555

Features: - Function: Turn on the control panel immediately after it is connected to the power supply. After the set time has elapsed, disconnect the load. - Change the delay time length with an adjustable resistor. The delay time is adjustable from 0 to 200 seconds. - The relay is normally open and normally closed, connected to the normally closed end (NC) for delay switching, and connected to the normally open end (NO) for delay opening. - The circuit wiring is safe and reliable, and the load capacity is 10A 250V AC or 10A 30V DC. - With status indication, the red LED lights up to indicate that the module is plugged into the power supply, and the green LED is lit to indicate that the relay is in the pull-in state. - The quiescent current is less than 5mA, and the maximum current is 80mA after the suction. - PCB size: 75mm * 20mm with mounting holes. Package Included: 1 x JK-02 5V 0-200S Power-on On Delay Automatically Disconnects
