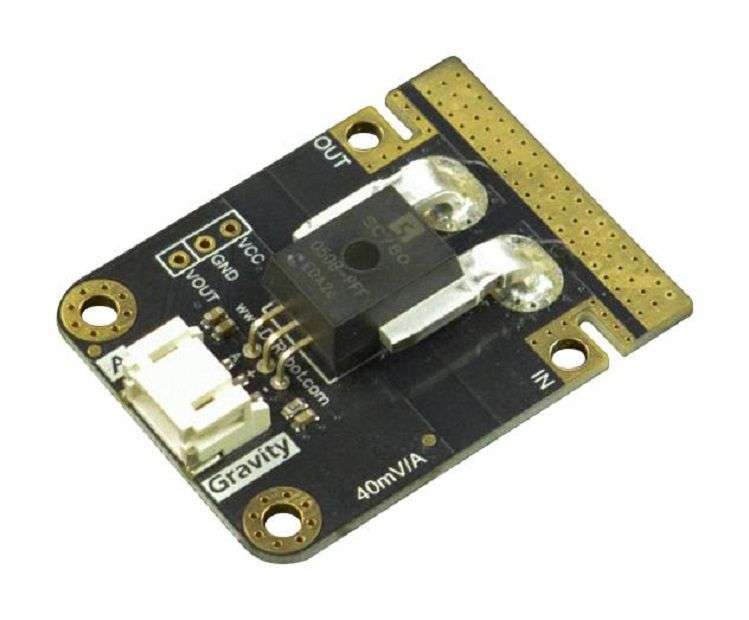

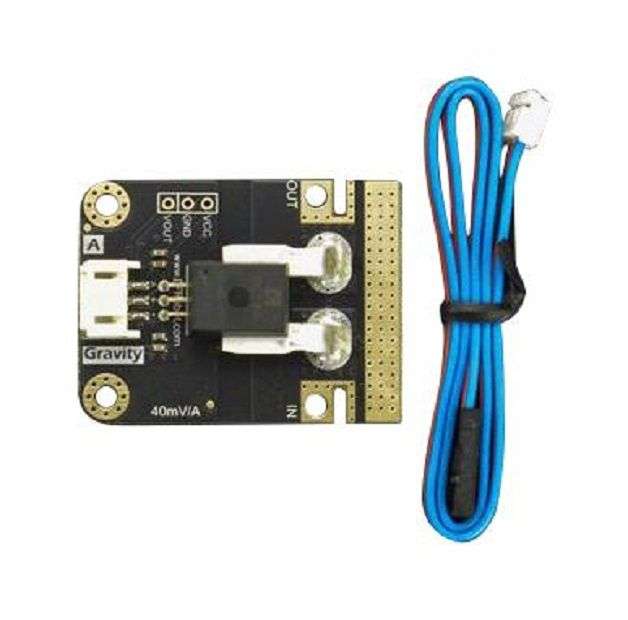

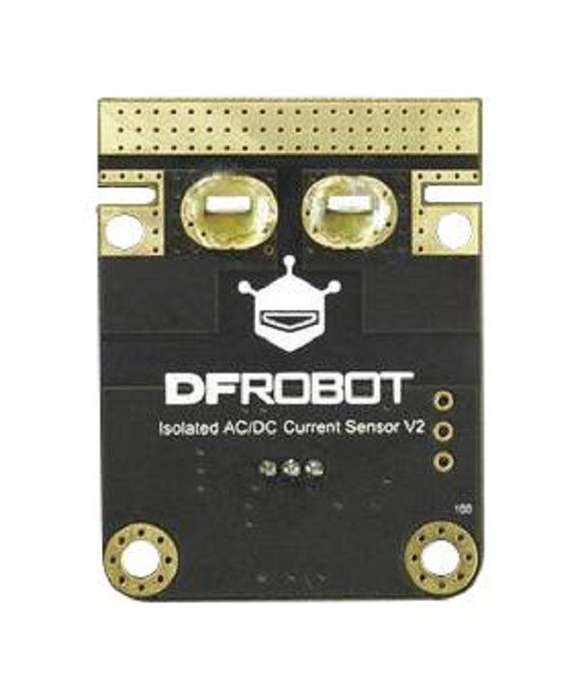

DFRobot (SEN0098-V2) Sensor Breakout Board, 50A, Gravity Series

Product InformationAccessory Type: Sensor Breakout BoardFor Use With: Arduino IO Expansion ShieldProduct Range: Gravity SeriesProduct OverviewSEN0098-V2 is a Gravity: analogue current sensor 50A (AC/DC) V2. This fullyintegrated hall effect-based linear SC780 current sensor gives precisemeasurement for both AC and DC currents up to 50A. The thickness of the copperconductor allows the survival of the device at high over-current conditions. TheSC780 can output an analogue voltage signal that varies linearly with sensedcurrent. The input and output are designed as through-hole vias and slots, whichallow for soldering thick electrical wires and T-shaped connectors. The polarityof the input power is clearly labelled on the board so users can convenientlysolder wires or use metal alligator clips to make the electrical connections.The current sensor features enhanced heat dissipation and circuit-protectionfunctions, which typically can be applied to scenarios such as motor control,load detection & management, aeromodelling, and robot over-current detection.Gravity interfaceCompatible with T-shaped plug of aeromodellingCapable of measuring AC and DC currentsHall current sensorIsolated current measurementLow current impedance of 0.08mohmLow-hysteresis magnetic coreInterference-free for magnet wire, external magnetic field, and geomagneticfieldOperating temperature range from -40 Cto 125 CDimension is 32×42mm
