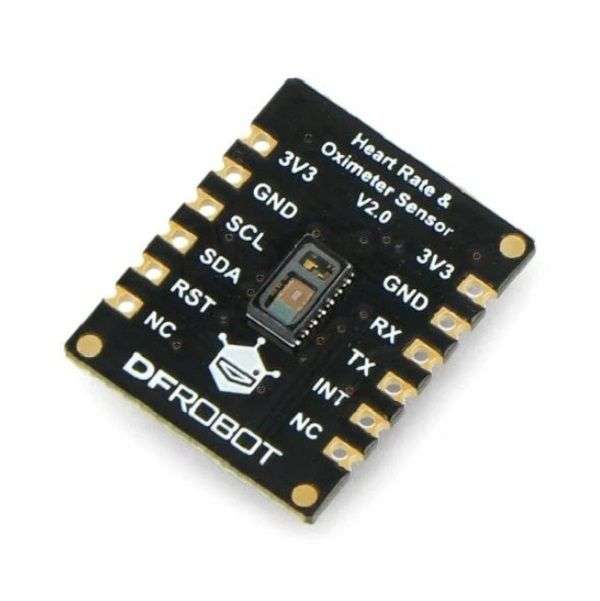

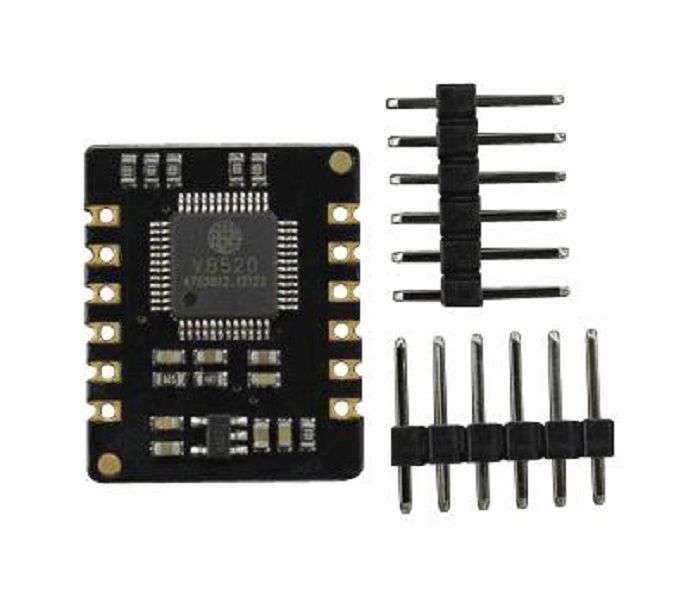

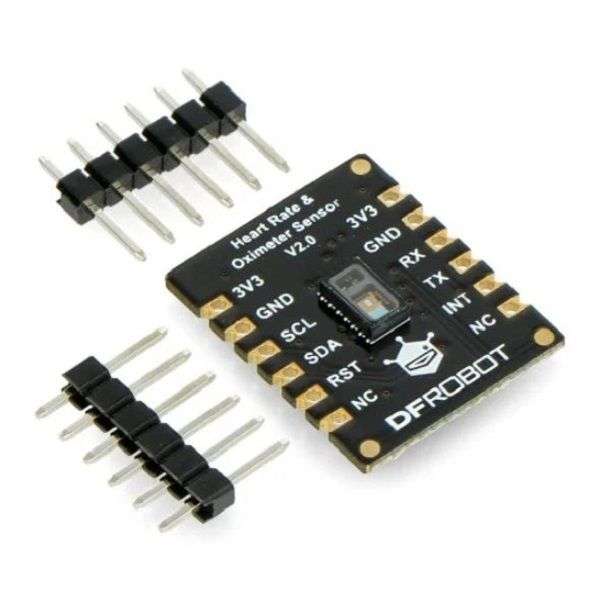

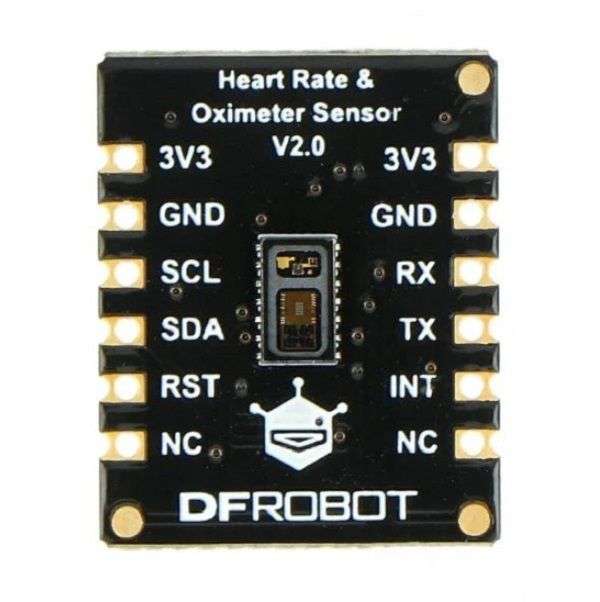

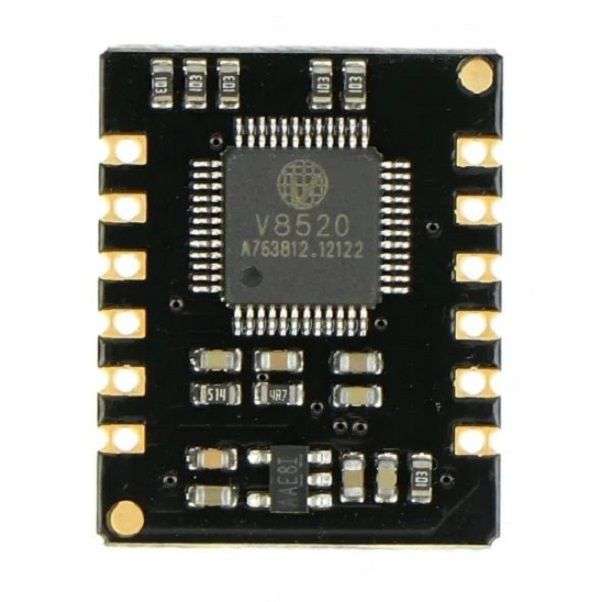

DFRobot (SEN0344) Sensor Module, MAX30102, Heart Rate and Oximeter

SEN0344 is a Fermion: MAX30102 heart rate and oximeter sensor V2.0. The DFRobotheart rate and oximeter sensor integrates the Analog DevicesMAX30102 chip and anMCU with heart rate and oximetry algorithm. The MAX30102 uses PPG(PhotoPlethysmography) to measure data, which will be converted into heart rate andoximetry values when processed by the MCU, then output through I2C or UART,making the sensor easy to use and greatly reducing resource occupation of maincontroller. Meanwhile, the corresponding upper computer is provided to allow youto conveniently read data by a PC. Typical applications include heart rate bloodoxygen project, home heart rate oximeter and long-term heart rate and bloodoxygen monitoring project.Specifications:- Product Range: Fermion Series- Microcontroller with integrated algorithm- Data can be read directly through the host computer- Dimension is18 x 22mm
