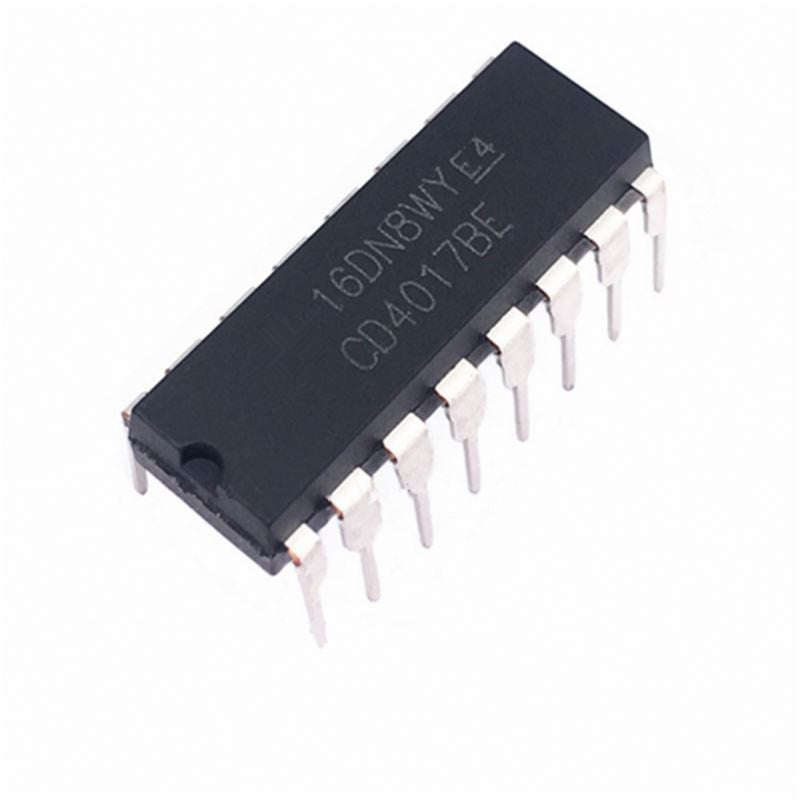

Digital Counter CD4017BE

Digital counters are commonly used in digital circuits that need to make use of a high-level output for one full clock cycle. This specific digital counter has 10 output pins that each gives a high output after the previous pin switches to a low output. Below is a time diagram that shows the output signals on the various pins as the clock counts up.

Technical specifications:

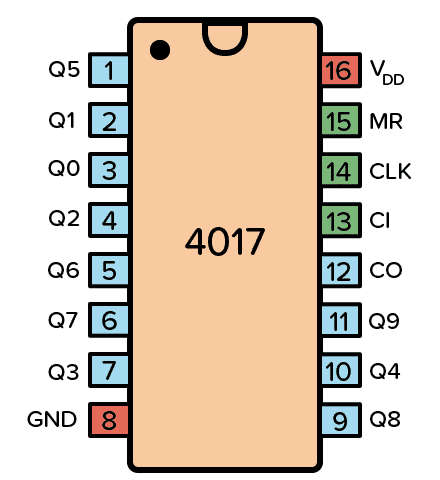

Pin layout:

Timing diagram:

As you can see in the diagram above, each output pin switches on after the previous pin switches off after the clock has completed one full cycle.

Extra resources:

Datasheet for CD4017BE
