Digital Durometer Shore Hardness Tester High Precision with Automatic Zero Function Por... (TYPE: C)

20 available / new

R718.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3508

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643377624

SELECTED OPTION:
TYPE: C

Description:
The Shore Rubber Hardness Tester is an instrument for measuring the hardness of vulcanized rubber and plastic products. The instrument has three types: Type A, Type D and Type C Type A and Type D are respectively suitable for testing low and medium hardness and high hardness materials. Type C is suitable for testing the hardness of microporous materials for shoes made with a combination of rubber and plastic when the compression is 50% and the stress is above 0.049MPa. The plastic contains foaming agent.
Features:
Type A is suitable for general rubber, synthetic rubber, soft rubber, polycarbonate, leather, wax, etc. Type C is suitable for microporous materials made of crispy and crisp, plastic containing foaming agent Type D is suitable for general hard rubber, resin, acrylic, glass, thermoplastic rubber, printing plate, fiber, etc.
Specification:
Dial value: 0-100 degrees Needle stroke: 0-2.5mm Pressure at the needle end: A/C type 0.55N-8.06N, D type 0-44.5N
Instructions: Place the sample on a solid surface and hold the hardness tester. The indenter should be at least 12mm away from the edge of the sample. Press the indenter firmly on the sample and press the indenter vertically into the sample until the indenter is completely Reading within 1S upon contact. Test the hardness value 5 times at different positions with a distance of at least 6mm between the measuring points, and take the average value (the distance between the measuring points of the microporous material is at least 15mm). In order to stabilize the test conditions and improve the accuracy of the test, the hardness tester should be installed on the measuring rack of the same model produced in the supporting production.
Package includes:
1 x DigitalShoreDurometer(Battery not included)

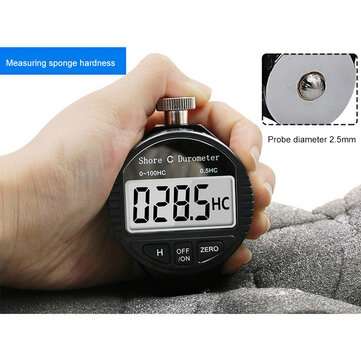

Details picture:
